Panel Mount Bulkheads

Name: Panel Mount Bulkheads
Brand: Nanjing Runze Fluid Control Equipment Co., LTD.

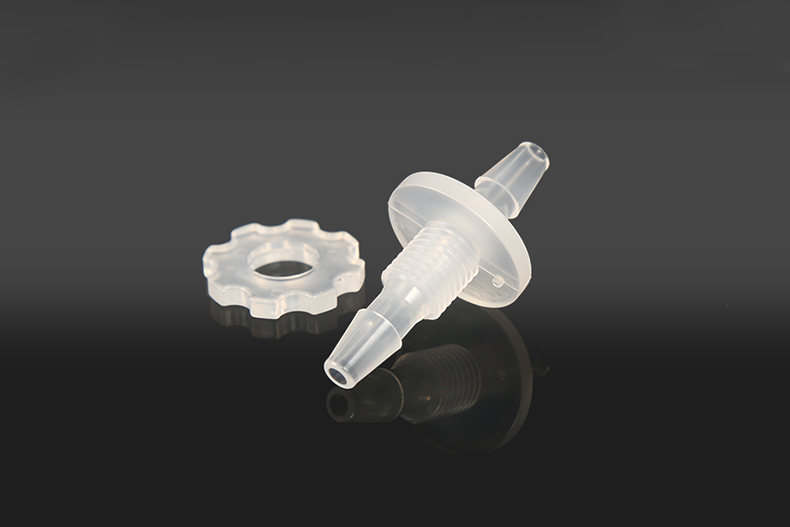

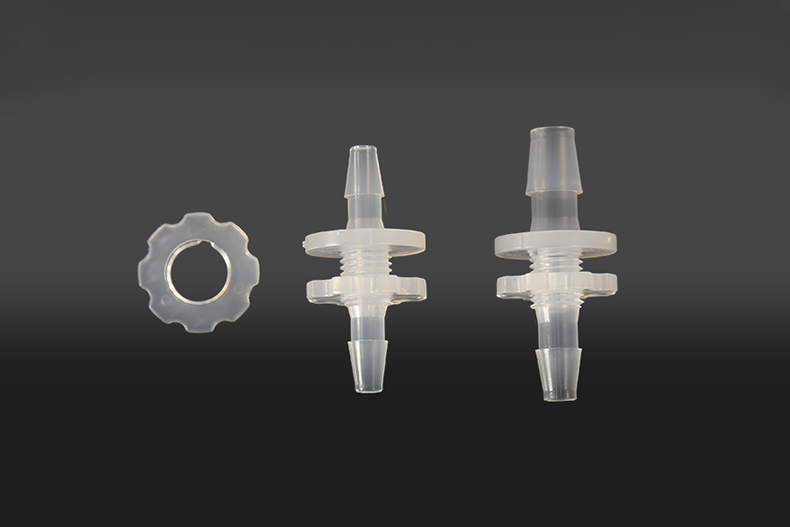

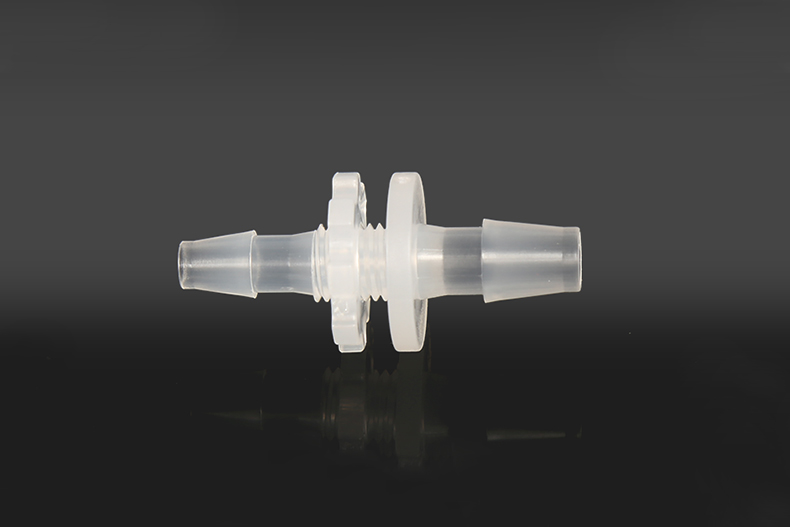

Panel mount bulkheads are made of medical-grade polypropylene and comprise two pieces of fittings, the main bulkhead part and the fixing stator. This tube fitting is widely used for connecting flexible tubing through metal, plastic, acrylic or wooden instrumental housing to transfer fluid or air from one side to another.

Send Mail

Video of Panel Mount Bulkheads

What is a panel-mount bulkhead?

Panel mount bulkheads are formed by an elongated S-shaped cross-section and an axial passage extending from top to bottom. The Panel mount bulkheads are joined by tenon in mortise joints, preferably via a spade-shaped tenon. The assembly is capped with a channel to position and strengthen the upper ends of the panels. A stake positioned through the passage and into the earth also secures the panels. The panels are positioned by water flow through the passage during the sinking process. Soil stabilization chemicals can also be introduced through the passage. A nozzle for the lower end of the passage is also disclosed. Panel mount bulkheads are made of medical-grade polypropylene and comprise two pieces of fittings, the main bulkhead part, and the fixing pieces.

What are panel mount bulkheads used for?

Panel mount bulkheads are used to mount RF connectors and waveguide pipe penetrations which cause less impact on the shielding performance. RUNZE FLUID produces barbed panel mount bulkheads mainly in natural PP material in multiple sizes. RUNZE FLUID is dedicated to manufacturing bulkhead connector panels of almost any size. For situations where complex hole layouts or connector positions are critical, RUNZE FLUID can use precise processing tools to process punch patterns to perfectly meet customer requirements.

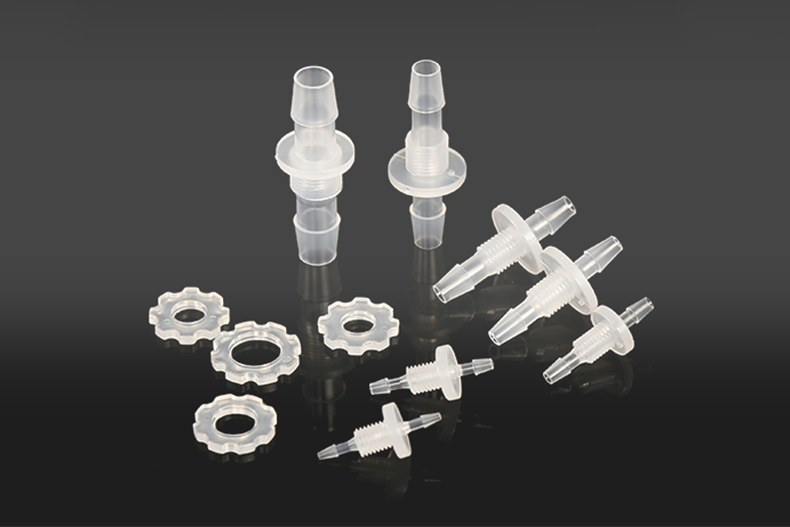

Barbed Panel Mount Bulkheads Features

* Barbed bulkhead union for hose connection

* Anti-slip and catch-edge design for no leakage

* Imported raw material, non-toxic, tasteless, heat and corrosion resistant.

* PP material is widely used in biomedical, environmental protection and food industries

Specification of Panel Mount Bulkheads

Equal Bulkheads
Model No.	Material/Color	Thread Length (mm)	Male Thread	Female Stator	Tubing ID (mm)
DC-016-1/4-28-016P	Natural PP (Medical Grade)	7.6	1/4-28UNF	1/4-28UNF	1.0-1.6
DC-024-1/4-28-024P		7.7			1.6-2.4
DC-032-1/4-28-032P		7.7			2.4-3.2
DC-040-M8-040P		8.0	M8	M8	3.2-4.0
DC-048-M8-048P			M8	M8	4.0-4.8
DC-064-M10-064P			M10	M10	4.8-6.4
DC-087-M12-087P			M12	M12	6.4-8.7

Reducing Bulkheads
Model No.	Material/Color	Thread Length (mm)	Male Thread	Female Stator	Tubing ID (mm)
BC-016-1/4-28-024P	Natural PP (Medical Grade)	7.7	1/4-28UNF	1/4-28UNF	(1.0-1.6)*(1.6-2.4)
BC-016-1/4-28-032P		7.6			(1.0-1.6)*(2.4-3.2)
BC-024-1/4-28-032P		7.6			(1.6-2.4)*(2.4-3.2)
BC-024-1/4-28-048P		7.7			(1.6-2.4)*(4.0-4.8)
BC-032-1/4-28-048P					(2.4-3.2)*(4.0-4.8)
BC-032-1/4-28-064P					(2.4-3.2)*(4.8-6.4)
BC-048-M8-064P		8.0	M8	M8	(4.0-4.8)*(4.8-6.4)
BC-064-M10-087P			M10	M10	(4.8-6.4)*(6.4-8.7)
BC-064-M10-127P			M10	M10	(4.8-6.4)*(8.7-12.7)
BC-087-M12-127P			M12	M12	(6.4-8.7)*(8.7-12.7）

Note:

* PP material Panel mount bulkheads are in stock, PTFE material need to be customized with MOQ at least 2000 pieces per model, other materials can be customized with MOQ at least 5000 pieces per model, please consult customer service for more information.

Dimension (unit: mm) of Panel Mount Bulkheads

Barbed Bulkhead Union

* Standard nut for panel mount bulkheads adapter is LM-M10P/LM-M12P single tooth nut, but M10*1/M12*1 nut (pps material ) is also available for purchase, which is easier for installation.M10*1/M12*1 Nut for optional choose , which is easier to installation.

Equal Panel Mount bulkheads
