Syringe Pump Microfluidics

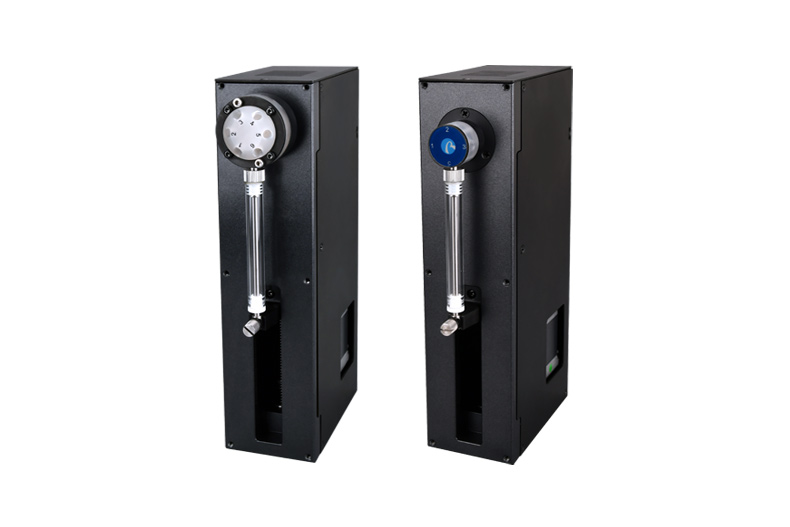

SY-03B microfluidics syringe pump works for continuous liquid delivering from microliters to milliliters in very high accuracy. The electric syringe pump can provide syringe varies from 25μL to 50ml while valve from 3 port to 15 ports in different flow configurations to meet a variety of applications. RS232/RS485/CAN communication programs make it possible to realize many different flow dispensing requirements.

  • Syringe Pump Microfluidics
  • Syringe Pump Microfluidics
  • Syringe Pump Microfluidics
  • Syringe Pump Microfluidics
  • Syringe Pump Microfluidics
  • Syringe Pump Microfluidics
  • Syringe Pump Microfluidics
  • Syringe Pump Microfluidics
  • Syringe Pump Microfluidics
  • Syringe Pump Microfluidics

Video of Syringe Pump Microfluidics

Model Numbers of Syringe Pump Microfluidics


SY-03B is a micro-syringe pump with extraordinary-precision in the series of high-end products developed by Runze Fluid. Accommodates distribution valves and syringes in a variety of configurations. Transfers liquid in high precision which can meet most users' requirements. Can be used in series with multiple pumps.Fully programmable pump module with open framework, which handling fluids from microliters to milliliters with extraordinary accuracy and precision. With functions in automatic pipetting, dilution and dispensing. Controlled by an external computer or microprocessor.



Specification of Syringe Pump Microfluidics


Accuracy≤1%@100% stroke
Precision (Repeatability)0.3%~0.5%@100% stroke
Rated stroke (control steps)60mm(6000 steps standard mode; 48000 steps micro-step mode)
RPM Range0.1rpm ~600rpm
Linear speed0.01mm/s ~ 60mm/s(media: water ; 1 rated stroke=one time)
Running time (per rated stroke)1s ~ 6000s(media: water ; 1 rated stroke=one time)
Resolution0.01mm (per step)
ILS Syringe25μl, 50μl, 100μl, 250μl, 500μl, 1ml, 2.5ml, 5ml, 10ml, 25ml
Valve Model(available)M01、M02、M03、M04、M05、M06、M07、M08、M09、M10
Wetted materialBorosilicate glass, PTFE, Sapphire, PCTFE
Max. Pressure Rating0.7Mpa
ActuatorTrapezoidal screw (Lead 6mm/1mm)
Connection1/4-28UNF
Baud rateRS232/RS485: 9600bps, 38400bps
Communication addresUp to 15 individual addresses can be provided
FirmwareProgrammable acceleration/deceleration, termination of movement, programmable piston speed, diagnostic query error, programmable clearance compensation, absolute position or relative position, change speed on the fly, programmable Non-Volatile Memory
Power supplyDC24V/3A
Max Power 35W
Operating temperature5℃~55℃
Operating humidity<80% relative humidity, non-condensing
Dimension (L*W*H)65*145.5*253.3mm
Net weight2.2kg




Valve Options of Syringe Pump Microfluidics


Syringe Pump Microfluidics



Syringe Pump Microfluidics
