SY-03B T-DK 8-Channel Micro Syringe Pump

Product Overview

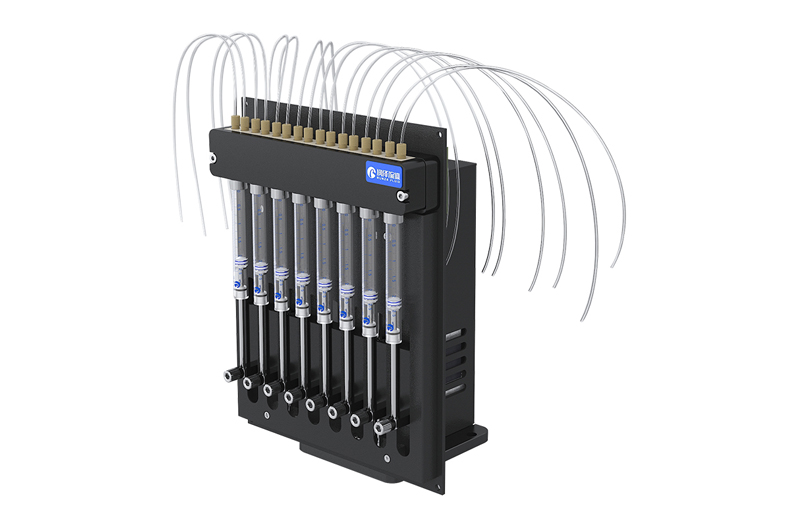

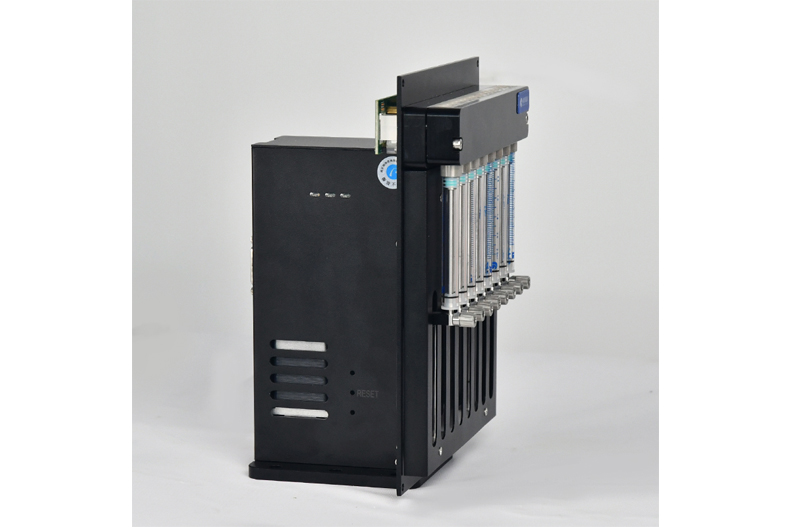

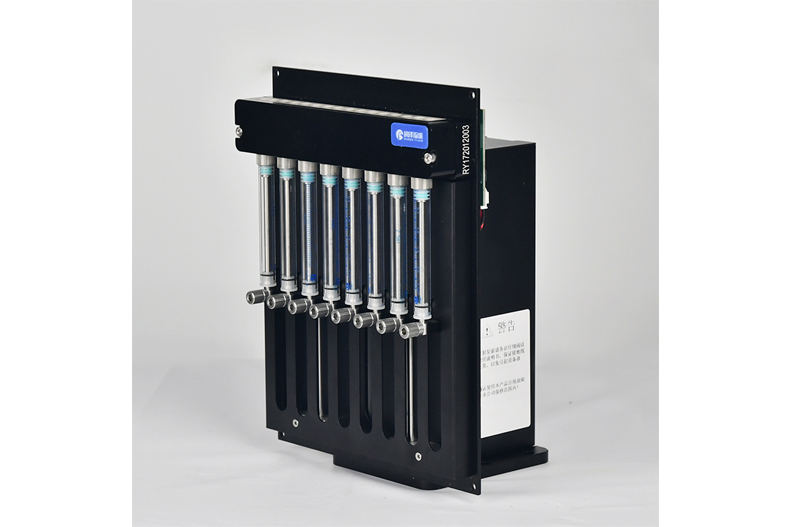

The SY-03B T-DK is a high-precision parallel syringe pump module designed for automated liquid handling applications.

Featuring eight independently controlled solenoid valve channels, this module enables precise aspiration, dispensing, and fluid switching operations within compact automated systems.

With nanoliter-level liquid control capability, programmable motion control, and multiple communication interfaces, it provides a reliable fluid handling solution for analytical instruments, medical devices, and laboratory automation platforms.

Key Features

• Independent 8-channel liquid control

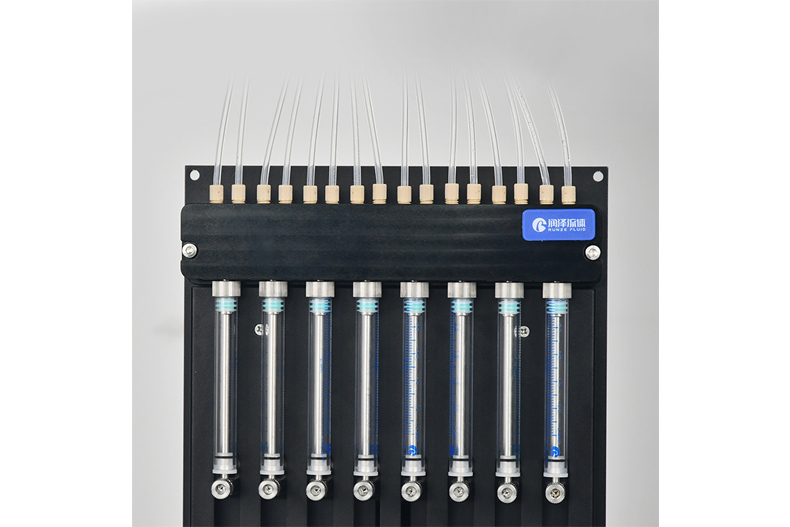

Eight syringe channels operate independently with dedicated solenoid valves.

• High precision micro dispensing
Liquid volume accuracy ≤1%, repeatability error 0.3%-0.5%, control resolution 0.01 mm/step.

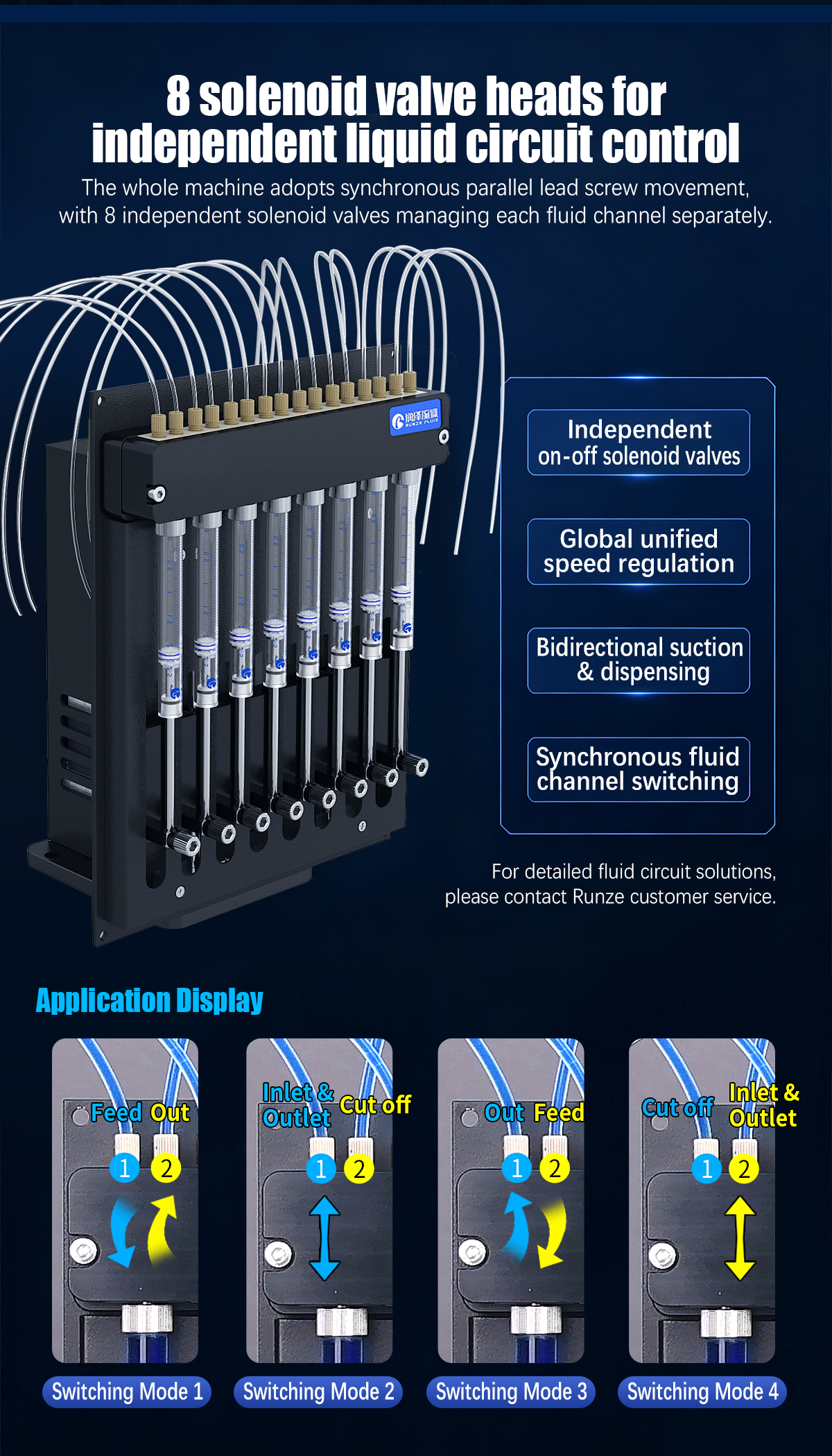

• Integrated solenoid valve switching
Supports aspiration, dispensing, fluid path switching, and sample transfer.

• Easy automation integration
Supports RS232, RS485 and CAN communication with ASCII and Modbus protocols.

• Compact modular design

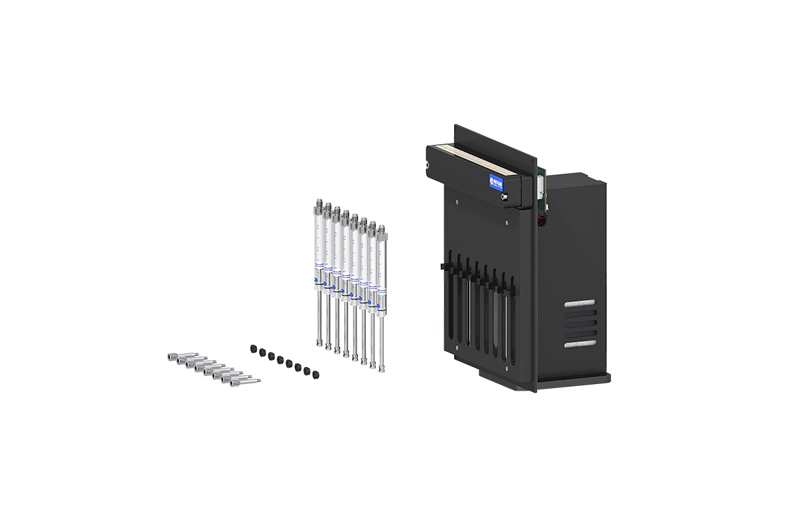

Integrated drive mechanism, syringe assembly, valve module and control electronics.

Applications

• IVD diagnostic systems
• Reagent dispensing systems
• Laboratory automation equipment
• Microfluidic platforms
• Automated sampling systems
• Chromatography and analytical instruments
• Biochemical analyzers

Technical Specifications

Model: SY-03B T-DK
Channels: 8 independent channels
Syringe Volume: 50μL / 100μL / 250μL / 500μL / 1mL / 2.5mL / 5mL
Liquid Accuracy: ≤1%
Repeatability: 0.3%-0.5%
Rated Stroke: 60 mm
Control Resolution: 0.01 mm/step
Maximum Speed: 900 rpm
Linear Speed: 0.01 mm/s - 60 mm/s
Valve Type: 3-way solenoid valve
Maximum Pressure: 0.15 MPa
Communication: RS232 / RS485 / CAN
Protocol: ASCII / Modbus
Power Supply: DC24V / 3A
Operating Temperature: 5℃-55℃
Humidity:<80% RH non-condensing
Wetted Materials: Borosilicate glass, PTFE, FKM, PPS, PEEK
Connection: 1/4-28UNF internal thread

Dimensions

Overall dimension:
Width: 187 mm
Height: 254 mm
Depth: 117.5 mm

Mounting holes: 4 × Φ4.5 mm

Image SEO Naming

Recommended image names:

OEM Positioning

Runze provides OEM syringe pump modules with customized channels, stroke length, communication protocols and mechanical integration for IVD, laboratory automation and analytical instrument manufacturers.
