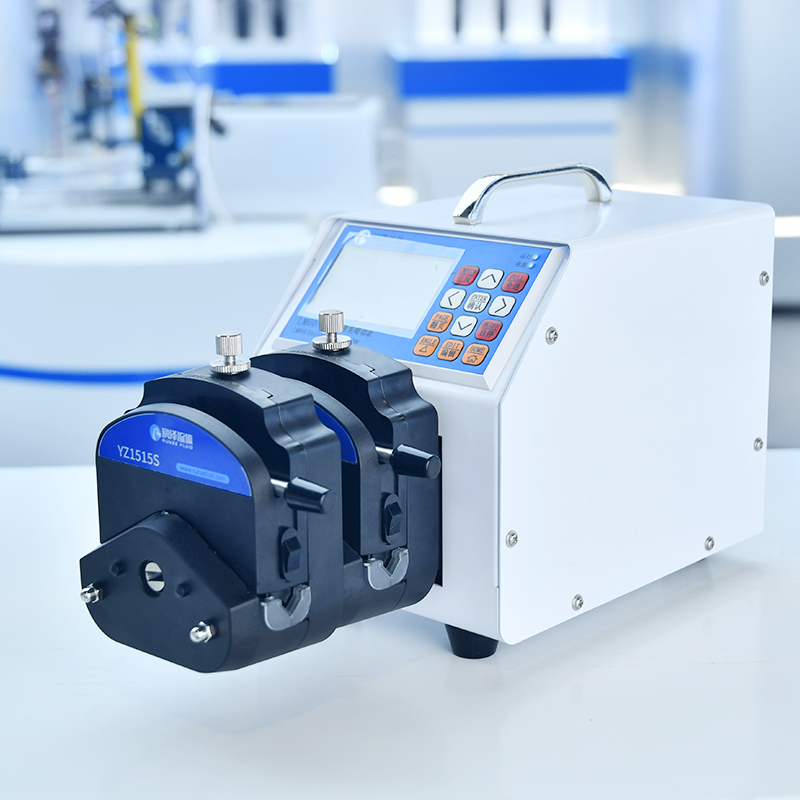

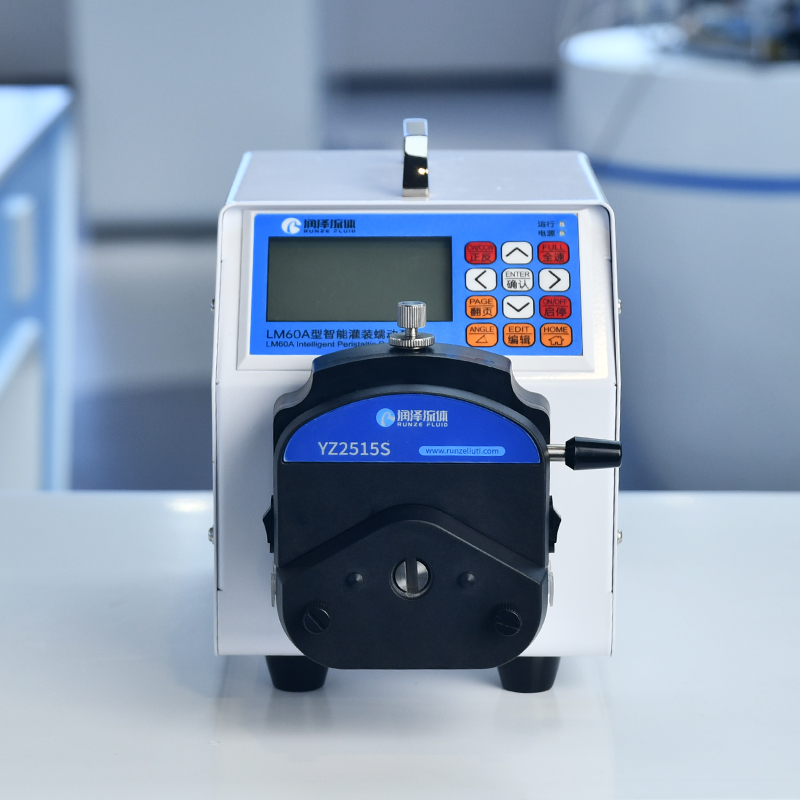

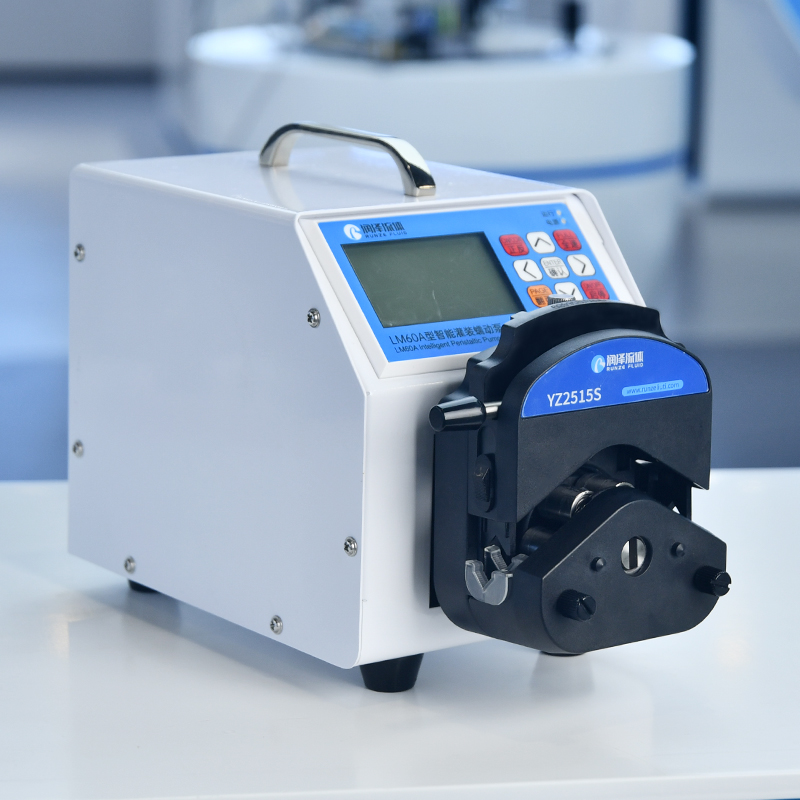

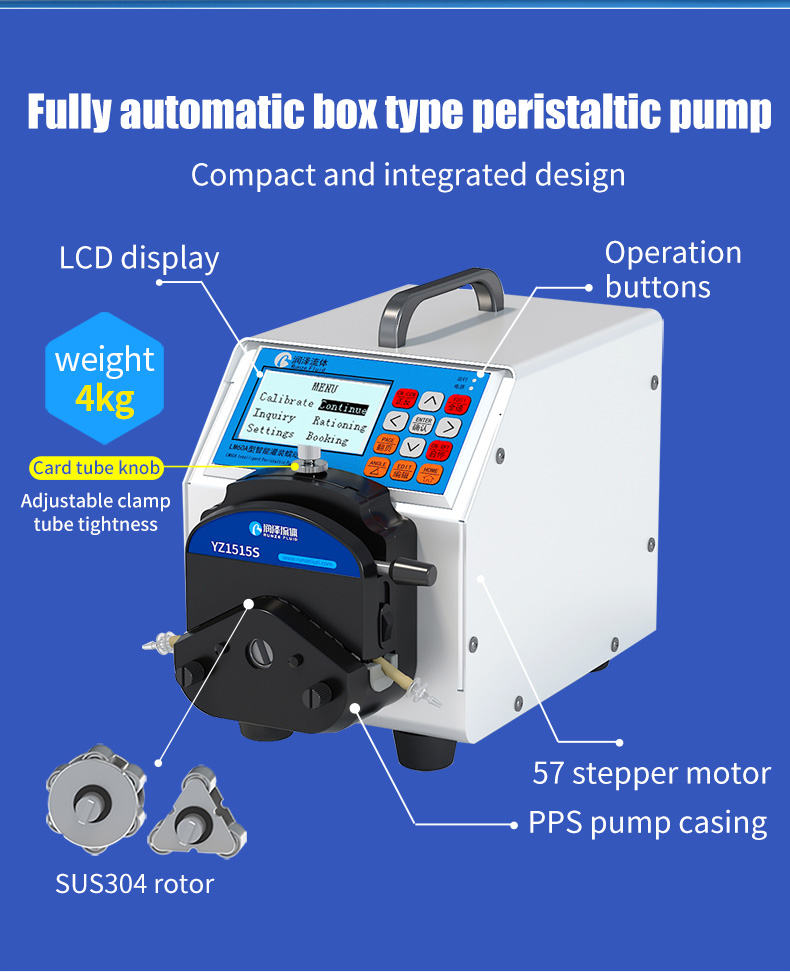

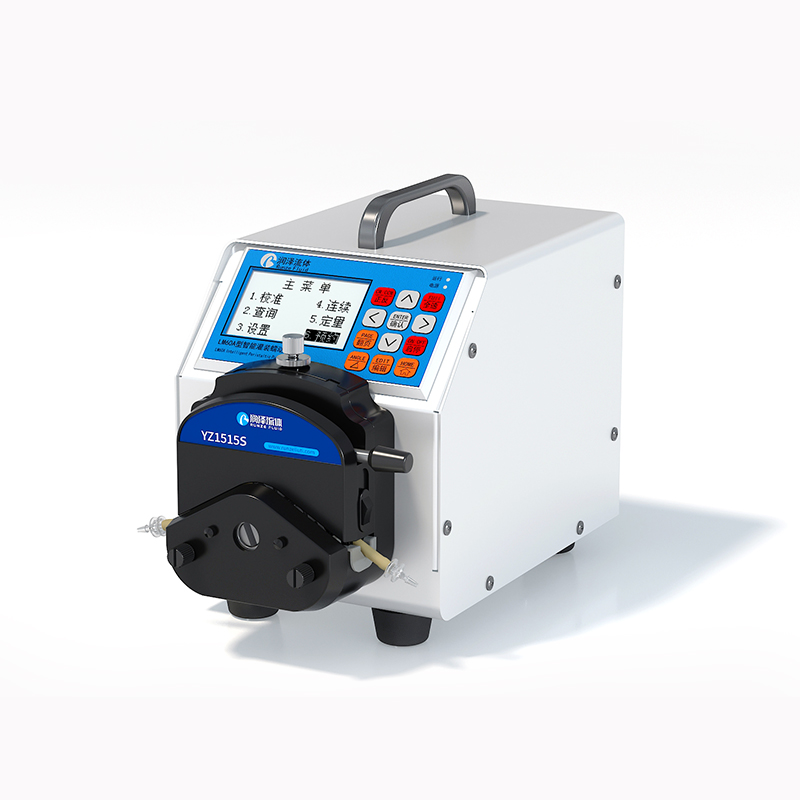

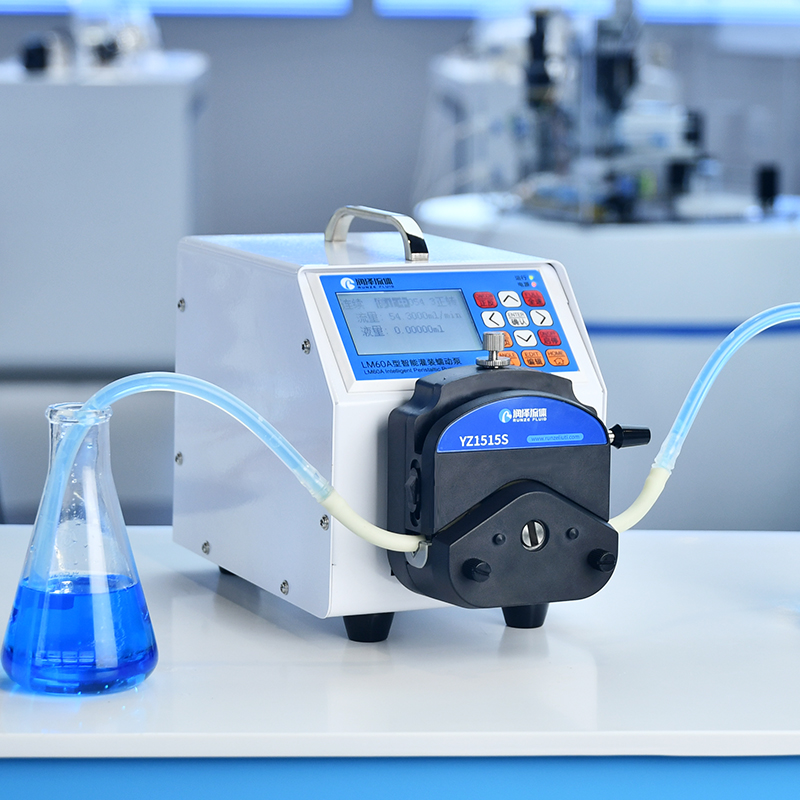

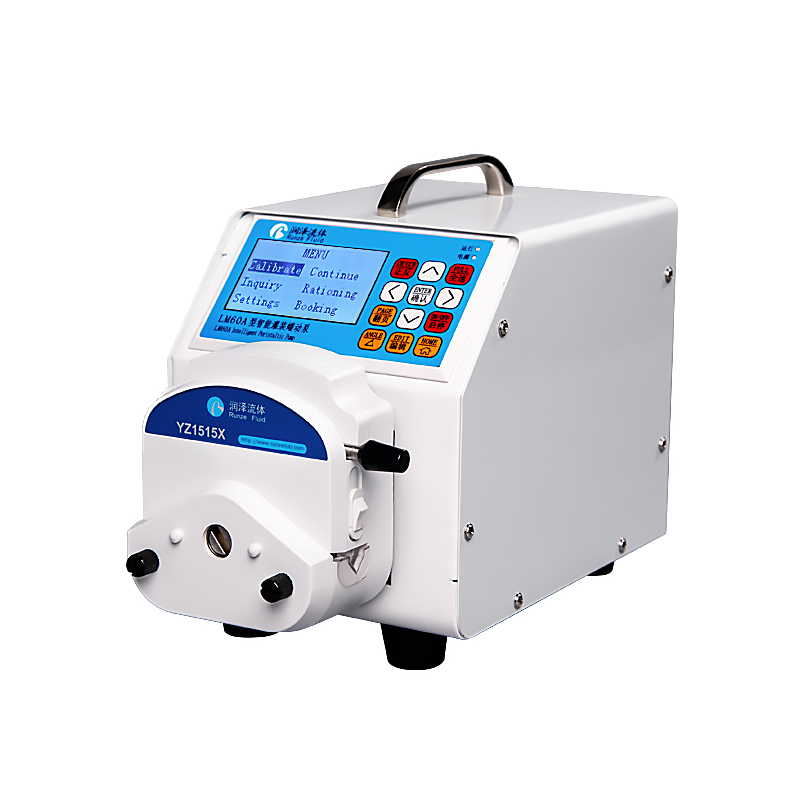

Peristaltic Metering Pump

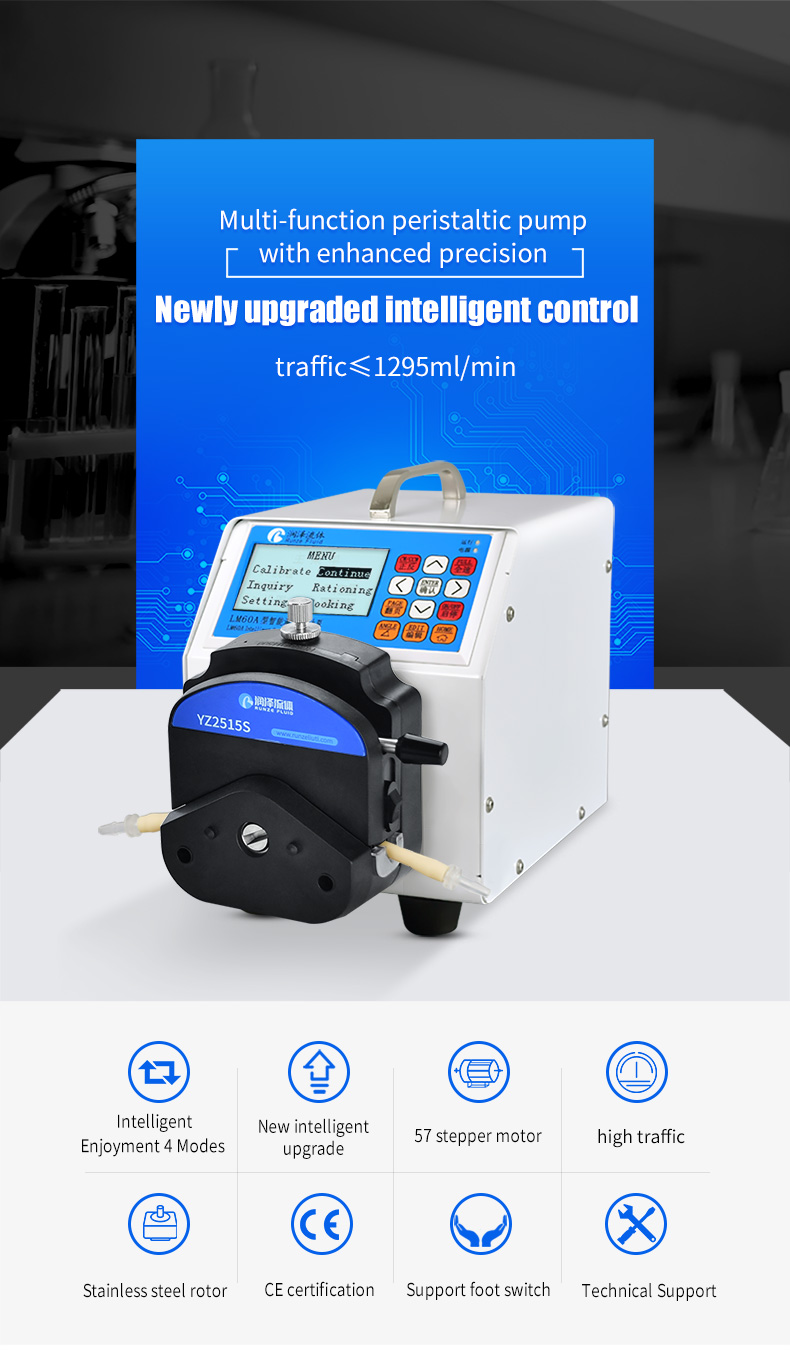

The peristaltic metering pump is an intelligent digital precision peristaltic pump that is able to preset dispensing volume, dispensing time, cycle times, waiting time to process a regular filling procedures, LED screen will show some important parameters of what pump is working on, foot pedals are optional to freedom your hands in labs or surgeries.

  • digital peristaltic pump
  • lab peristaltic pump
  • laboratory peristaltic pump
  • peristaltic liquid pump
  • peristaltic pump supplier
  • digital peristaltic pump
  • lab peristaltic pump
  • laboratory peristaltic pump
  • peristaltic liquid pump
  • peristaltic pump supplier

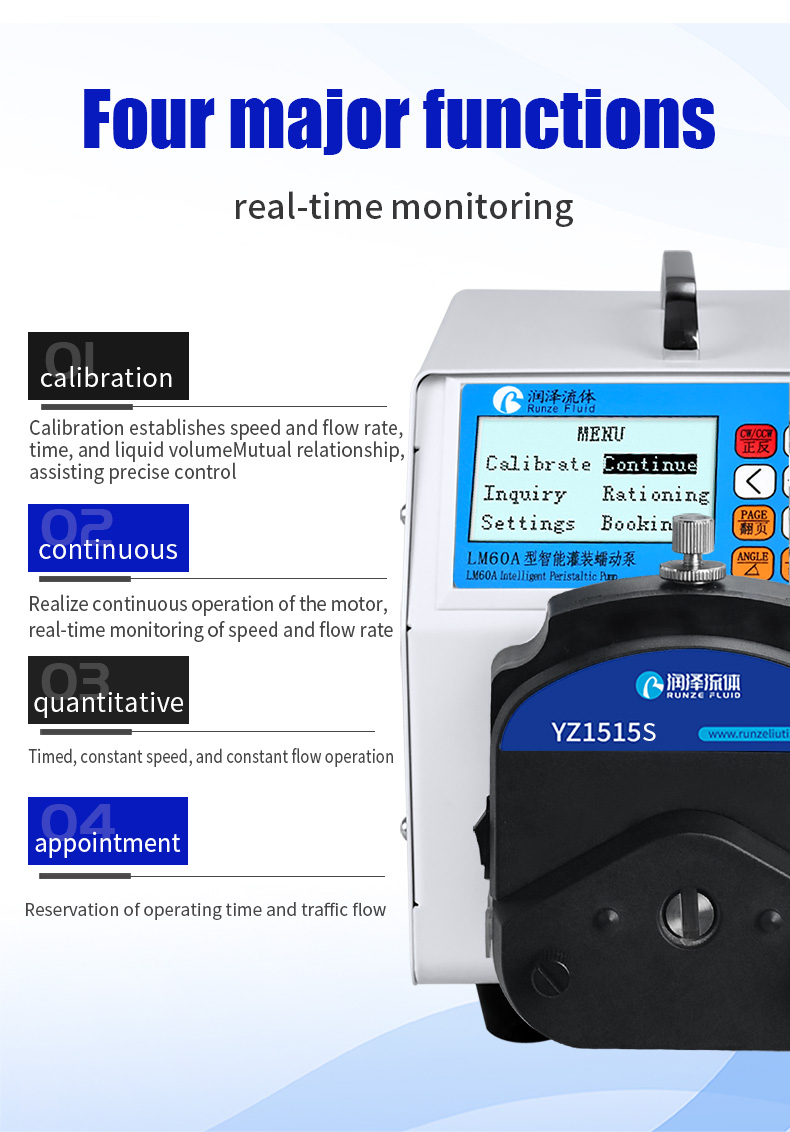

Metering Mode of Peristaltic Tubing of Peristaltic Metering Pump

a. Continuous mode - For continuous liquid transfer with no specific requirements

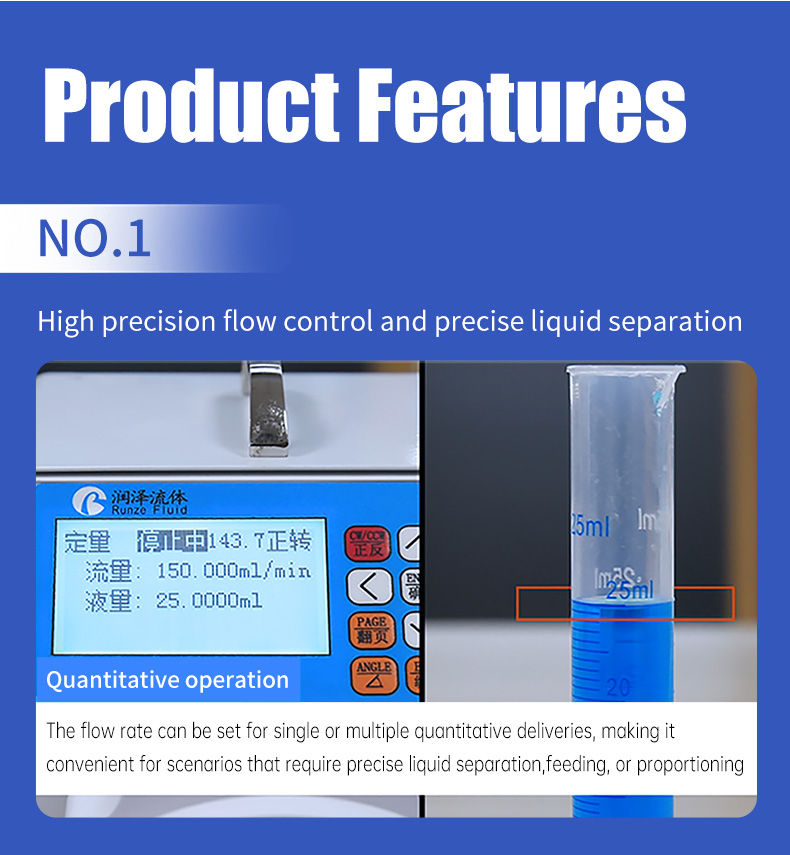

b. Rationing Mode - Realize one-off liquid dispensing in a specific volume

c. Booking Mode - Realize liquid dispensing in a specific volume at N times

d. Calibration Mode - Proceed calibration model before starting any other working model to ensure high accuracy of the test result

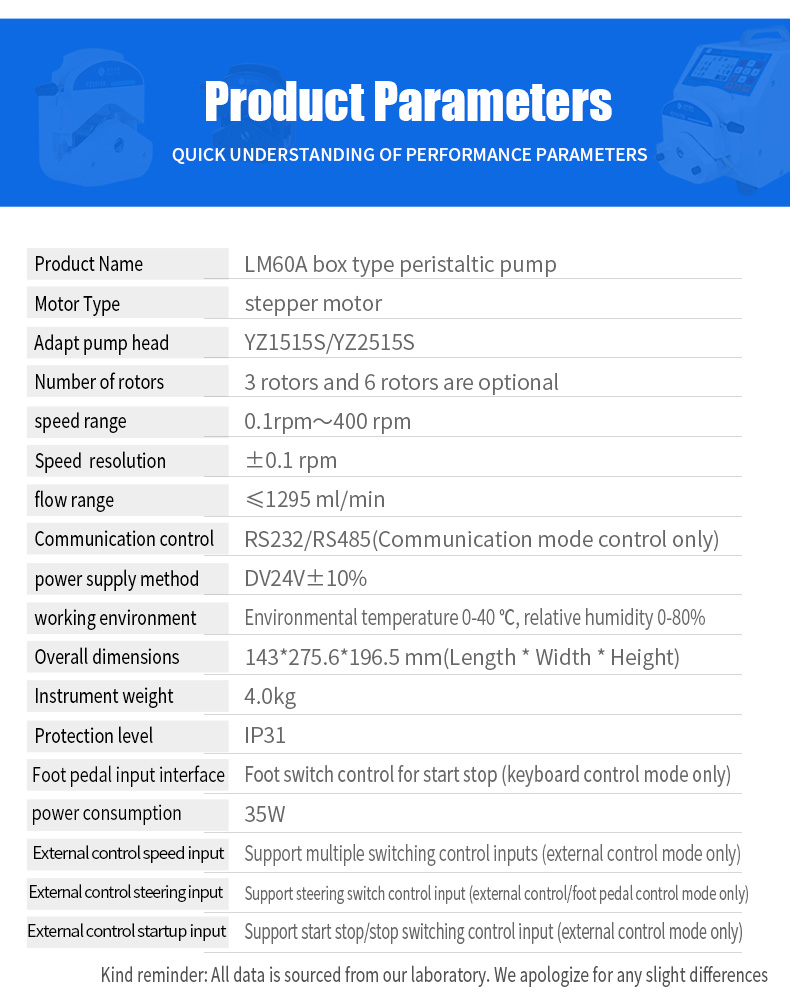

Specification of Peristaltic Tubing of Peristaltic Metering Pump


Product name

LM60A/LM60B Intelligent Peristaltic Pump

Language

Chinese/English

Pump head

LM60A: YZ1515X/YZ2515X/SN15/SN25;

LM60B: RZ1030-4

Motor type

Stepper motor

Pump Roller

YZ/SN: SST 3 rollers/6 rollers

1030-4: 4rollers

Speed range

0.1-400rpm, reversible

Speed resolution

0.1rpm

Flow range

LM60A: 0.027-1385ml/min

LM60B: 0-161ml/min

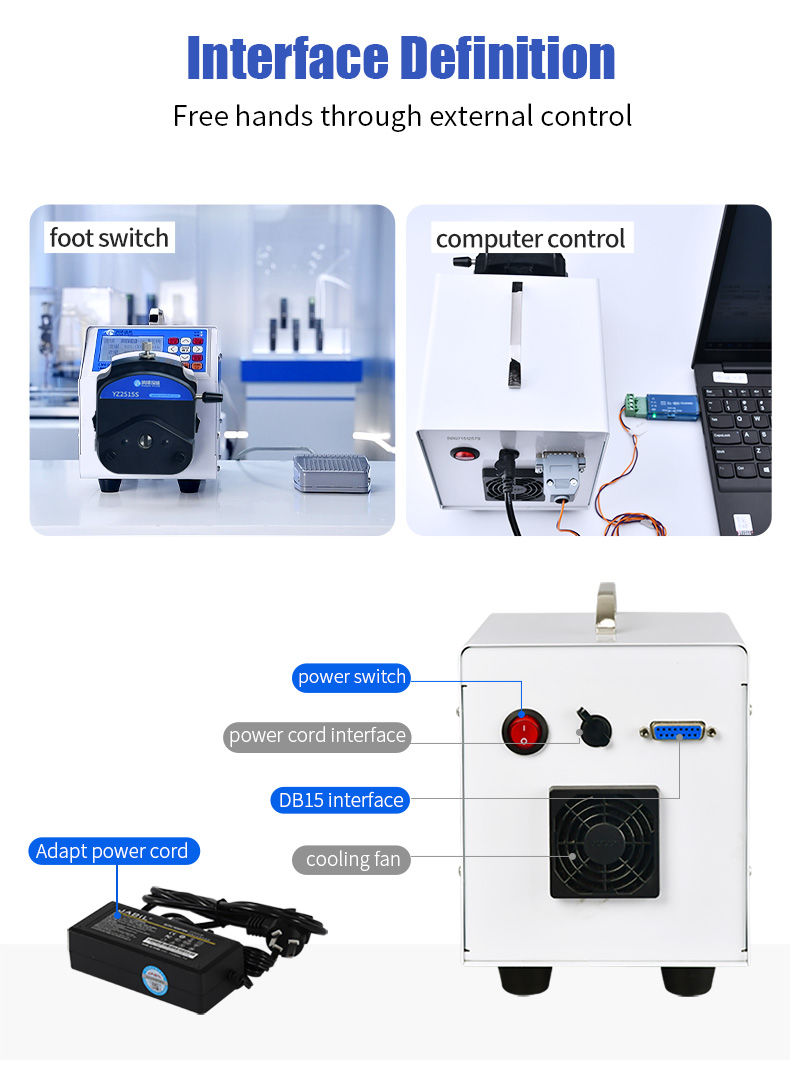

External control

Foot pedal, RS232, RS485

Working mode

calibration mode, continuous mode,

metering mode, booking mode

Latency time

0-999999s

Dispensing volume

Pre-settable

Dispensing time

Pre-settable

Interval time

0-999999s Pre-settable

Full speed

One button to make it full speed (filling or empty)

Power supply

AC100-240V, 50/60Hz

Maximum power

LM60A: 35W

LM60B: 20W

Working temperature

0-40℃

Working humidity

<80%RH relative humidity, non-condensing

Protection grade

IP31

Ne weight

LM60A: 3.5kg

LM60B: 1.45kg


Three Types of Peristaltic Tubing of Peristaltic Metering Pump



Material

Features

Service Life

Peristaltic Metering Pump

Silicone

Food grade, High flexibility         Temp. range -4℃ - +180℃       For non-corrosive liquid

≥200h

Peristaltic Metering Pump

Pharmed BPT

Saint-Gobain, FDA standard     Temp. range -51℃- +132℃           Anti weak acid and alkali

≥1000h

Peristaltic Metering Pump

Viton

MasterFlex, FDA Standard       Temp. range -20℃- +260℃      Anti strong acid and alkali

≥1000h


1. Tubing life measured by pumping pure water under continuous working at the room temperature 20℃ and no extra pressure until it cracks.

2. Tubing life vary from different medium, motor speed, working environment, the lower motor speed helps to extend the service life of tubing.

3. Please replace new pump tube regularly to achieve higher precision liquid transfer.

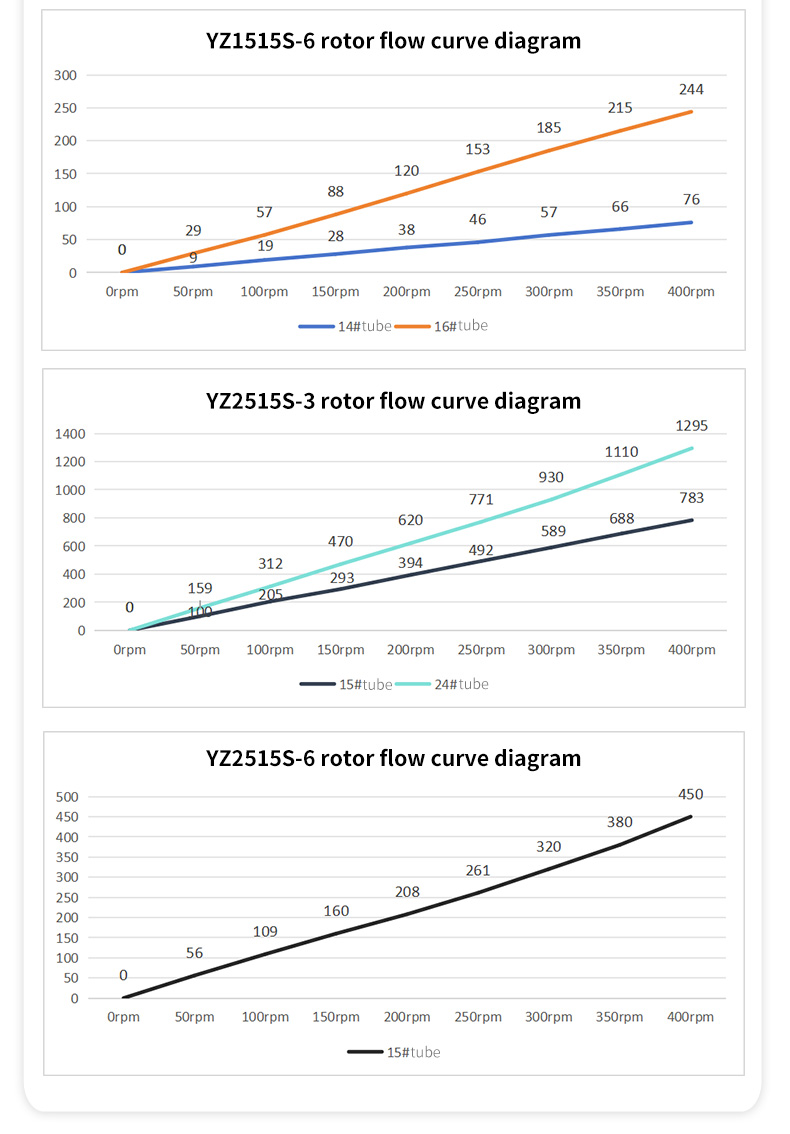

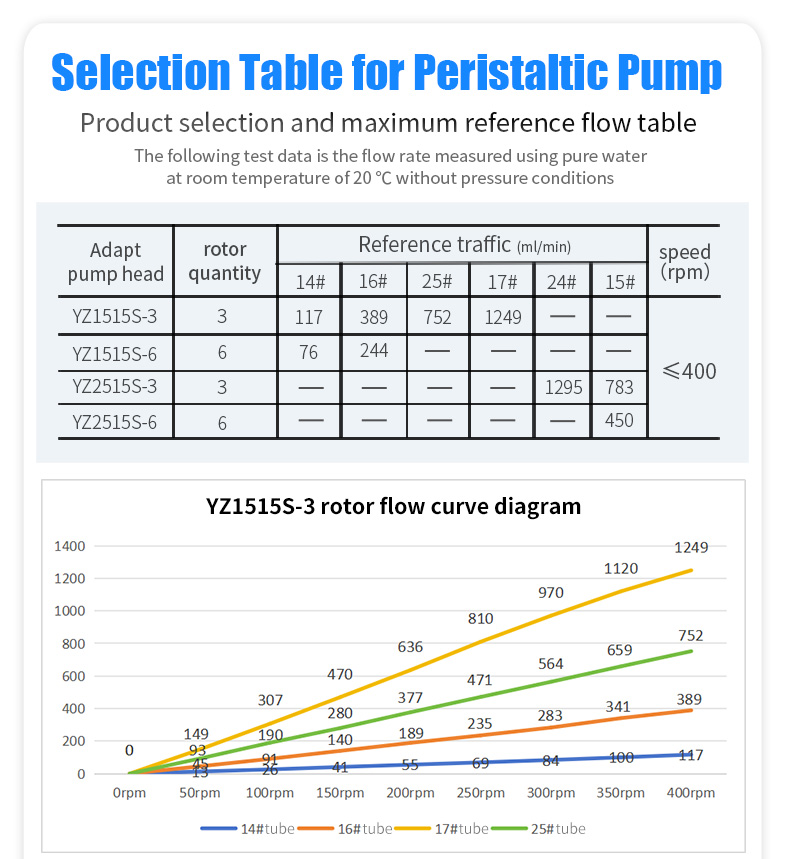

LM60A Flow Rate Instruction (Media: water)


Model No.

Color

Rollers

Tubing

Maximum Flow Rate

LM60A-YZ1515X-3B

White

3

#14 #16 #25 #17

1385ml/min (400rpm)

LM60A-YZ1515X-3H

Black

LM60A-YZ1515X-6B

White

6

#14 #16

265ml/min (400rpm)

LM60A-YZ1515X-6H

Black

LM60A-YZ2515X-3B

White

3

#15 #24

747ml/min (400rpm)

LM60A-YZ2515X-3H

Black

LM60A-SN15-3


Transparent

3

#14 #16 #25 #17

1097ml/min (300rpm)

LM60A-SN15-6

6

#14 #16

180ml/min (300rpm)

LM60A-SN25-3

3

#15

750ml/min (300rpm)


LM60B Flow Rate Instruction (Media: water)


Model No.

Color

Rollers

Tubing

Maximum Flow Rate



LM60B-RZ1030-4



Black



4


ID0.64-3.0mm

WT0.8-1.0mm

OD≤5.0mm

125ml/min

(ID2.54*WT0.8mm rubber tube)

145ml/min

(ID2.79*WT0.8mm rubber tube)

161ml/min

(ID3.0*WT1.0mm silicone tube)

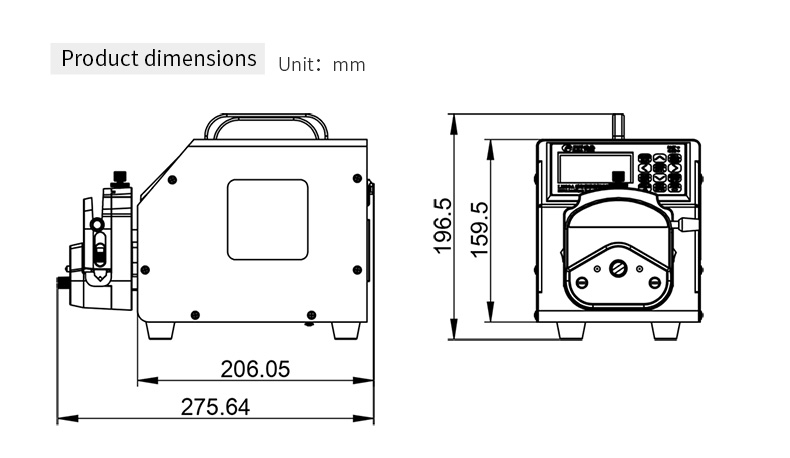

Dimension (unit: mm)


Peristaltic Metering Pump
