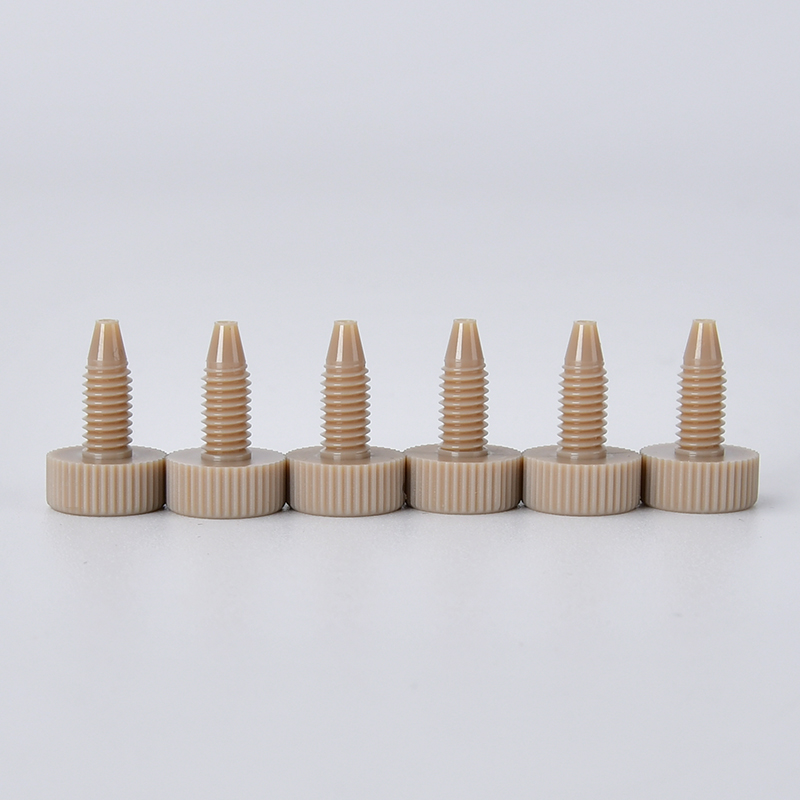

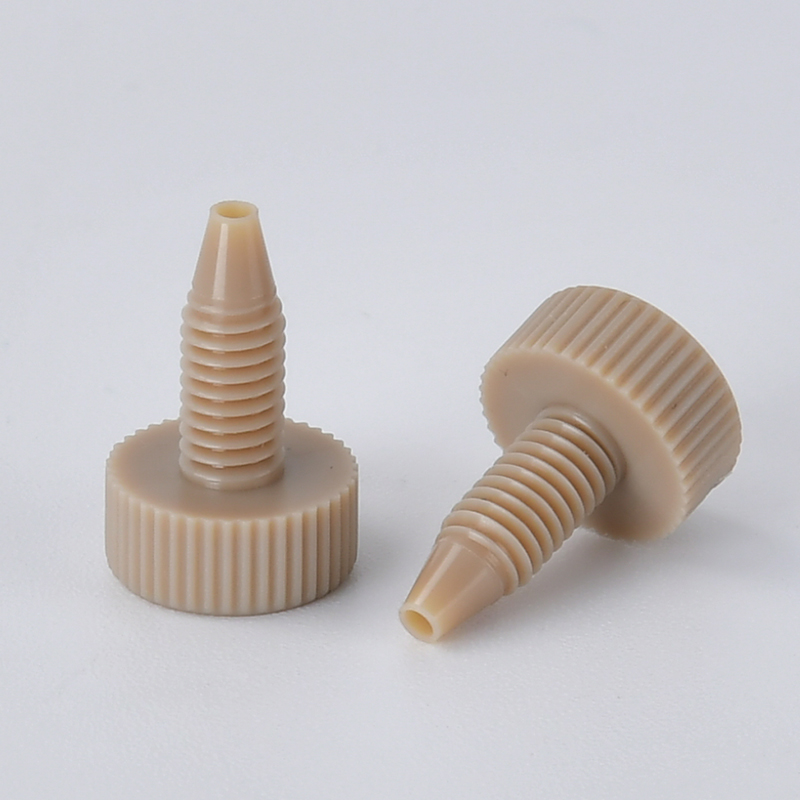

PEEK One-Piece Fittings

PEEK One-Piece Fittings are manufactured with standard knurl for 1/16" OD tubing used in 10-32 coned ports at wide temperature range -100°C~+250°C and higher pressure than common PEEK flangeless fittings.

  • Super Flangeless Fittings
  • Super Flangeless Fittings
  • Super Flangeless Fittings
  • Super Flangeless Fittings
  • Super Flangeless Fittings
  • Super Flangeless Fittings
  • Super Flangeless Fittings
  • Super Flangeless Fittings
  • Super Flangeless Fittings
  • Super Flangeless Fittings
  • Super Flangeless Fittings
  • Super Flangeless Fittings
Send Mail
Share this product:

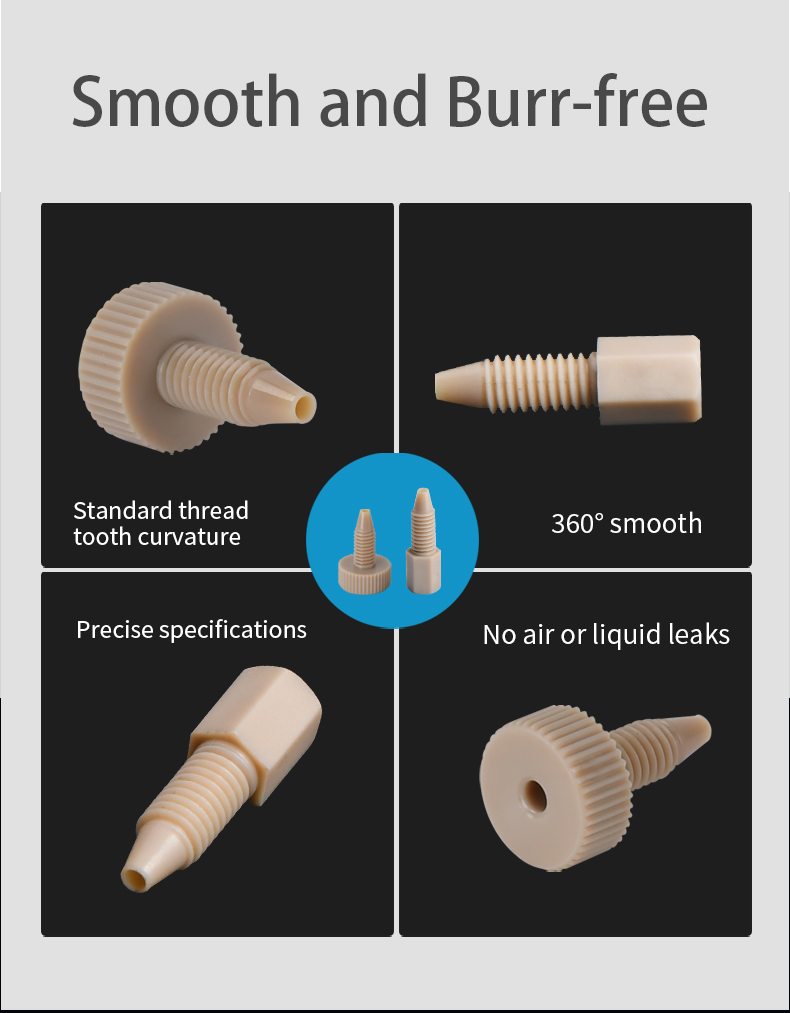

PEEK One-Piece Fittings Features at-a-Glance

  • PEEK fittings featured with high mechanical strength, solvent resistance (except strong sulphuric acid and strong nitric acid), high temperature resistance, wear resistance with its high friction coefficient, impact resistance

  • One-Piece fittings are excellent for connecting 1.6mm OD most rigid or semirigid tubes, including tubing manufactured from fluoropolymers (FEP, PFA, ETFE, ECTFE, etc.), PEEK.

  • Frequent disassembly supported

  • Suit for mesolow liquid chromatography, gene detection, high-end bioanalysis

  • High mechanical strength, fittings are not easily loosend after tightening

  • Continuous operating temperature -100℃-+250℃

  • 10-32 threaded coned head for HPLC system application




Model No. of PEEK One-Piece Fittings


Specification of PEEK One-Piece Fittings


Model No.

Thread

Material

Tubing OD

WK11A-10-32-K

10-32UNF

PEEK

1.6mm

WK11E-10-32-K

10-32UNF

PEEK

1.6mm

WK11C-10-32-K

10-32UNF

PEEK

1.6mm

WK11G-10-32-K

10-32UNF

PEEK

1.6mm

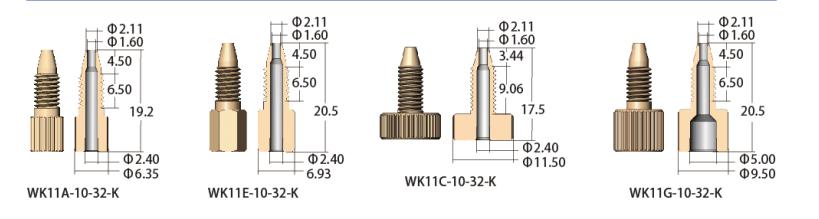

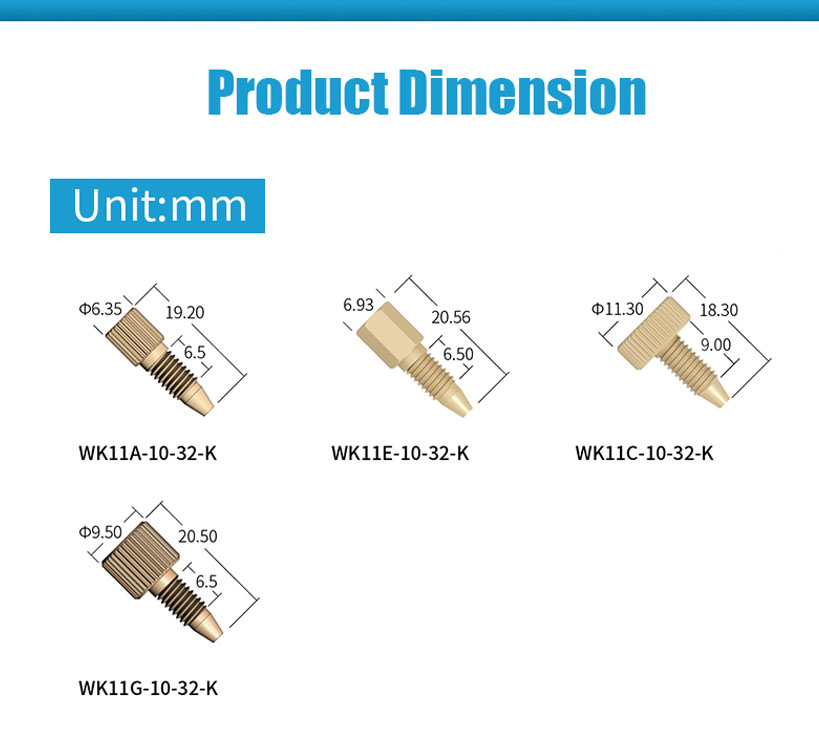

Dimension (unit: mm) of PEEK One-Piece Fittings

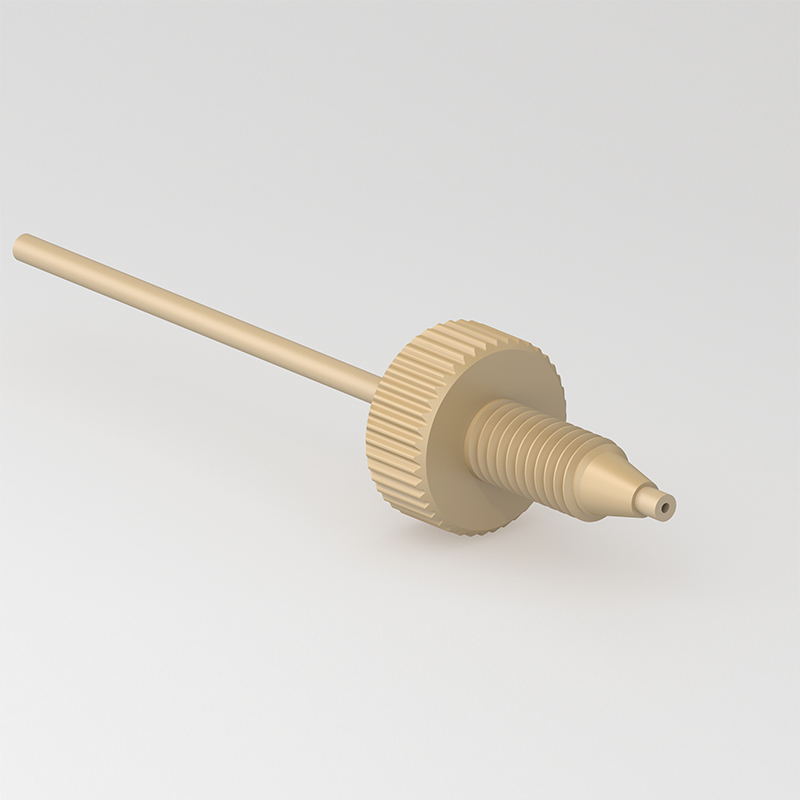

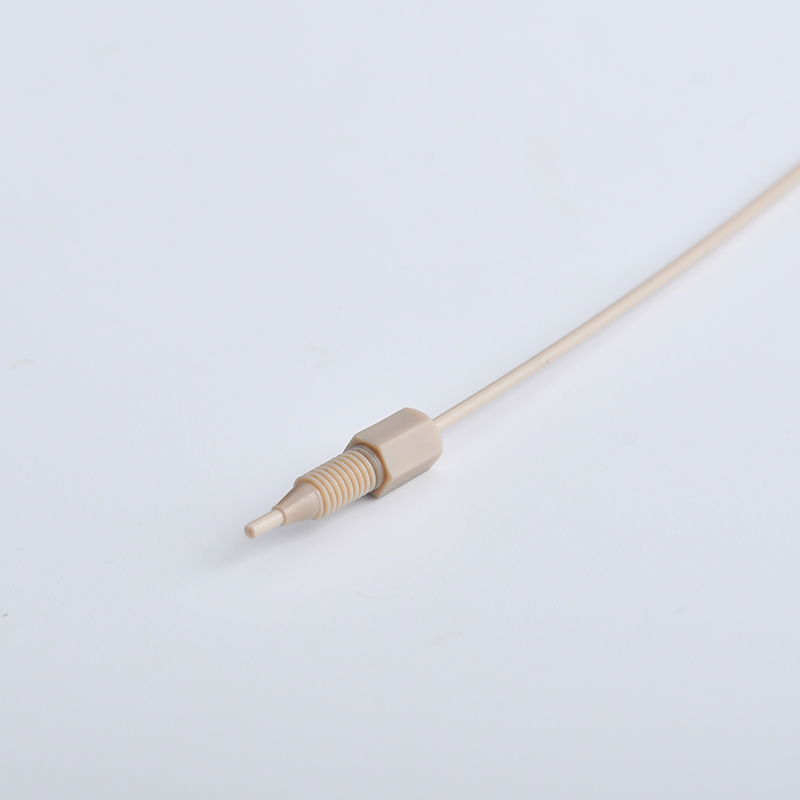

Connection of PEEK One-Piece Fittings
