Silicone Tube

Name: Silicone Tube
Brand: Nanjing Runze Fluid Control Equipment Co., LTD.

Silicone tube is a type of high transparency flexible tubing which is mostly used for peristaltic pumps to works as peristaltic tubing or external transfer tubing, it is featured as non-toxic, odorless, food-grade, anti UV, anti-ozone, high transparency, kink resistance and uneasy to deformed.

Runze Fluid is a professional silicone tubing manufacturer and supplier, we have different types of silicone tubes for sale, including soft flexible silicone tubing, food-grade safe silicone tubing, heat resistant & high-temperature silicone tubing, medical-grade clear silicone tubing, platinum cured silicone tubing, and other small silicone tubings, etc. Please contact us to check the attractive cost/price of the silicone tubes.

Send Mail

Video of Silicone Tube

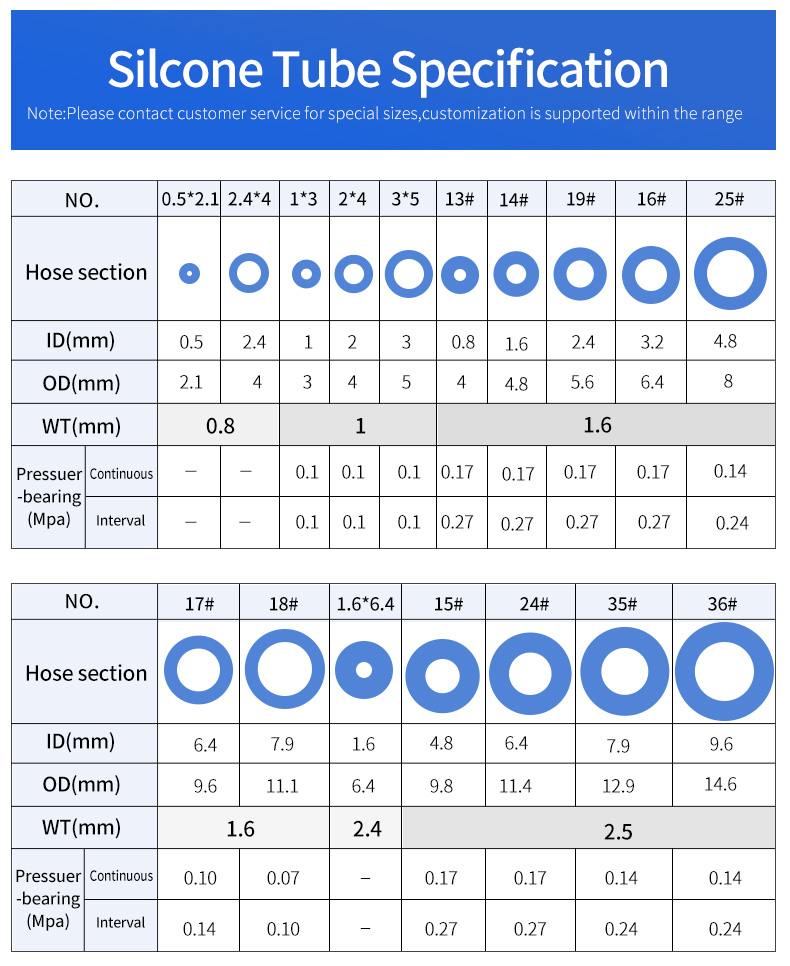

Specification of Silicone Tube

Product name	Silicon tube
Color	Transparent
Temperature	-40℃-200℃

Model Number (unit: mm) of Silicone Tube

Model No.	Tube No.	Inner Diameter (mm)	Outer Diameter (mm)	Wall Thickness (mm)
96402-14	#14	1.6	4.8	1.6
96402-16	#16	3.2	6.4
96402-17	#17	6.4	9.6
96402-18	#18	7.9	11.1
96402-19	#19	2.4	5.6
96402-25	#25	4.8	8.0
96402-15	#15	4.8	9.8	2.5
96402-24	#24	6.4	11.4	2.5
96410	/	1.0	3.0	1.0
96411	/	2.0	4.0
96413	/	3.0	5.0

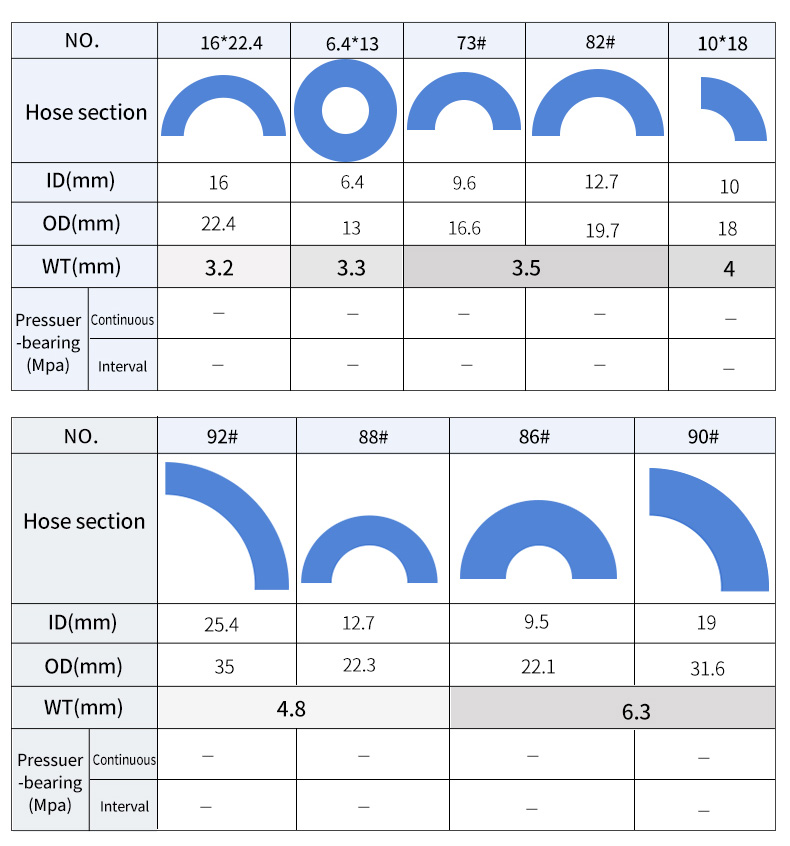

Model No.	Inner Diameter (mm)	Outer Diameter (mm)	Wall Thickness (mm)
16*22.4	16	22.4	3.2
6.4*13	6.4	13	3.3
19*31.6	19	31.6	6.3
9.5*22.1（86#）	9.5	9.5	6.3
25.4*35	25.4	35	4.8
12.7*22.3（88#）	12.7	22.3	4.8

Model No.	Inner Diameter (mm)	Outer Diameter (mm)	Wall Thickness (mm)
GCGJG00011	0.5	1.0	0.25
GCGJG00001	1.0	3.0	1.0
GCGJG00017	1.5	2.5	0.5
GCGJG00010	1.5	3.0	0.75
GCGJG00002	2.0	4.0	1.0
GCGJG00008	3.0	6.0	1.5
GCGJG00006	4.0	6.0	1.0
GCGJG00015	4.0	7.0	1.5
GCGJG00009	5.0	8.0	1.5
GCGJG00005	6.0	9.0	1.5
GCGJG00007	7.0	10.0	1.5
GCGJG00004	8.0	11	1.5
GCGJG00014	7.0	12	2.5
