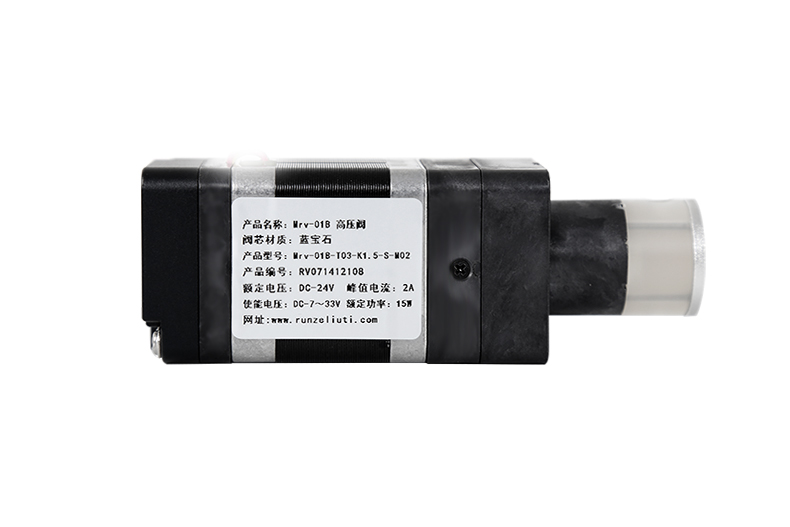

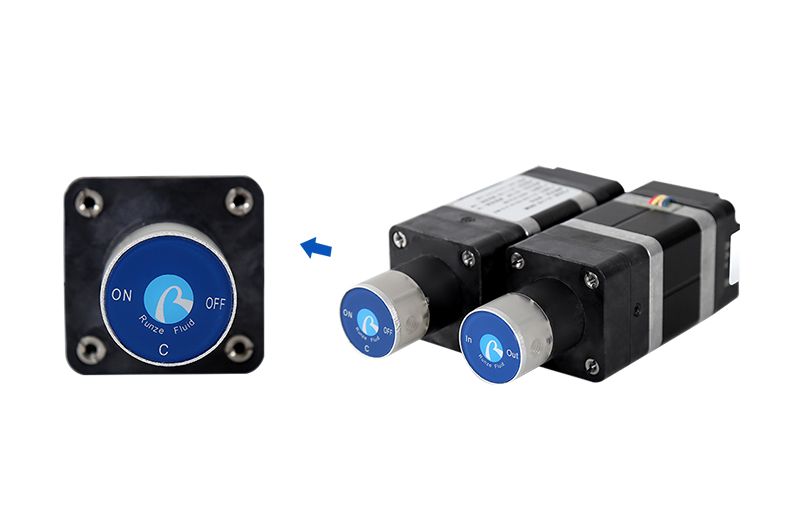

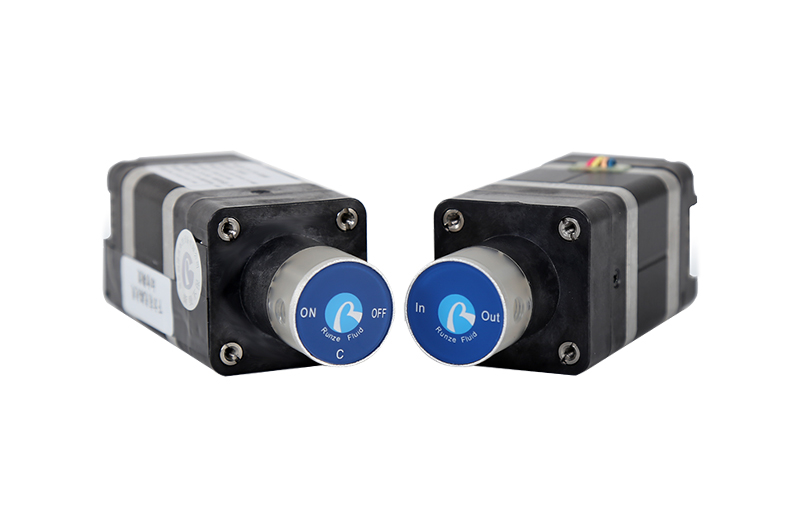

3 Way Switching Valve

The 3-way switching valve was driven by a stepper motor to switch the inside rotor to a specific port, but it is was triggered by DC7-33V voltage signals to power on and off just like common solenoid valves. Regarding this high pressure water solenoid valve, we have 2 way, 3 way, 4-way valves available, all these models anti maximum pressure to 1.6Mpa which can be used in special pressure systems. Runze is a professional switching valve manufacturer and supplier, we are able to offer various fluid control equipment. If you want to know more, please contact us now!

  • Good Quality High Pressure 3 Way Solenoid Valve for Sale
  • Runze High Pressure 3 Way Solenoid Valve Wholesale
  • Buy High Pressure 3 Way Solenoid Valve Product
  • High Pressure 3 Way Solenoid Valve for Sale
  • Good Quality High Pressure 3 Way Solenoid Valve for Sale
  • Runze High Pressure 3 Way Solenoid Valve Wholesale
  • Buy High Pressure 3 Way Solenoid Valve Product
  • High Pressure 3 Way Solenoid Valve for Sale

Model Numbers of 3 Way Switching Valve

3 Way Switching Valve


Flow Configuration of 3 Way Switching Valve


3 Way Switching Valve


Specification of High Pressure 3 Way Solenoid Valve


Orifice

1.5mm

Wetted material

PCTFE, Sapphire

Valve model

M01

M02

M03

M04

M05

Port-to-port

52.93ul

50.68ul

52.93ul

101.35ul

51.32ul

Dead volume

13.83ul

11.66ul

13.83ul

23.31ul

12.22ul

Port configuration

2/3/4 port

Air pressure

0-1.0Mpa

Water pressure

0-1.2Mpa

Liquid temperature

0℃-80℃

Connection

1/4-28UNF

Replaceable parts

Stator replaceable, rotor sealed irreplaceable

Driver

Non-optional

Valve drive

≤530ms (response time)

Trigger signal

DC7-33V

Feedback input signal

3.3-24V high low level output

Max. current

2.0A

Power supply

DC24V/1.0A

Max power

48W

Operating temperature

0℃--50℃

Operating humidity

<70% relative humidity, non-condensing

Dimension (L*W*H)

42*42*113mm

Net weight

0.487KG

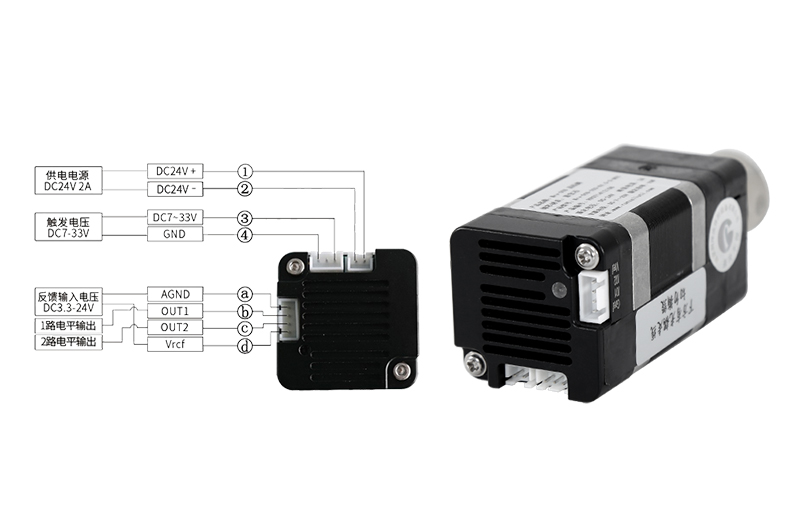

Driver Port

3 Way Switching Valve



Port

Description

DC24V (+)

DC24V positive

DC24V (-)

DC24V negative

V-Tin (DC7~33V+)

External trigger voltage (DC7~33V)

DC7~33V GND (-)

GND

AGND

External reference voltage GND (-)

OUT1

Output level 1

OUT2

Output level 2

Vref

External reference input voltage (+)


Dimension (unit: mm)


3 Way Switching Valve
