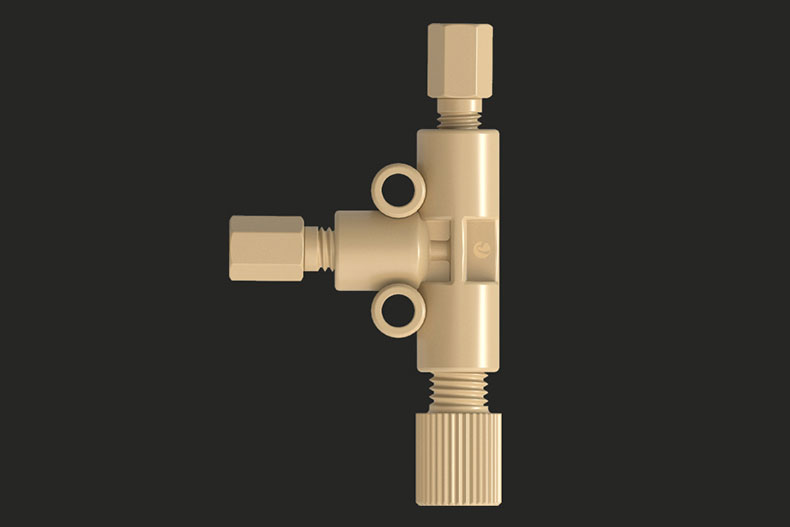

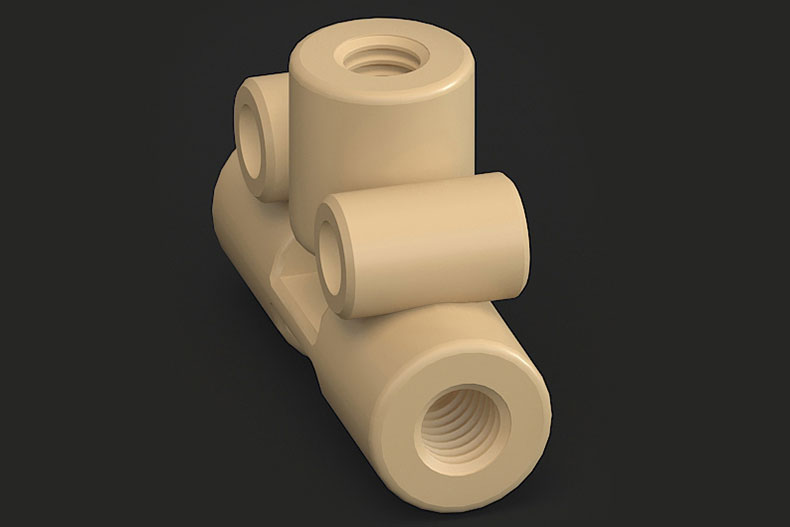

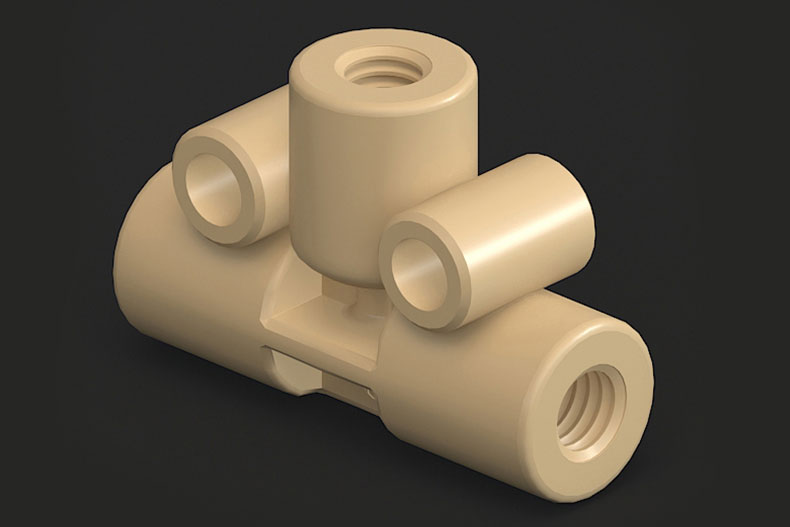

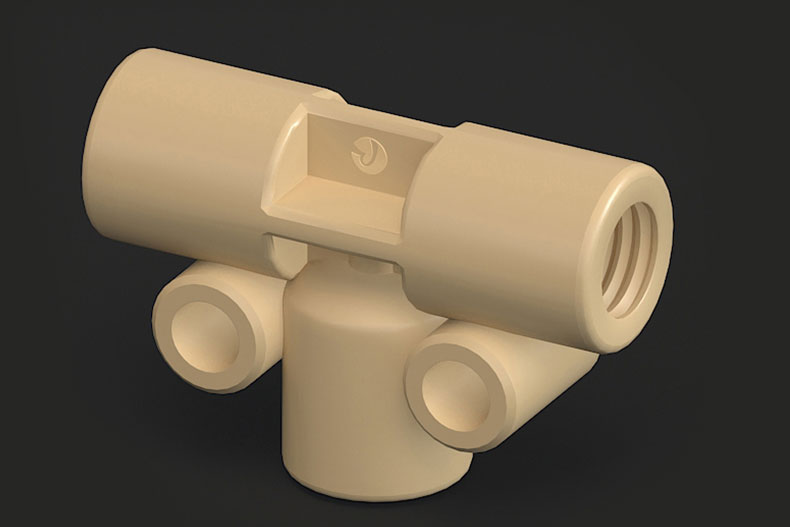

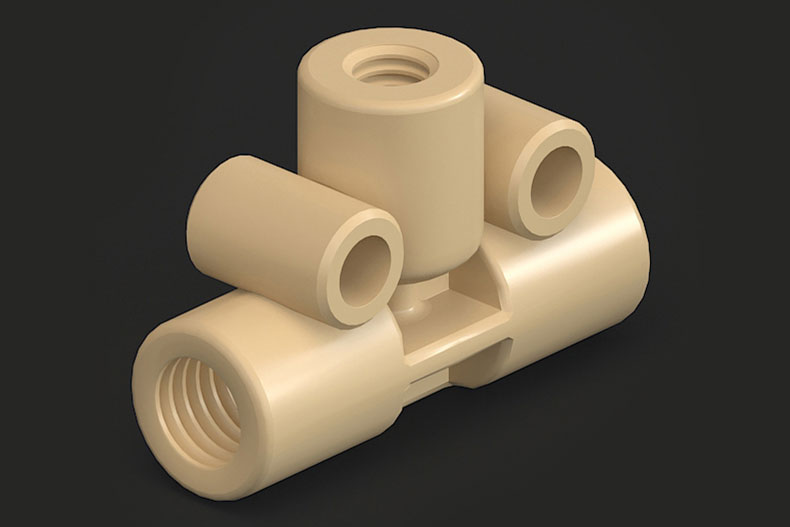

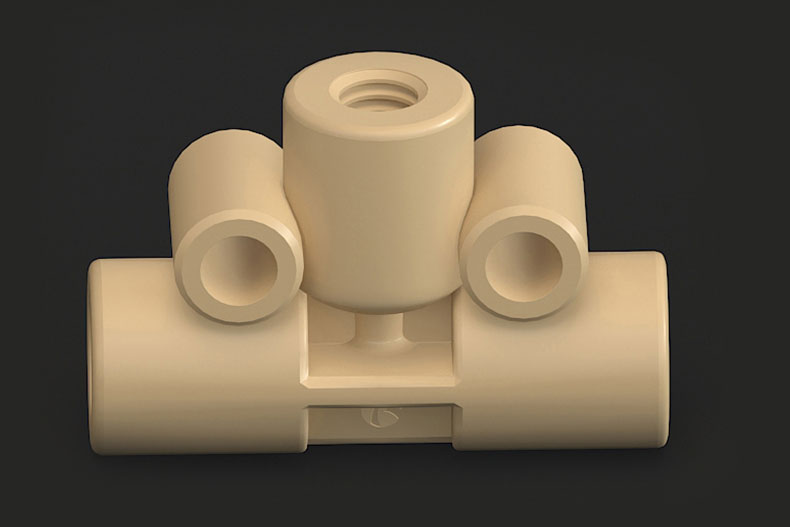

PEEK Female Thread T Adapter

Name: PEEK Female Thread T Adapter
Brand: Nanjing Runze Fluid Control Equipment Co., LTD.

Peek female thread T adapter, one of RUNZE newest peek fittings. PEEK is a type of material with high mechanical strength, it is suitable for hydraulic systems that require repeated disassembly and relative high pressure in liquid chromatography and biological analysis instruments.

Send Mail

Features of PEEK Female Thread T Adapter

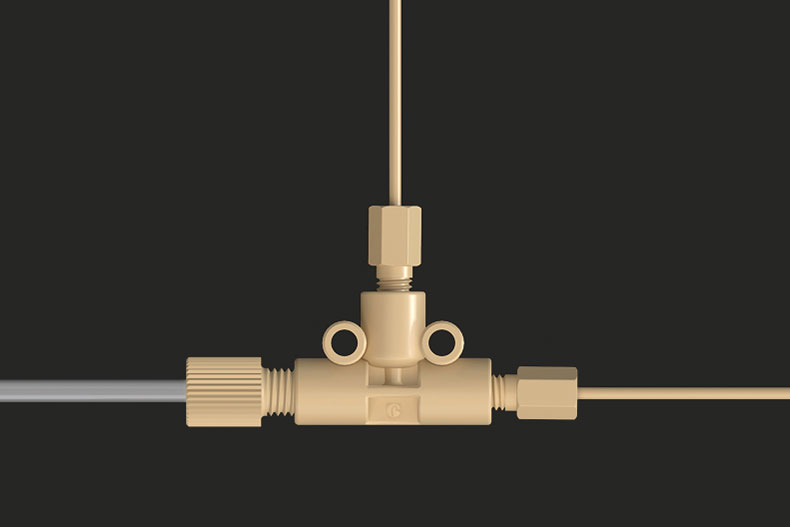

Designed to divide or gather two fluids together; ideal for pre-assembled tubing
Effective elimination of loose fittings in the tube caused by twisting, can be tighten even when vibrating.
Long-term working temperature range -100℃~+250℃
Suitable for standard 10-32UNF conical fittings or 1/4-28UNF flat bottom threaded fittings

Specifications of PEEK Female Thread T Adapter

SKU	Model	Thread	Flow path Diameter	Wetted liquid volume	Material
NT03-28-K
1011120001	NT03-28-K(0.8)	1/4-28UNF(*3)	0.8 mm	7.47mm³	PEEK natural
1011120002	NT03-28-K(1.25)	1/4-28UNF(*3)	1.25 mm	18mm³	PEEK natural
1011120003	NT03-28-K(2.0)	1/4-28UNF(*3)	2.0 mm	45.1mm³	PEEK natural
NT03-T32&L28&R28-K
1011120004	NT03-T32&L28&R28-K(0.8)	1/4-28UNF(*2) & 10-32UNF	0.8 mm	8.95mm³	PEEK natural
1011120005	NT03-T32&L28&R28-K(1.25)	1/4-28UNF(*2) & 10-32UNF	1.25 mm	17.3mm³	PEEK natural
NT03-32-K
1011120006	NT03-32-K(0.8)	10-32UNF(*3)	0.8 mm	12.18mm³	PEEK natural
1011120007	NT03-32-K(1.25)	10-32UNF(*3)	1.25 mm	16.38mm³	PEEK natural
NT03-T32&L28&R32-K
1011120008	NT03-T32&L28&R32-K(0.8)	1/4-28UNF & 10-32UNF(*2)	0.8 mm	8.95mm³	PEEK natural
1011120009	NT03-T32&L28&R32-K(1.25)	1/4-28UNF & 10-32UNF(*2)	1.25 mm	17.3mm³	PEEK natural
NT03-T28&L28&R32-K
1011120010	NT03-T28&L28&R32-K(0.8)	1/4-28UNF(*2) & 10-32UNF	0.8 mm	10.58mm³	PEEK natural
1011120011	NT03-T28&L28&R32-K(1.25)	1/4-28UNF(*2) & 10-32UNF	1.25 mm	16.84mm³	PEEK natural
NT03-T28&L32&R32-K
1011120012	NT03-T28&L32&R32-K(0.8)	1/4-28UNF & 10-32UNF(*2)	0.8 mm	10.4mm³	PEEK natural
1011120013	NT03-T28&L32&R32-K(1.25)	1/4-28UNF & 10-32UNF(*2)	1.25 mm	16.6mm³	PEEK natural
