FEP Tube

FEP tube is a kind of rigid Teflon tubing in transparent look which has strict tolerance requirements on inner and outer diameters, inner diameter to ensure high precision fluid volumes while outer diameter to ensure matching with standard tube fittings. It featured excellent chemical resistance and biocompatible with most solvents in analysis areas.

  • fep tube
  • fep tubing
  • clear teflon tubing
  • Fluorinated Ethylene-Propylene
  • fep tube
  • fep tubing
  • clear teflon tubing
  • Fluorinated Ethylene-Propylene
Send Mail
Share this product:

FEP (Fluorinated Ethylene-Propylene)



This attractive alternative to PTFE tubes has many similar properties such as biocompatibility and remarkable inertness to most chemicals. FEP is the preferred material in production of small diameter tubing of continuous lengths. Like PTFE, this flexible material is mainly used for low-pressure microfluidic applications. In addition, thanks to its excellent clarity, this fluid tubing is ideal for sight glass/flow monitoring applications. FEP tubing also has better gas and vapor permeability properties and excellent UV transmission ratings.



RUNZE FEP tubing continuous operating temperature is from -50°C and -50°C, has a slightly higher coefficient of friction, and is more transparent than PTFE, which is easy to observe the liquid.


Product name

FEP tube

Color

Transparent

CUT Temperature

-51℃-50℃

Tolerance

±0.1mm

Application

Pharmaceuticals, medicine, lab

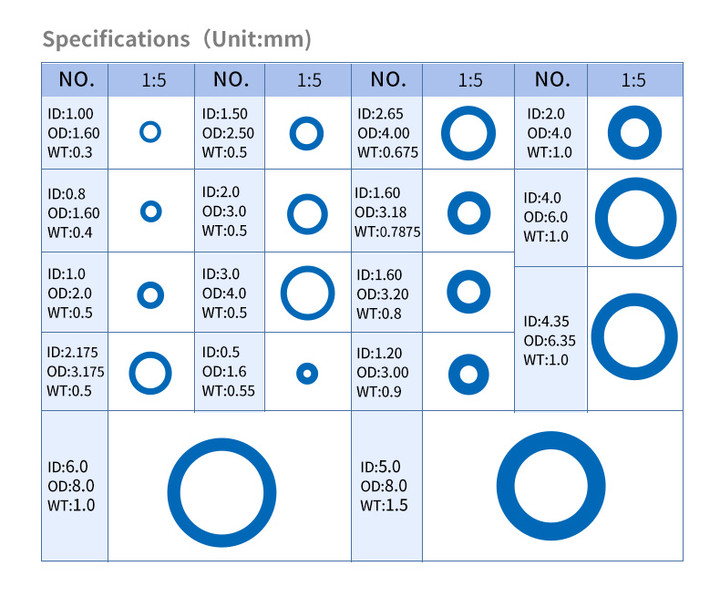

Specification of RUNZE FEP Tubing

Model No.ID(mm)OD(mm)WT(mm)
BS-TFLG-Φ1*Φ1.611.60.3
TFLG00001(0.8*1.6)0.81.60.4
TFLG00002(1*2)120.5
TFLG00005(2.175*3.175)2.1753.1750.5
TFLG00003(1.5*2.5)1.52.50.5
TFLG00004(2*3)230.5
TFLG-Φ3*Φ4340.5
TFLG00008(2.65*4)2.6540.675
TFLG00006(1.6*3.175)1.63.1750.7875
TFLG00007(1.6*3.2)1.63.20.8
TFLG00009(1.2*3)1.230.9
BS-TFLG-Φ2*Φ4241
TFLG-Φ4*Φ6461
TFLG-Φ6*Φ8681
BS-TFLG-Φ4.35*Φ6.354.356.351
TFLG-Φ3.2*Φ4.83.24.80.8





FEP Tube
