Micro Peristaltic Pump

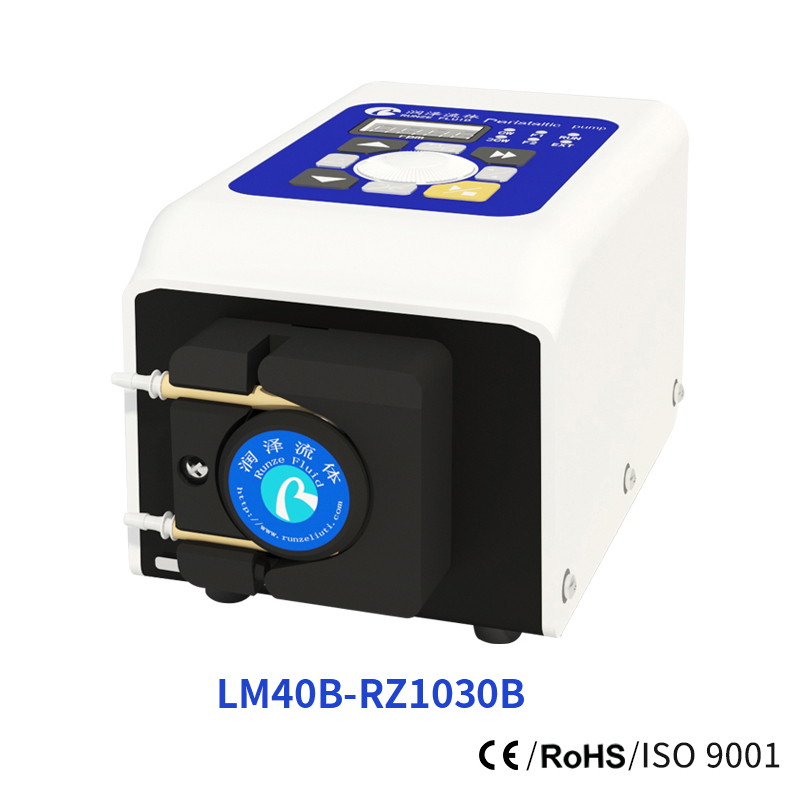

The LM40B peristaltic pump uses a cost-effective processor to control the stepper motor, and uses multiple independent LEDs to display the status (including positive/negative rotation, foot pedal mode F1/F2, motor movement/motor stop, external control trigger, etc.).


Send Mail
Share this product:

Video of Micro Peristaltic Pump





Video of LM40B Keyboard Control Mode




Micro Peristaltic Pump Features at-a-Glance

* The pump is compact in size, cost effective in price, easy in operation and non-oxidizing in housing.

* Support bottle liquid filling and infinite loops (communication control mode)

* Easy Operation: Adjust the speed by keyboard panel or rotary encoder
* Intuitive Display: The LED displays the positive/negative rotation, foot switch status, whether the motor is running, whether the external control interface is effective, etc.
* Motor subdivision is adaptive and speed control accuracy can reach ±0.1rpm

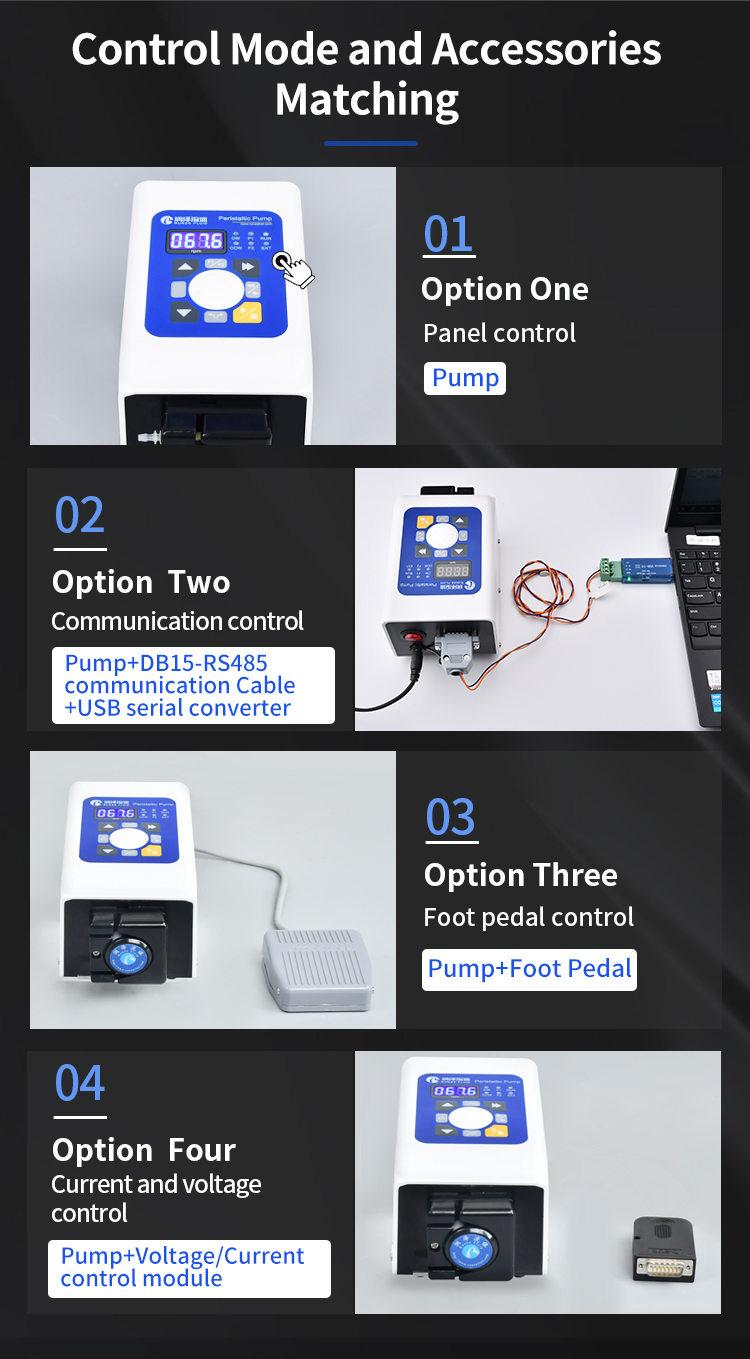

* Support Rich Application Scenarios: Keyboard control mode, RS485 communication control mode, Foot pedal control, Current and voltage controls


Specification of Micro Peristaltic Pump

Product name

LM40B Series Intelligent Peristaltic Pump

Product name

RZ1030-4/RZ1030B/RZ-01/RZ-02

Motor type

Japan imported stepper motor

Brand name

RUNZE

Speed accuracy

±0.1 rpm

Language

Chinese/English

Roller material

POM/PPS

Speed range

0.1-400rpm

Flow rate range

0.03~152 ml/min

External control

Foot pedal switch, RS485, Current and Voltage Control

Foot pedal input interface

Foot pedal switch control start and stop (keyboard control mode only)

External control speed signal input interface

Support multiple switching control inputs (external control mode only)

External control steering signal input interface

Support steering switching control inputs (external control mode or foot pedal control mode only)

External control start signal input interface

Support start/stop switch control input(external control mode only)

Fast speed

One button to make it to fast speed

Power supply mode

DC24V±10%

Max Power

20W

Working temperature

0-40 degree

Working humidity

Relative humidity< 80%

Protection grade

IP31

Ne weight

0.9kg (without pump head)

Dimension (L*W*H)

180.1(length)×107.4(width)×101.5(height) (mm)


Tubing and Flow Rate of Micro Peristaltic Pump

Pump Head

RZ1030/RZ1030B   Rollers: 4

WT (mm)

0.8

ID (mm)

0.64

0.76

0.89

1.02

1.14

1.30

1.42

1.52

1.65

1.85

2.06

2.29

2.54

2.79

Max Flow Rate

(ml/min)

12

15

18

25

32

38

47

50

56

70

87

94

113

128


Pump Head

RZ-01 Rollers: 4

WT (mm)

0.8

ID (mm)

0.64

0.76

0.89

1.02

1.14

1.30

1.42

1.52

1.65

1.85

2.06

2.29

2.54

2.79

Max Flow Rate(ml/min)

12

13

16

22

28

34

42

44

47

60

65

88

90

96

WT (mm)

1.6

ID (mm)

1.6

2.4

3.2

Max Flow Rate(ml/min)

48

94

152



Pump Head

RZ-02  Rollers: 3/6

WT (mm)0.8
1.6
Max Flow Rate(ml/min)0.054-142.564
0.029-135.878
