Syringe Pump SY-09

  • Peristaltic Pump SY-09
Send Mail
Share this product:

Video of Syringe Pump SY-09


Model Numbers of Syringe Pump SY-09

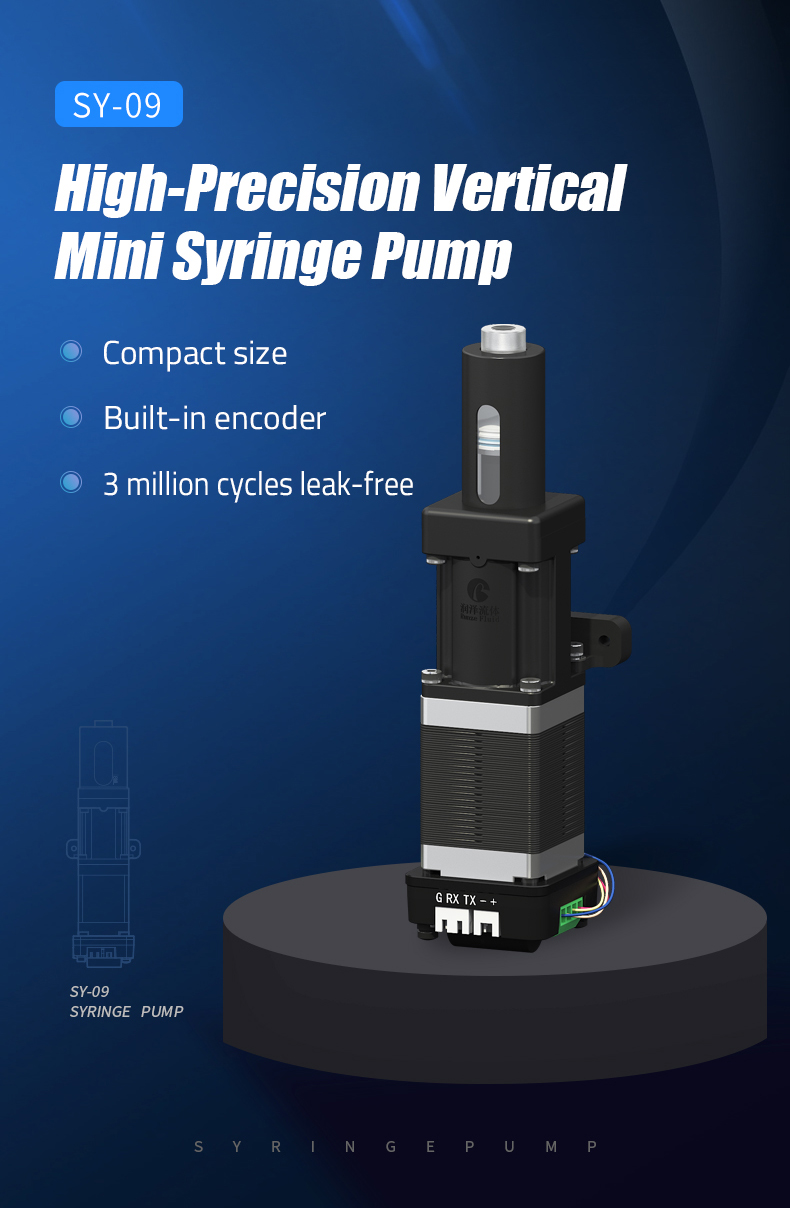

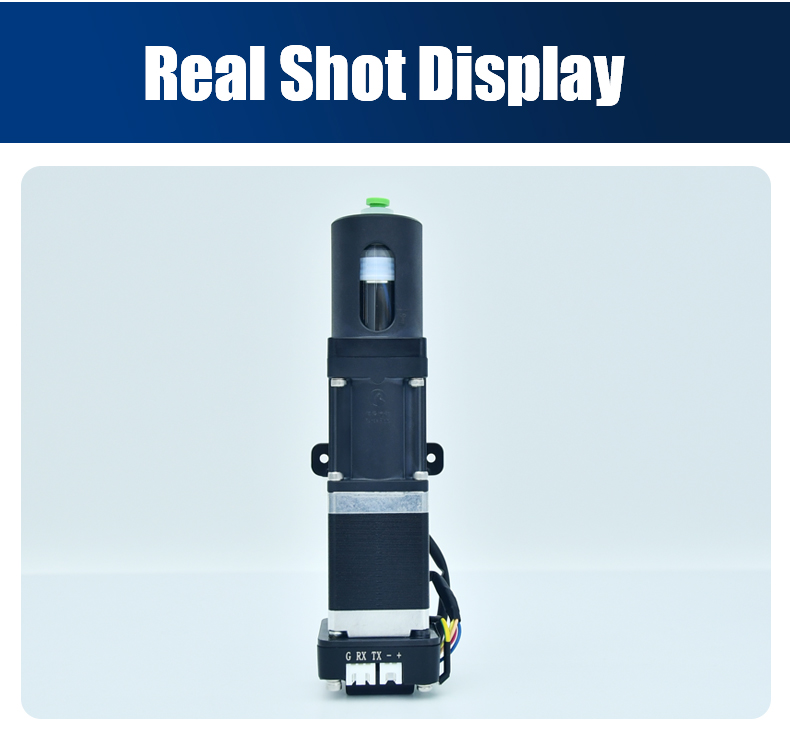

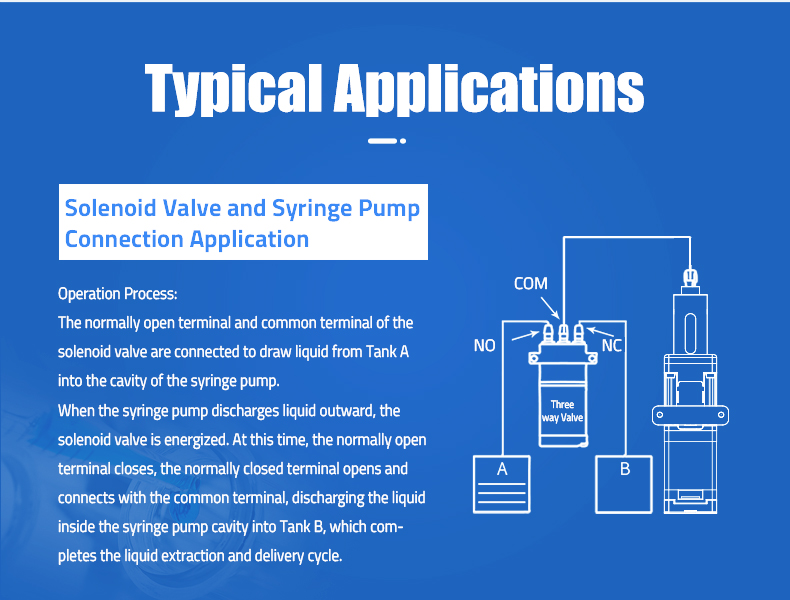

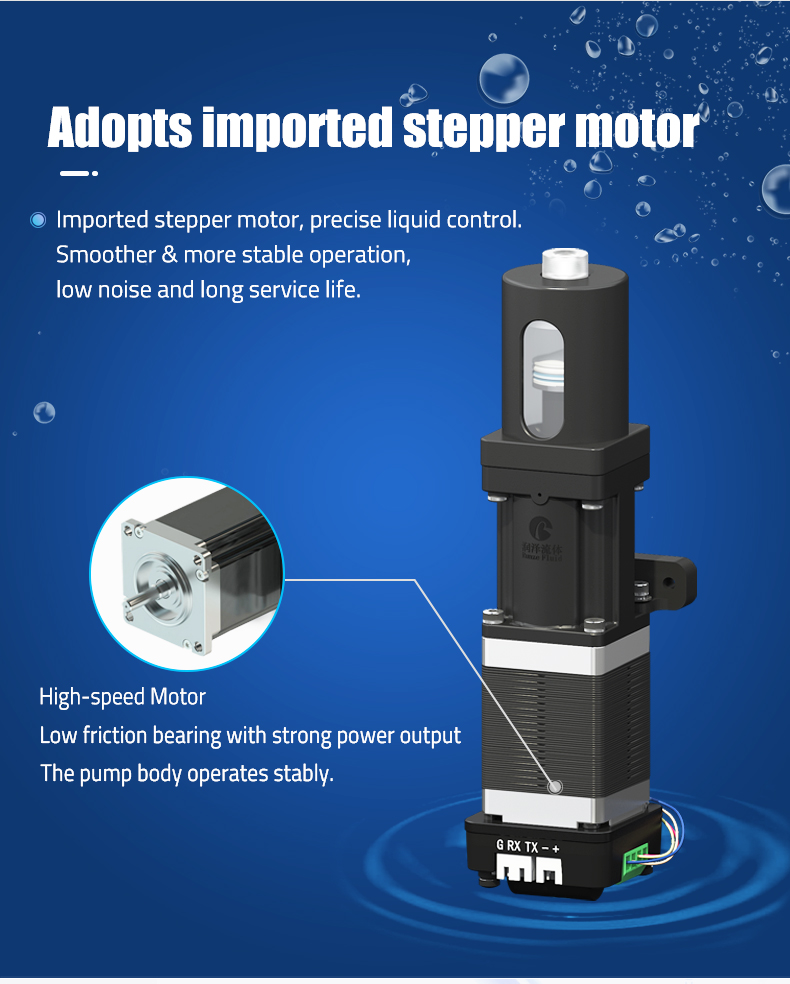

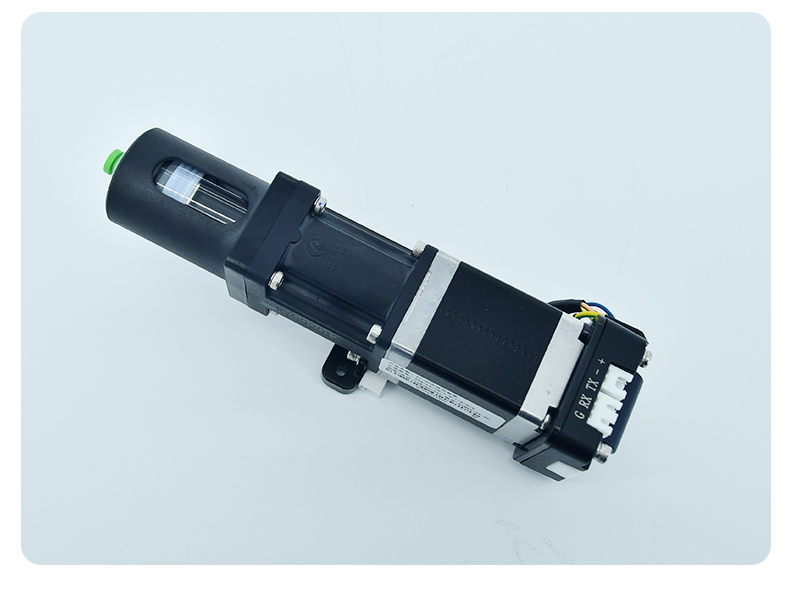

Small compact size, easy mounting, space-saving, long service life An industrial Syringe Pump with high precision & high performance in micro-liquid transferring self-developed by Runze Fluid. Make step motor move in clockwise or counterclockwise by receiving instructions from the host computer. The circular motion is converted into linear motion by the trapezoidal screw to make the piston move up and down which realizes medical analysis equipment, chromatographic analyzers, food and beverages detection and analysis system, water quality on-line analyzer, petroleum detection equipment and biopharmaceutical extraction devices


Peristaltic Pump SY-09

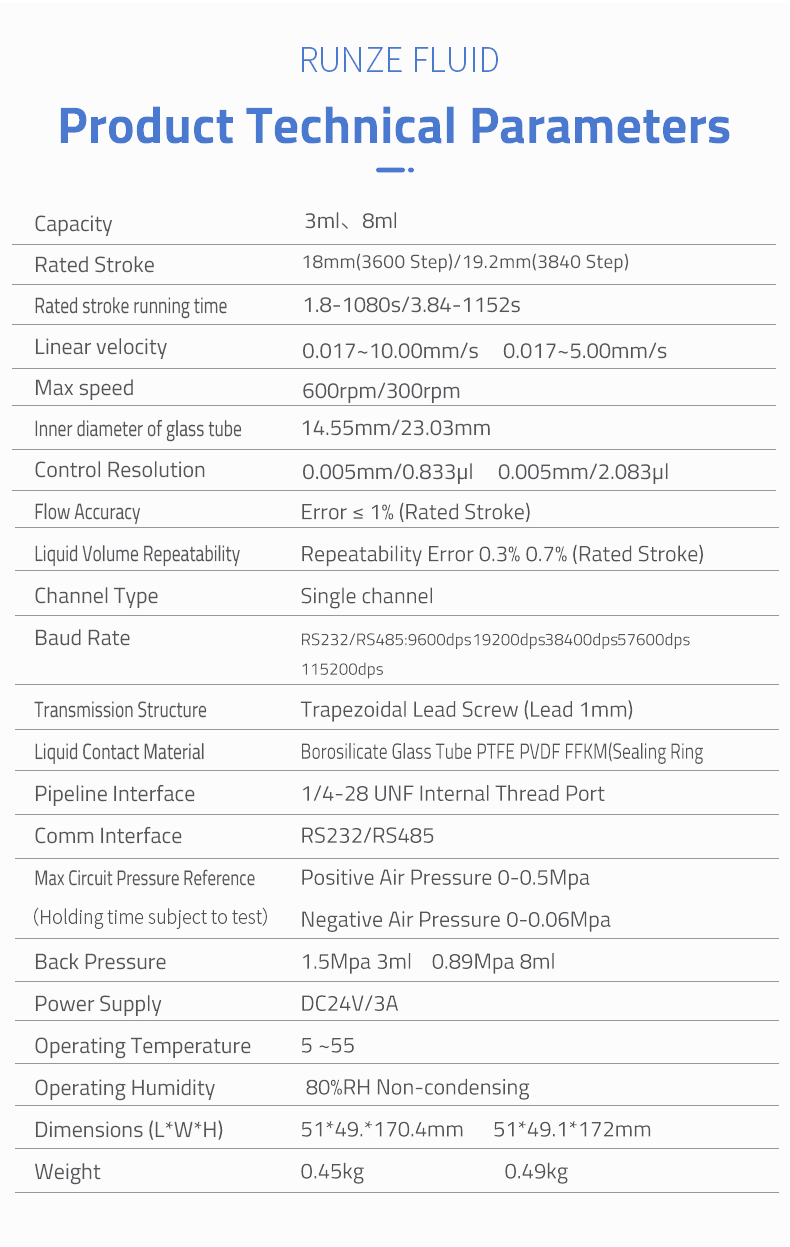

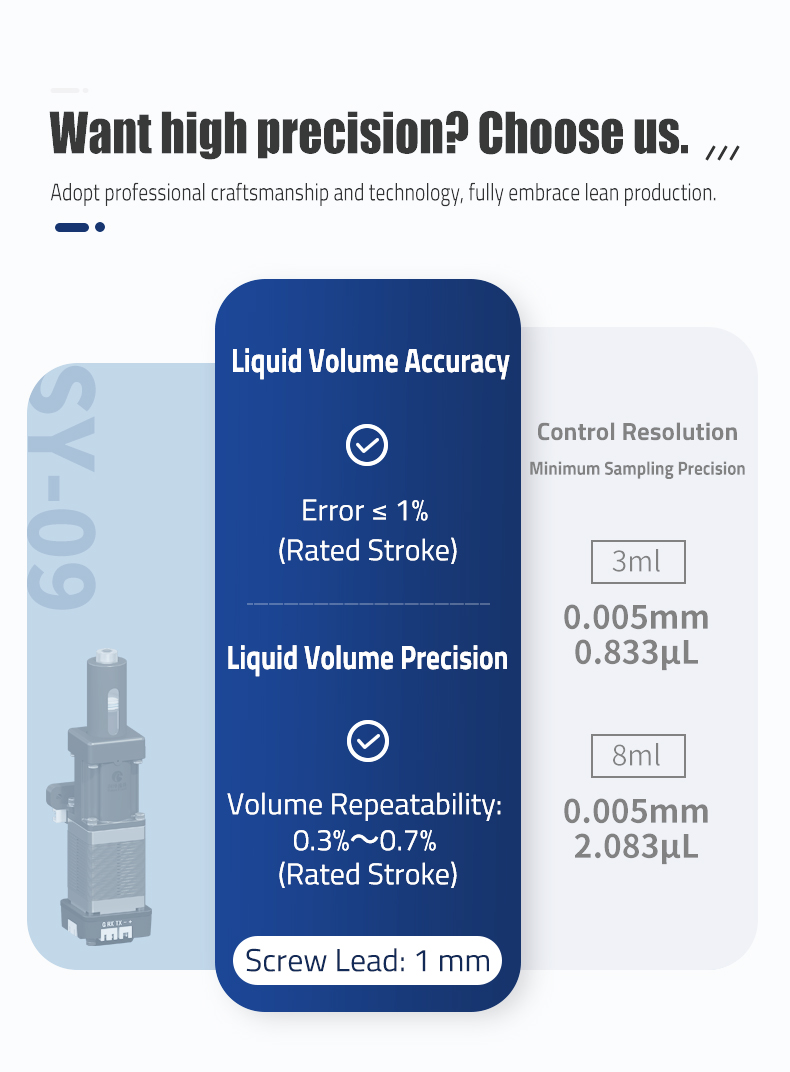

Specification of Syringe Pump SY-09


Accuracy≤1%@100% (rated stroke)
Precision (Repeatability)0.3%-0.7%@100% (rated stroke)
Service life3 million times no leakage (media: water; 1 rated stroke = one time)
Volume3ml8ml
Rated Stroke (control steps)18mm(3600steps)19.2mm(3840steps)
Maximum speed600rpm300rpm
Linear speed0.017-10mm/s0.017-5mm/s
Running time (per rated stroke)1.8-1080s3.84-1129s
Resolution0.005mm/0.833μl0.005mm/2.083μl
Syringe ID14.55mm23.03mm
ActuatorTrapezoidal screw (Lead 1mm)

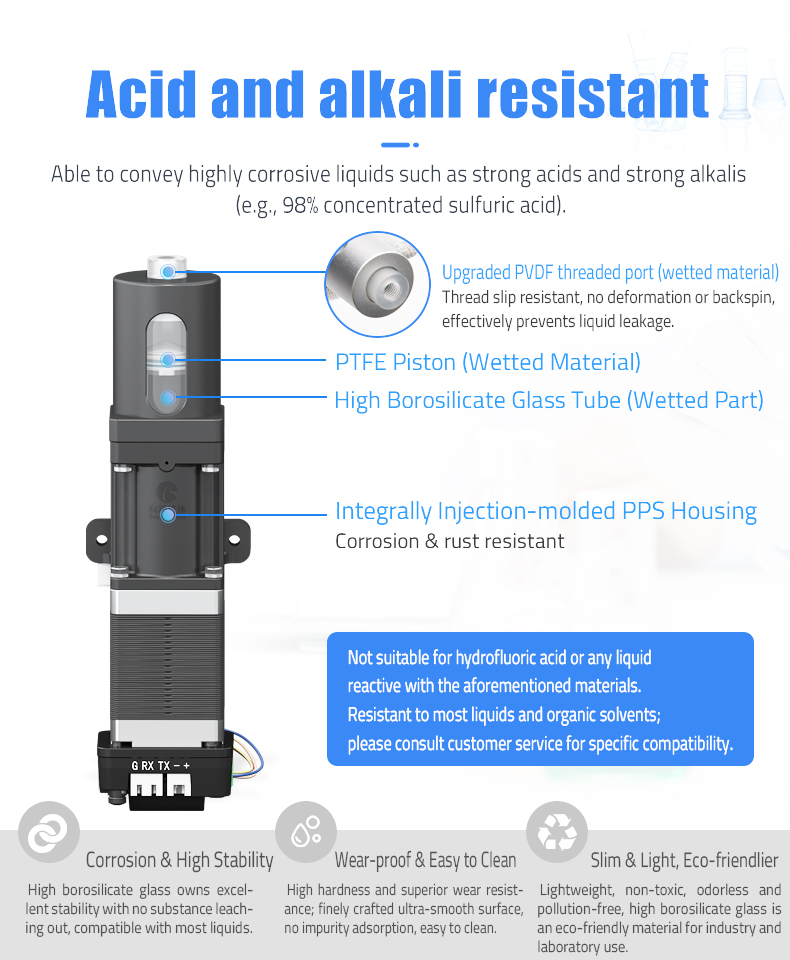

Wetted MaterialBorosilicate glass, PCTFE valve head, PTFE piston
Max. PressurePositive: 0-0.8Mpa, Negative:0-0.06Mpa, (retention time based on test)
ChannelSingle channel
Connection1/4-28UNF
Baud rateRS232/RS485:9600bps / 19200bps / 38400bps / 57600bps / 115200bps                                                               CAN:100Kbps/200Kbps/500Kbps/1Mbps
Address & Parameter settingVia Communication
Max power15W
Power supplyDC24V/3A
Operating temperature5℃~55℃
Operating humidity≤ 80% relative humidity, non-condensing

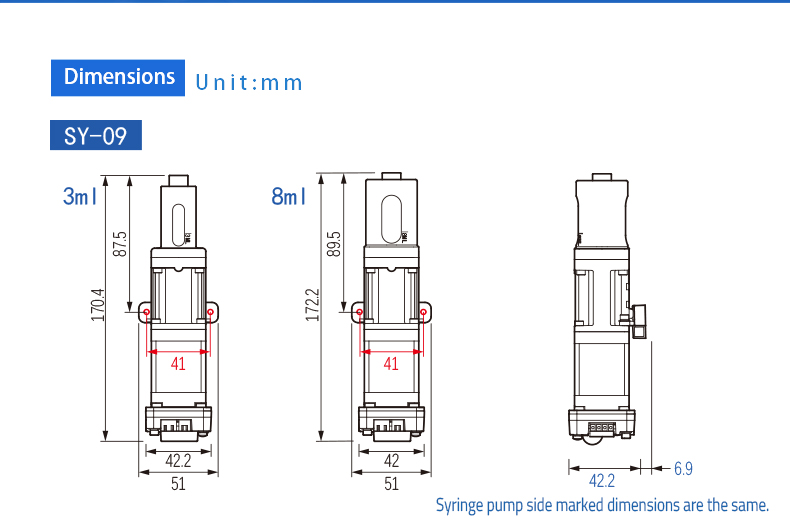

Dimension (L*W*H)51*41.5*155.2mm51*41.5*157.2mm
Net Weight0.56kg0.62kg


Function Introduction of Syringe Pump SY-09


Address settingAddress settable via serial port
Baud rate settingRS232/RS485/CAN baud rate settable
CAN destination address settingWhen multiple devices controlled in paralleling, any device can be set with priority address
Speed setting3ml:from 1 rpm to 600 rpm
8ml:from 1 rpm to 300 rpm
(There are difference for gas, liquid and models)
Subdivision settingsubdivision 2-32 are settable
Reset interior dataFactory reset
Parameter queryQuery address, speed, subdivision, baud rate, etc.
Version queryQuery current firmware version
Motor directionCW/CCW settable
ResetReturn piston to the origin/home position
Strong stopStrong stop the running motor
Motor status queryDetect current motor status



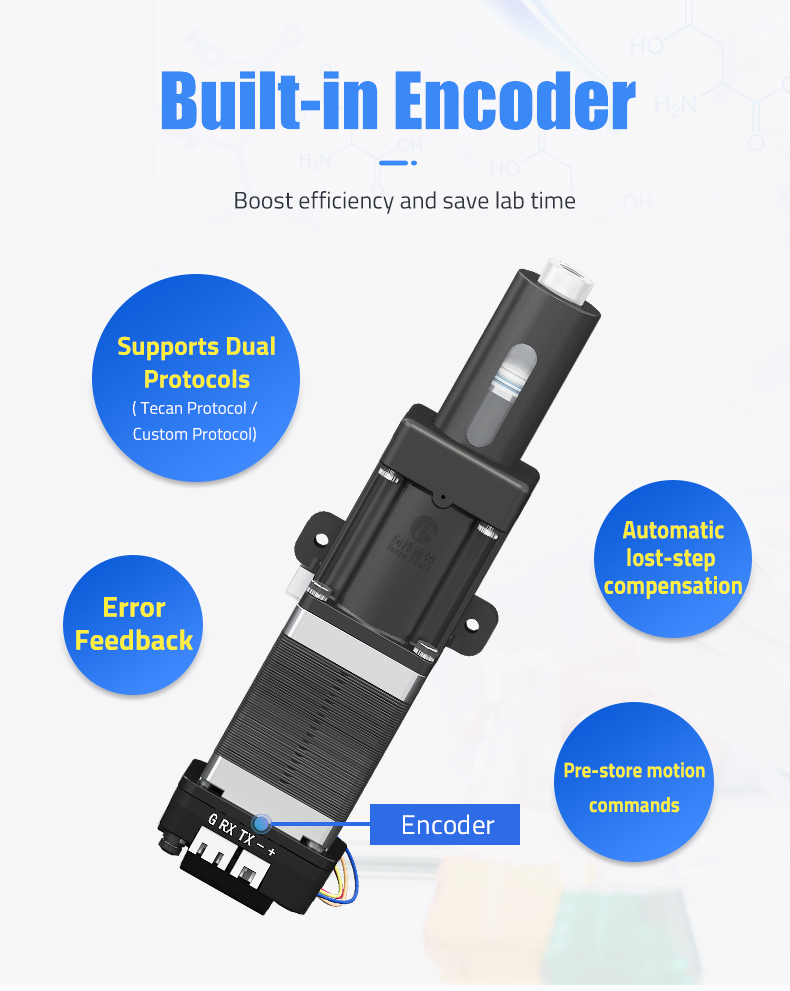

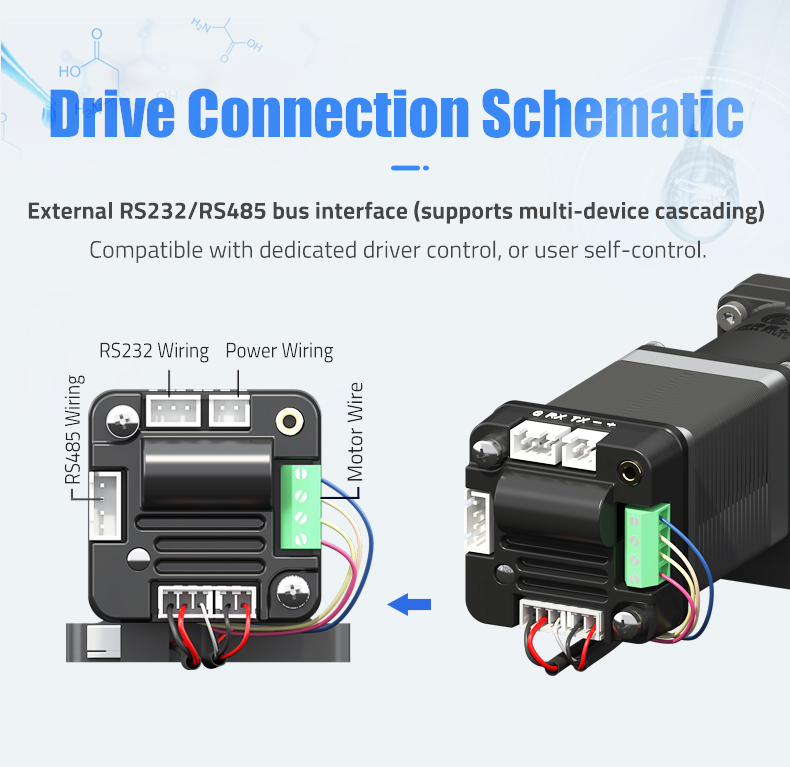

Driver Port


PortDescriptionPortDescription
+DC24V PositiveA+/A-Phase A wiring
-DC24V NegativeB+/B-Phase B wiring
TXRS232 Data InputIO1IO1 Optocoupler signal
RXRS232 Data OutputAEncoder Phase A
GNDRS232 GNDBEncoder Phase B
HCANHNCTemporary is not enabled
LCANL+5VPower positive
ARS485AGNDGND
BRS485B PE Grounding
