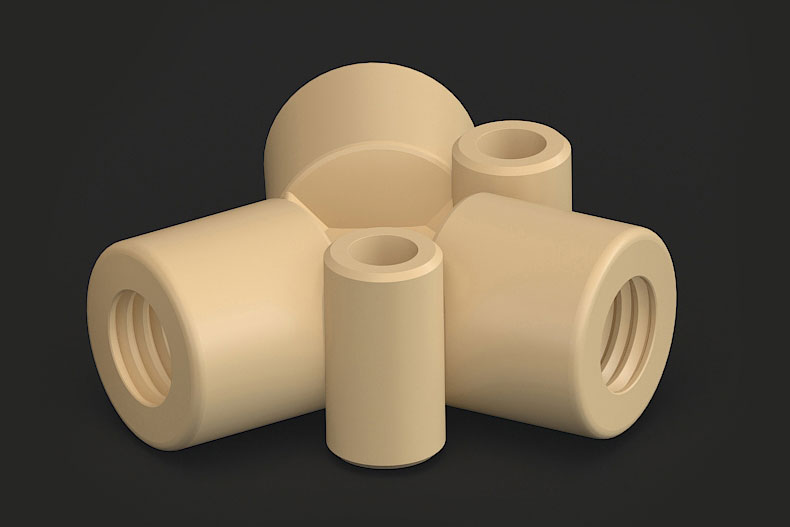

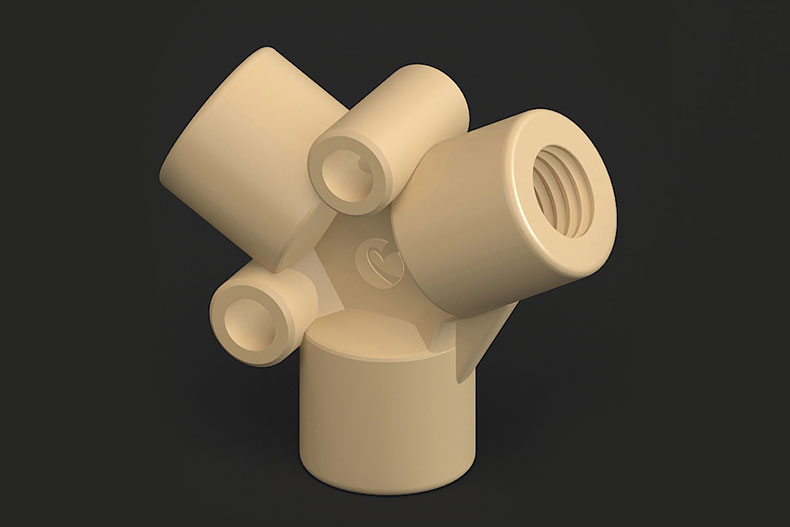

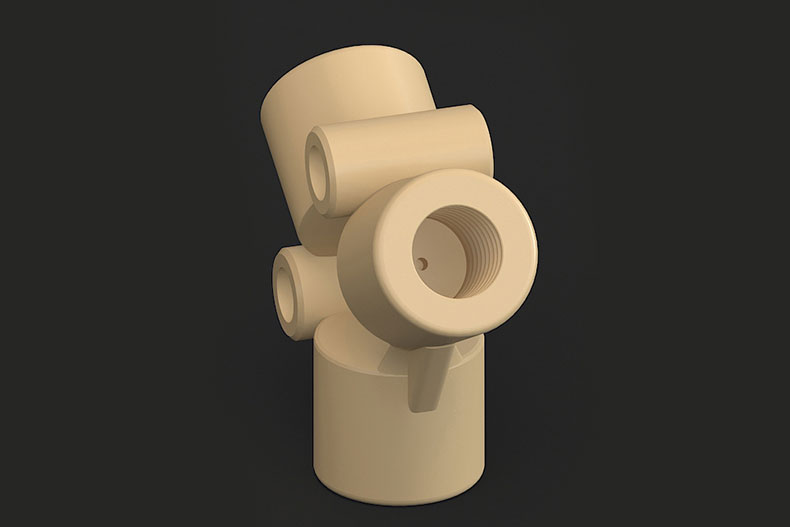

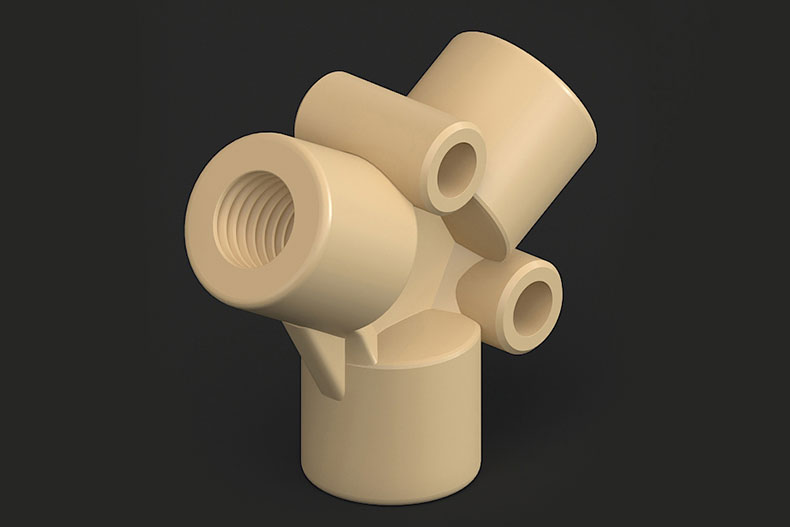

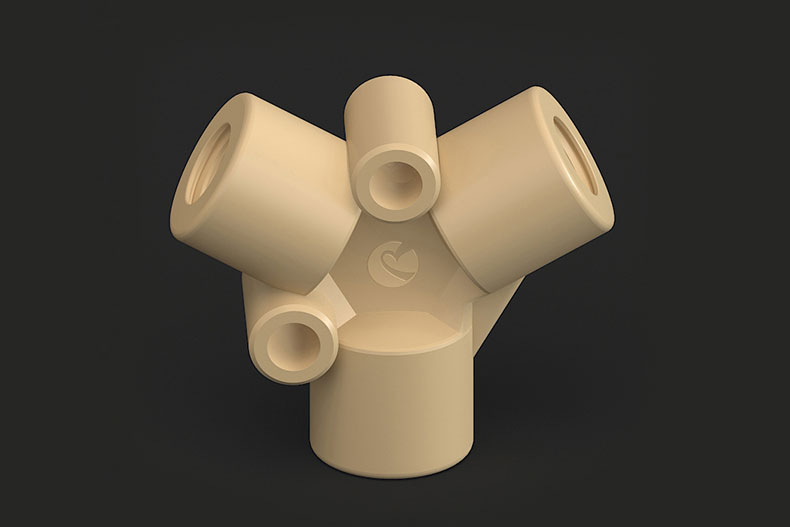

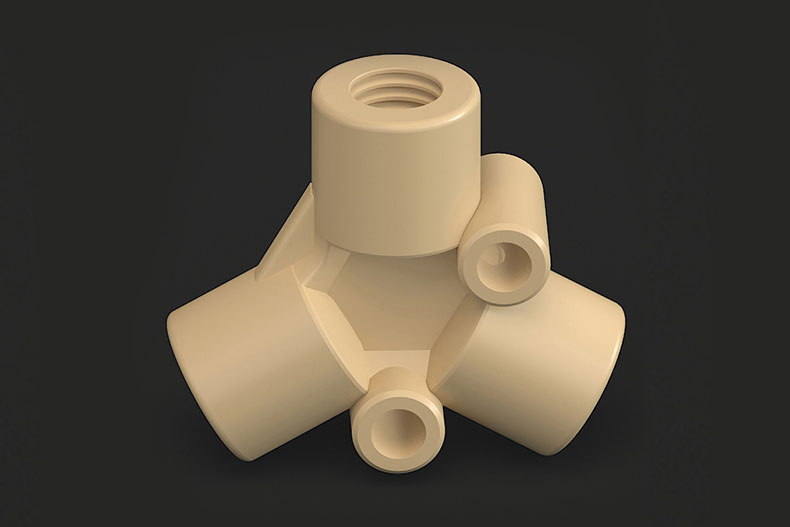

PEEK Female Thread Y Adapter

Name: PEEK Female Thread Y Adapter
Brand: Nanjing Runze Fluid Control Equipment Co., LTD.

Peek female thread Y adapter, one of RUNZE newest peek fittings. PEEK is a type of material with high mechanical strength, it is suitable for hydraulic systems that require repeated disassembly and relative high pressure in liquid chromatography and biological analysis instruments.

Send Mail

Features of PEEK Female Thread Y Adapter

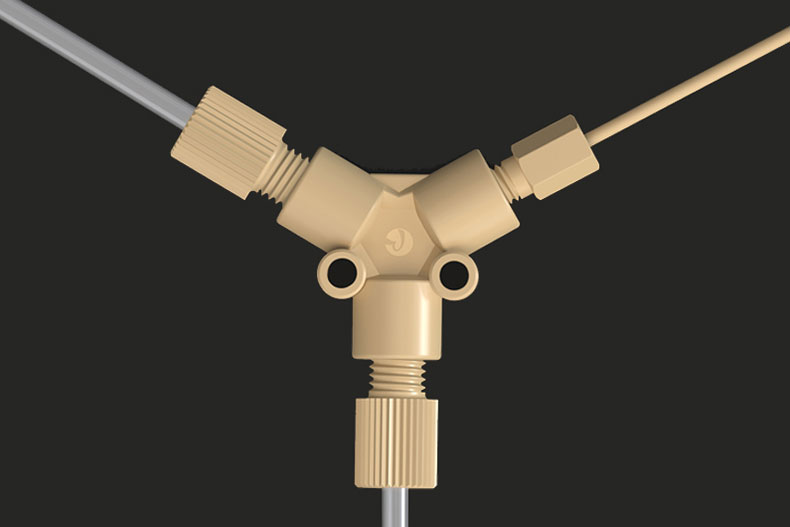

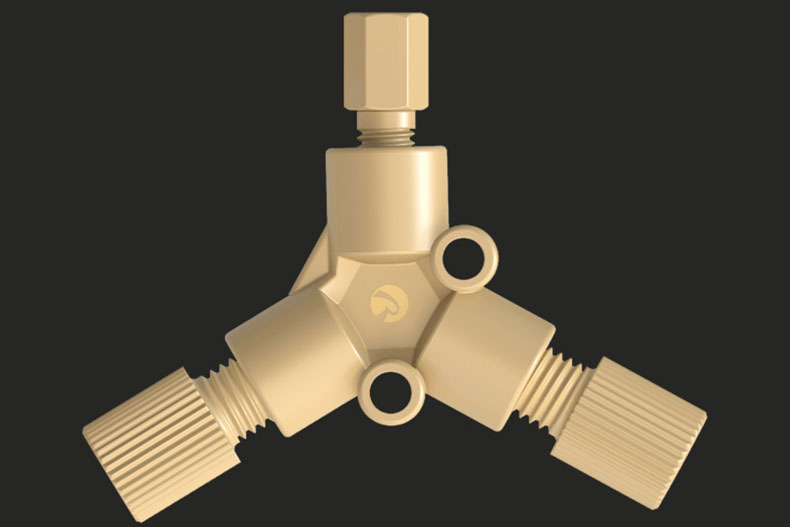

Designed to divide or gather two fluids together; ideal for pre-assembled tubing
Y-connection geometry reduces turbulence, reduces baseline noise, increases sensitivity, and improves analysis results
Long-term working temperature range -100℃~+250℃
Suitable for standard 10-32UNF conical fittings or 1/4-28UNF flat bottom threaded fittings

Specifications of PEEK Female Thread Y Adapter

SKU	Model	Thread	Flow path Diameter	Wetted liquid volume	Material
NY03-28-K
1011080001	NY03-28-K(0.8)	1/4-28UNF(*3)	0.8 mm	7.39mm³	PEEK natural
1011080002	NY03-28-K(1.25)	1/4-28UNF(*3)	1.25 mm	17.84mm³	PEEK natural
1011080003	NY03-28-K(2.0)	1/4-28UNF(*3)	2.0 mm	44.81mm³	PEEK natural
NT03-32-K
1011080004	NT03-32-K(0.8)	10-32UNF(*3)	0.8 mm	11.89mm³	PEEK natural
1011080005	NT03-32-K(1.25)	10-32UNF(*3)	1.25 mm	15.69mm³	PEEK natural
NY03-L28&R28&B32-K
1011080006	NY03-L28&R28&B32-K(0.8)	1/4-28UNF(*2) & 10-32UNF	0.8 mm	8.89mm³	PEEK natural
1011080007	NY03-L28&R28&B32-K(1.25)	1/4-28UNF(*2) & 10-32UNF	1.25 mm	17.17mm³	PEEK natural
NY03-L32&R32&B28-K
1011080008	NY03-L32&R32&B28-K(0.8)	1/4-28UNF & 10-32UNF(*2)	0.8 mm	10.93mm³	PEEK natural
1011080009	NY03-L32&R32&B28-K(1.25)	1/4-28UNF & 10-32UNF(*2)	1.25 mm	16.41mm³	PEEK natural

Related Products of PEEK Female Thread Y Adapter

It is recommended to be used with peek fittings and tubes. Please refer to https://www.runzefluid.com/products/peek-fittings/ and https://www.runzefluid.com/products/fluid-tubing/

PEEK flanged fittings- two pieces	1/4-28UNF thread
PEEK flangeless fittings- two pieces	1/4-28UNF thread
PEEK flangeless fittings- three pieces	1/4-28UNF thread
PEEK one-piece hand tightening fittings	1/4-32UNF thread
PEEK hand tightening fittings - two pieces	1/4-32UNF thread
PEEK capillary tube
FEP tube
PTFE tube
