Elbow Barbed Bulkhead Connector

Elbow Barbed Bulkhead Connector,meet elbow flow path design requirements.Made of imported PP material, with precise dimensions and no burrs or black spots.We can meet the needs of various fields, such as laboratories, medical analysis, environmental testing, petroleum analysis, etc.

  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
  • Elbow Barbed Bulkhead Connector
Send Mail
Share this product:

Specification of Elbow Barbed Bulkhead Connector


Product NameElbow Barbed Bulkhead Connector
MaterialConnector:PP    Nut:PPS
ColorPP natural+PPS black
Thread1/4-28UNF、M10、M12、M13、M16
Thermal performance120℃ without deformation
FunctionElbow flow path transport

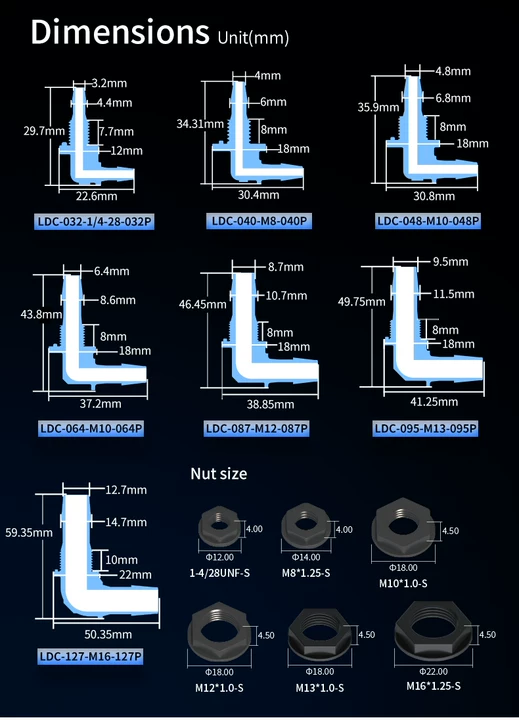

Dimension (unit: mm) of Elbow Barbed Bulkhead Connector
