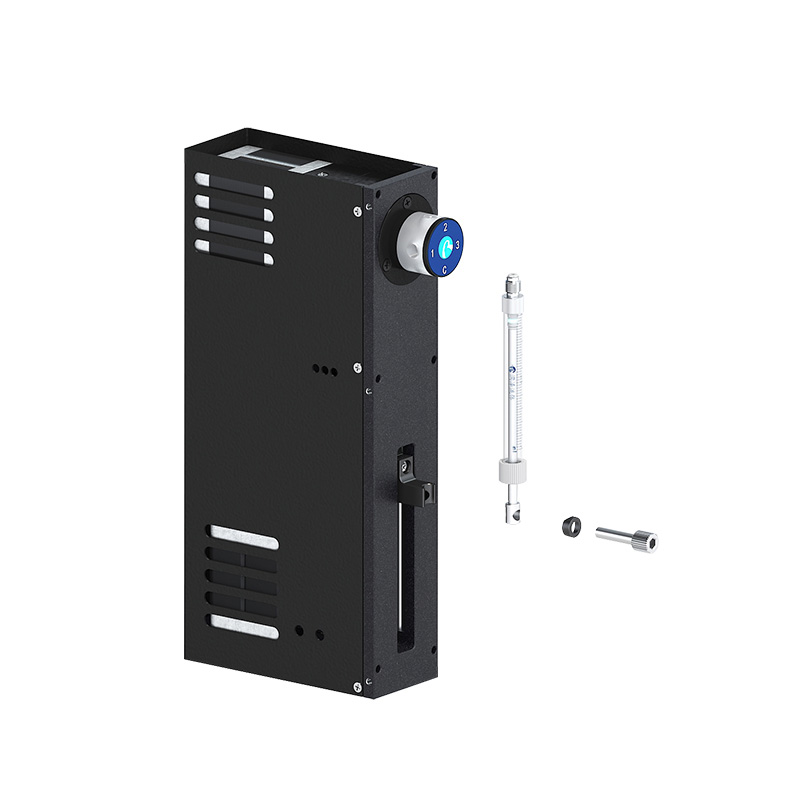

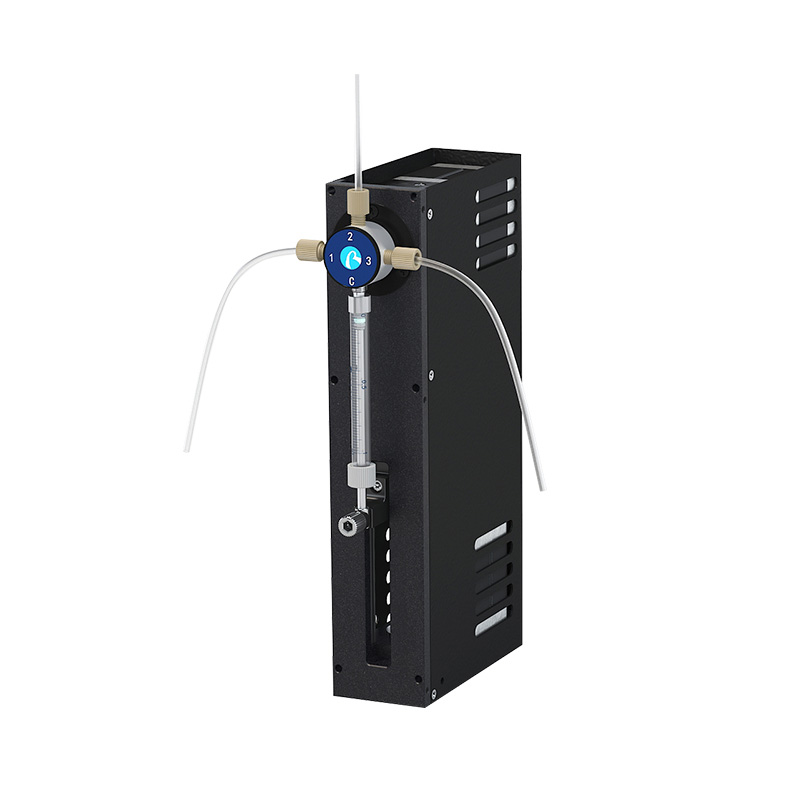

Smart SY-06B syringe pump works for continuous liquid delivering from microliters to milliliters in very high accuracy. It is suitable for applications ranging from 50μl to 10ml to meet a variety of applications. Compared with other Runze's syringe pumps, it is small in size and saves installation space.
SY-06B is a syringe pump with extraordinary-precision in the series of high-end products developed by Runze Fluid. Accommodates distribution valves and syringes in a variety of configurations. Transfers liquid in high precision which can meet most users' requirements. Can be used in series with multiple pumps. Fully programmable pump module with open framework, which handling fluids from microliters to milliliters with extraordinary accuracy and precision. With functions in automatic pipetting, dilution and dispensing. Controlled by an external computer or microprocessor.
Runze Fluid Smart SY-06B is designed with an identical 60mm stroke length and advanced micro-stepping drive technology. The SY-06B provides a seamless migration path for engineers requiring large-volume accuracy (up to 25mL) and ultra-low pulsation dosing.
Runze Fluid engineered the SY-06B to match the critical performance parameters of the CX series while introducing modern enhancements in durability and communication.
| Valve Model | MO1、M02、M03、M04、M05、M06、M10、M12 |
| Rated stroke (control steps) | 60mm (6000 steps standard mode) |
| Linear speed | 0.005mm/s～30mm/s |
| Running time (per rated stroke) | 2s～12000s (media: water) |
| Resolution | 0.01mm (per step) |
| Actuator | Trapezoidal screw (Lead 2mm) |
| Input signal | 3 channels of TTL signal input |
| Connection | 1/4-28UNF |
| Valve switching time | ≤280 ms (between two adjacent ports) |
| Wetted material | Borosilicate glass, PCTFE, Sapphire, PTFE |
| Max. Pressure Rating | 0.7 Mpa |
| Address &Parameter setting | Via communication |
| Communication interface | RS232/RS485/CAN |
| Baud rate | RS232/RS485: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps CAN: 100Kbps, 200Kbps, 500Kbps, 1Mbps |
