Luer-to-Thread Adapters

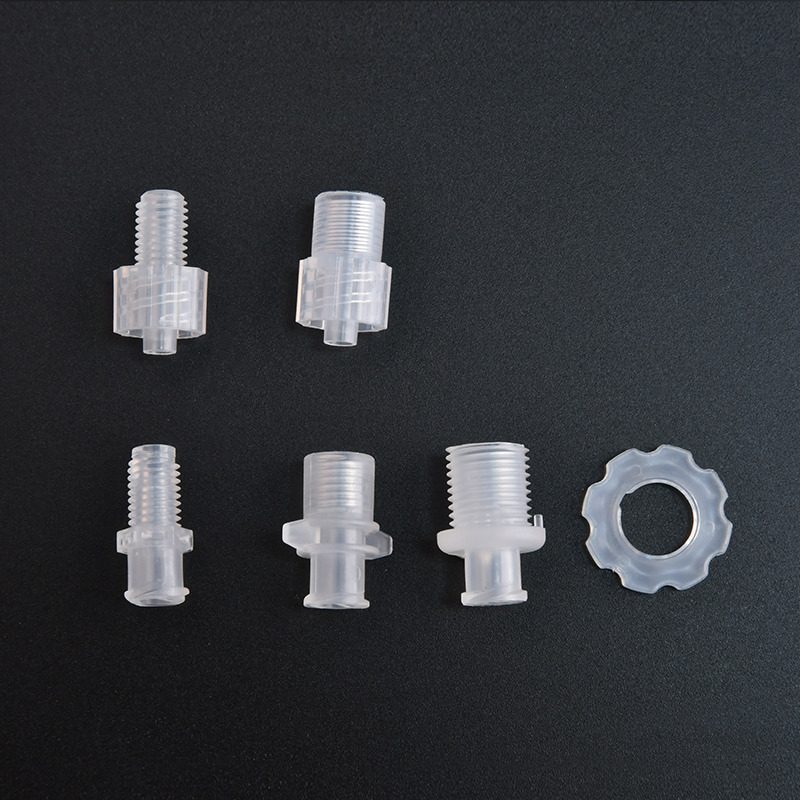

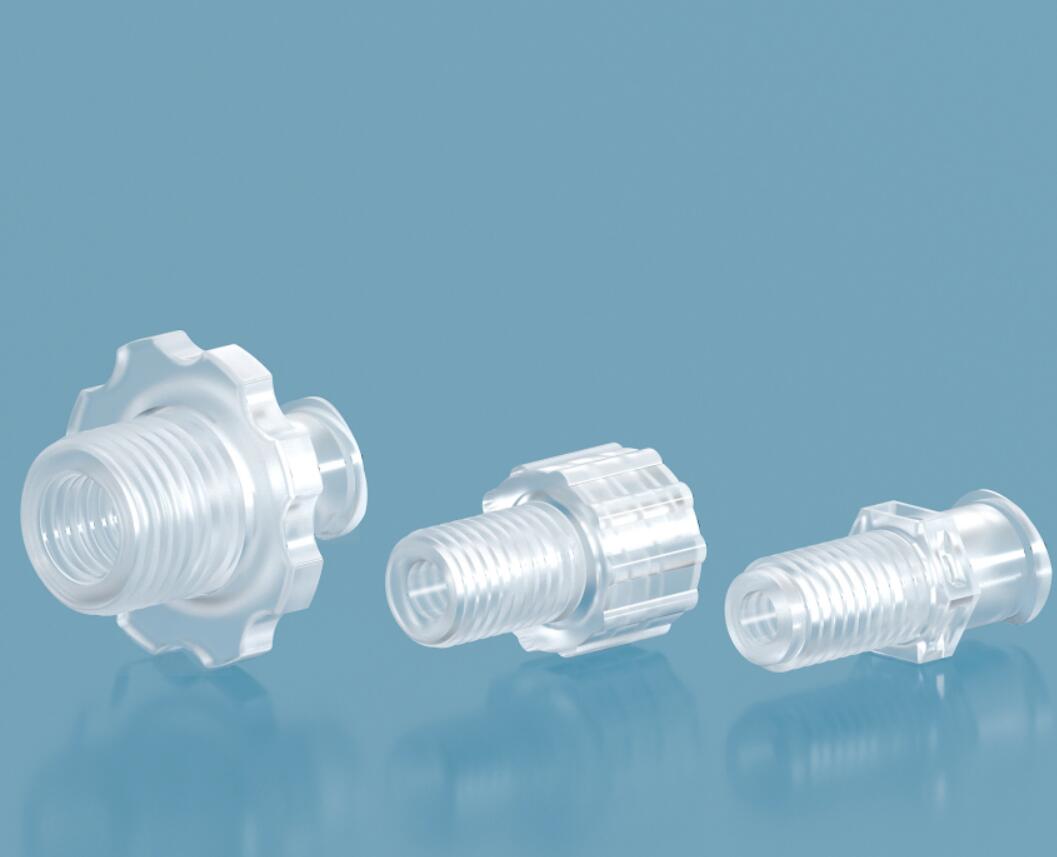

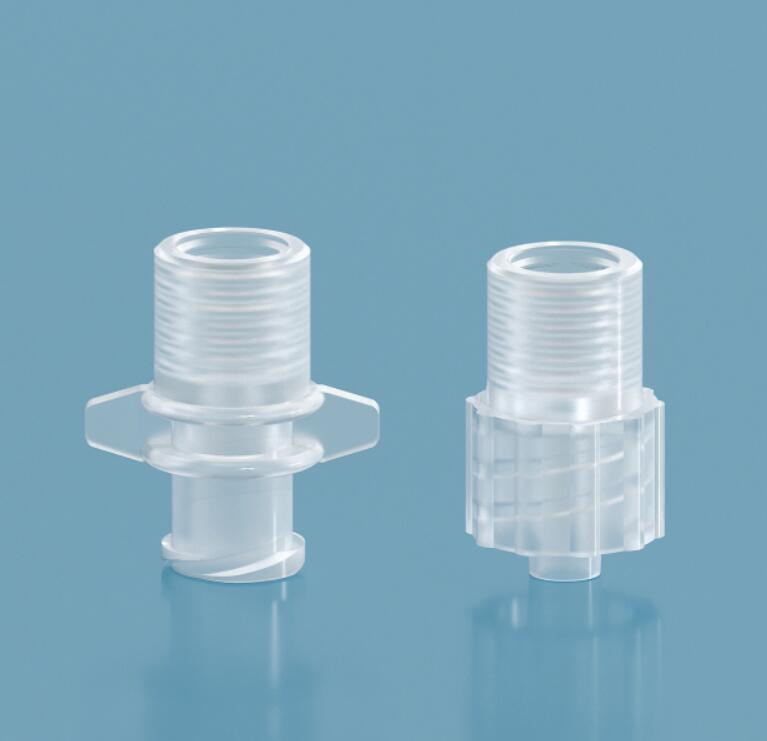

Luer-to-Thread adapters have the options of male Luer×female/male 1/4-28UNF, female Luer×female/male 1/4-28UNF, and the female Luer×male M10 for options, all are made of medical grade polypropylene with high quality. They are available to connect with products feature a male/female luer slip or systems with threaded ports without the need for barbs or nuts, and connect with 1/4-28 thread ports or fittings, all parts meet tight dimensional tolerances for increased reliability and process purity.

  • Luer-to-Thread Adapters
  • Luer-to-Thread Adapters
  • Luer-to-Thread Adapters
  • Luer-to-Thread Adapters
  • Luer-to-Thread Adapters
  • Luer-to-Thread Adapters
  • Luer-to-Thread Adapters
  • Luer-to-Thread Adapters
Send Mail
Share this product:

Video of Luer-to-Thread Adapter

Specification of Luer-to-Thread Adapter



Model No.

Model Name

Material

RH-G-(1/4-28)N

Male Luer to 1/4-28UNF Female thread adapter




Polypropylene

RH-M-(1/4-28)N

Female Luer to 1/4-28UNF Female thread adapter

RH-G-(1/4-28)W

Male Luer to 1/4-28UNF Male thread adapter

RH-M-M10W

Female Luer to M10 Bulkhead Male thread adpter

RH-M-(1/4-28)W

Female Luer to 1/4-28UNF Male thread apter


Note:

*PP material Luer-to-Thread Adapters are in stock, PTFE material need to be customized with MOQ at least 2000 pieces per model, other materials can be customized with MOQ at least 5000 pieces per model, please consult customer service for more information.

* Standard nut for Luer to thread bulkhead adapter is LM-M10P single tooth nut, but M10*1 nut  (pps material ) is also available for purchase, which is easier for installation.

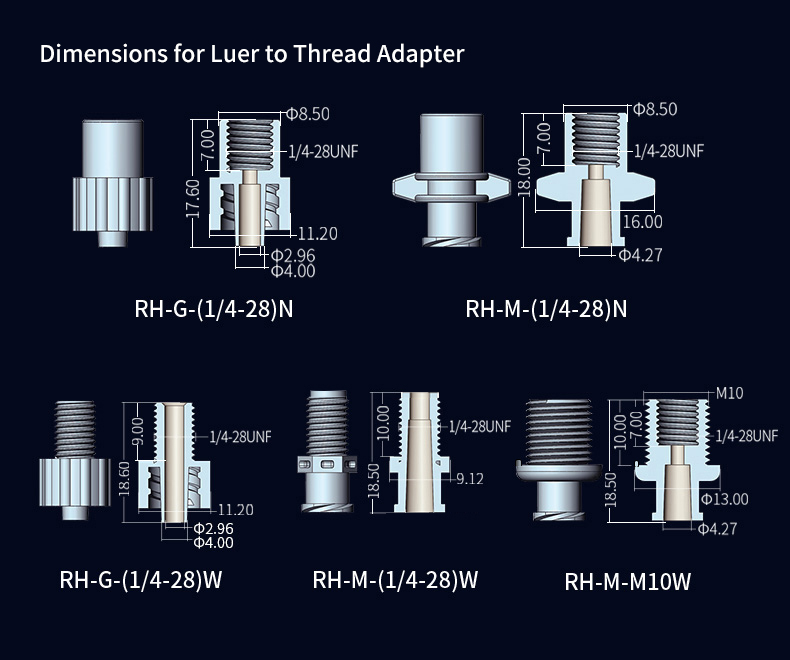

Dimension (unit: mm) of Luer-to-Thread Adapter


Application
