Torque Tooling Three-Piece Union

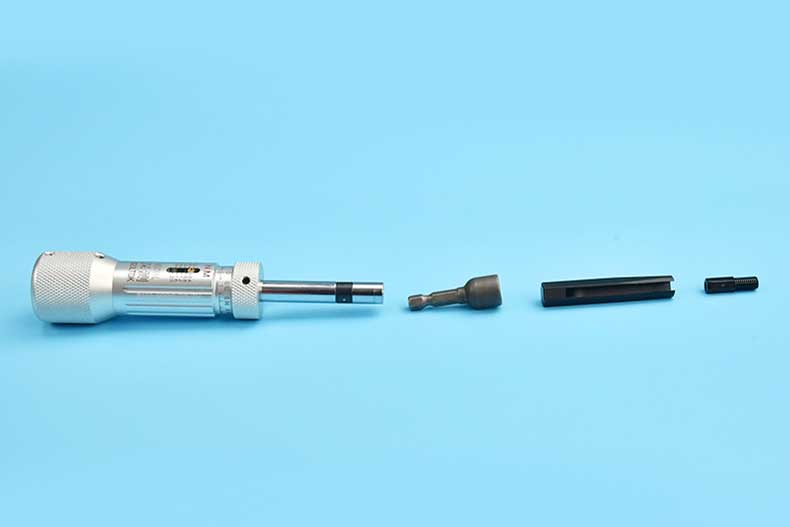

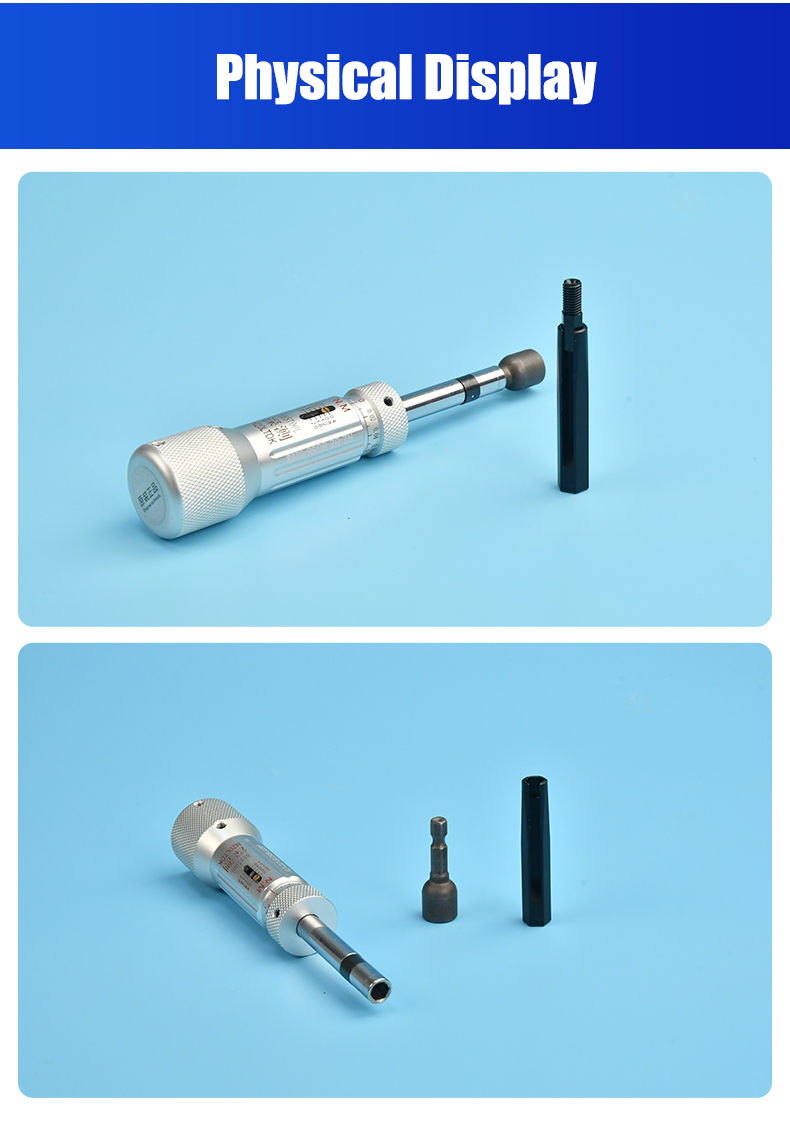

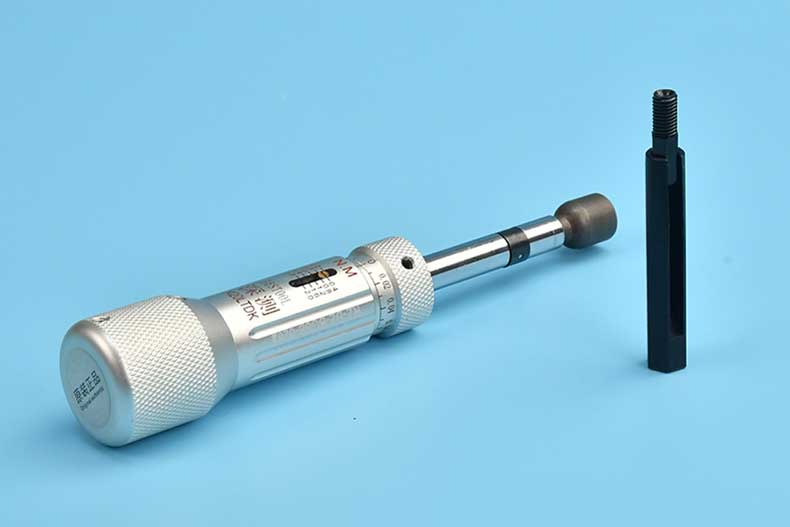

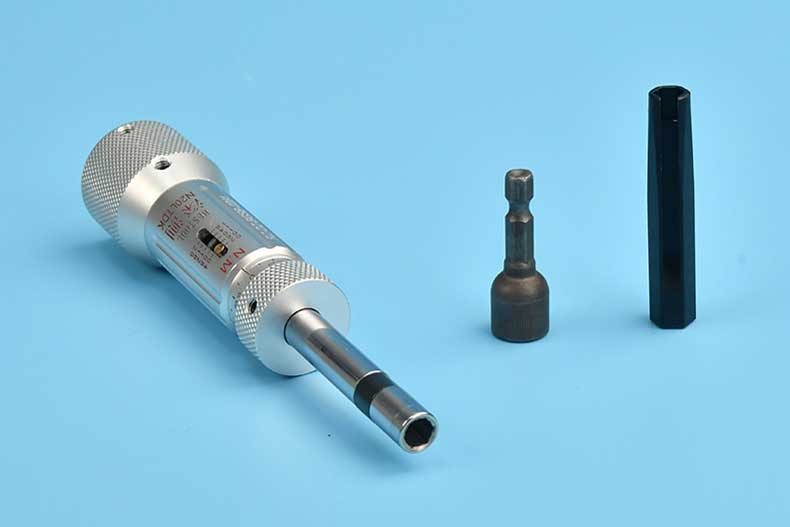

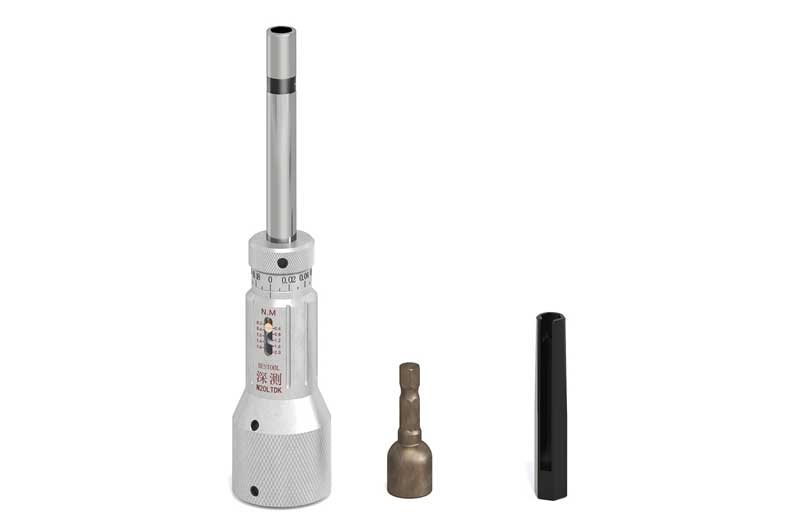

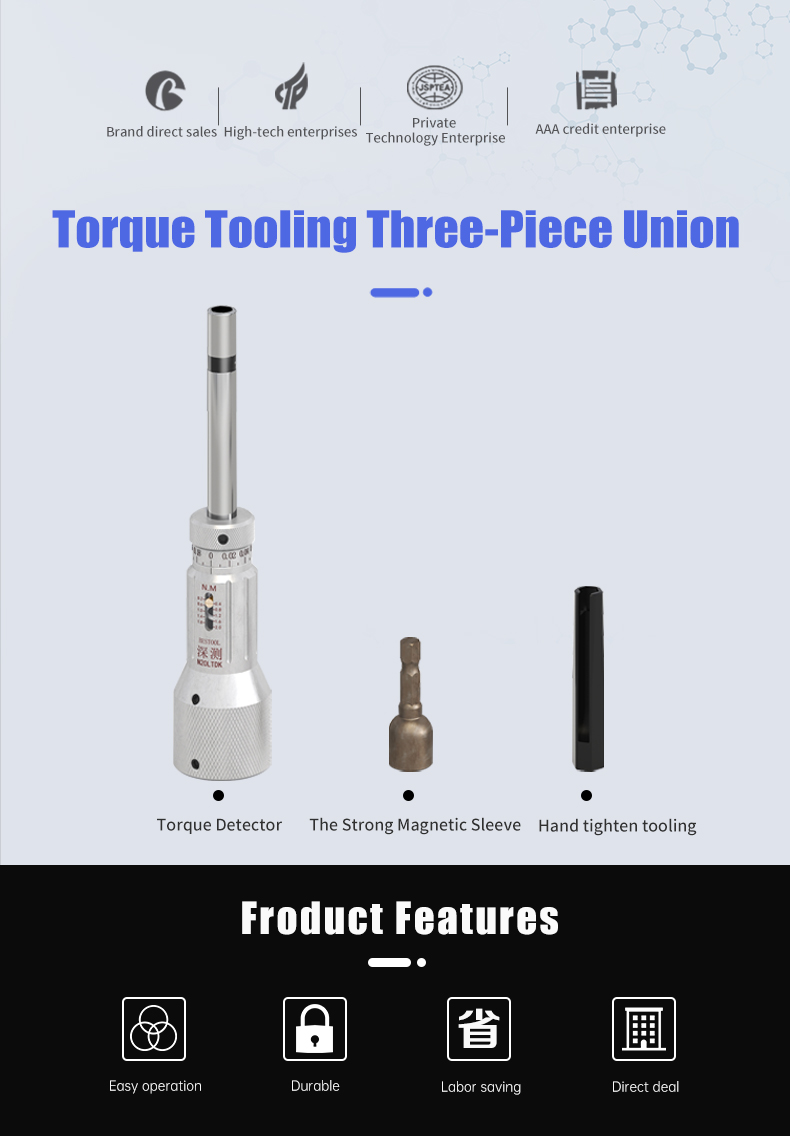

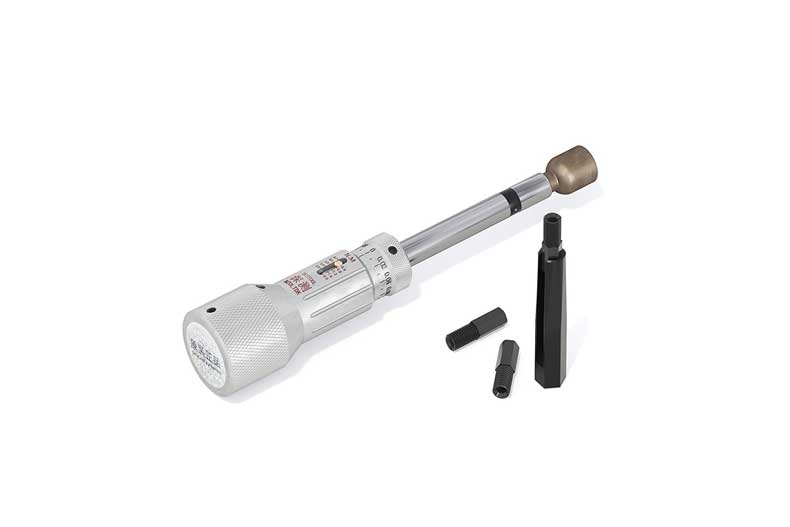

Torque tooling three-piece union is designed by Runze Fluid to solve many customers' fittings installation problems, more suitable for fittings which located in narrow space. It consists of three parts, including torque detector, strong magnetic sleeve, and hand tighten tooling. Torque tooling three-piece union is easy operation, time-saving & high efficiency, and adjustable.

  • Torque Tooling Three-Piece Union
  • Torque Tooling Three-Piece Union
  • Torque Tooling Three-Piece Union
  • Torque Tooling Three-Piece Union
  • Torque Tooling Three-Piece Union
  • Torque Tooling Three-Piece Union
  • Torque Tooling Three-Piece Union
  • Torque Tooling Three-Piece Union
  • Torque Tooling Three-Piece Union
  • Torque Tooling Three-Piece Union
  • Torque Tooling Three-Piece Union
  • Torque Tooling Three-Piece Union
Send Mail
Share this product:

Video of Torque Tooling Three-Piece Union



Features of Torque Tooling Three-Piece Union

  • Time-saving and high efficiency.

  • Labor saving, especially for the narrow space installation.

  • Prevent leakage due to untightened fittings.

  • Prevent the tube from falling off due to excessive torque.


Specifications of Torque Tooling Three-Piece Union


SKU

Model

Product Name

Description

1006010472

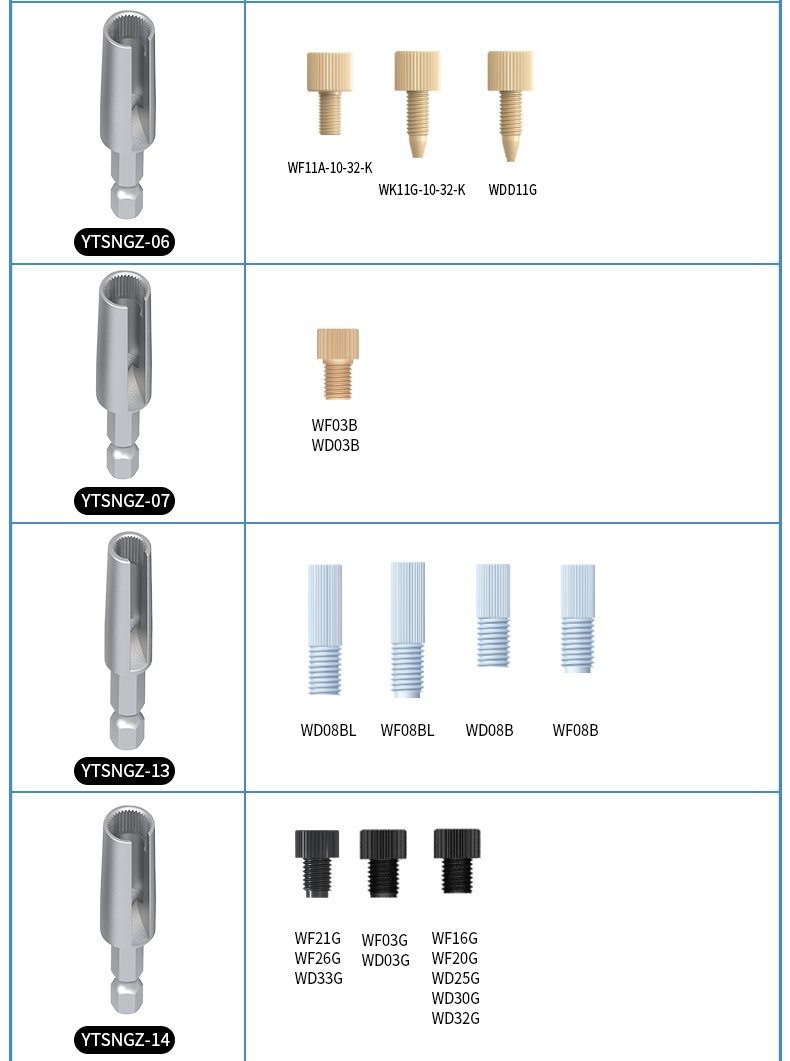

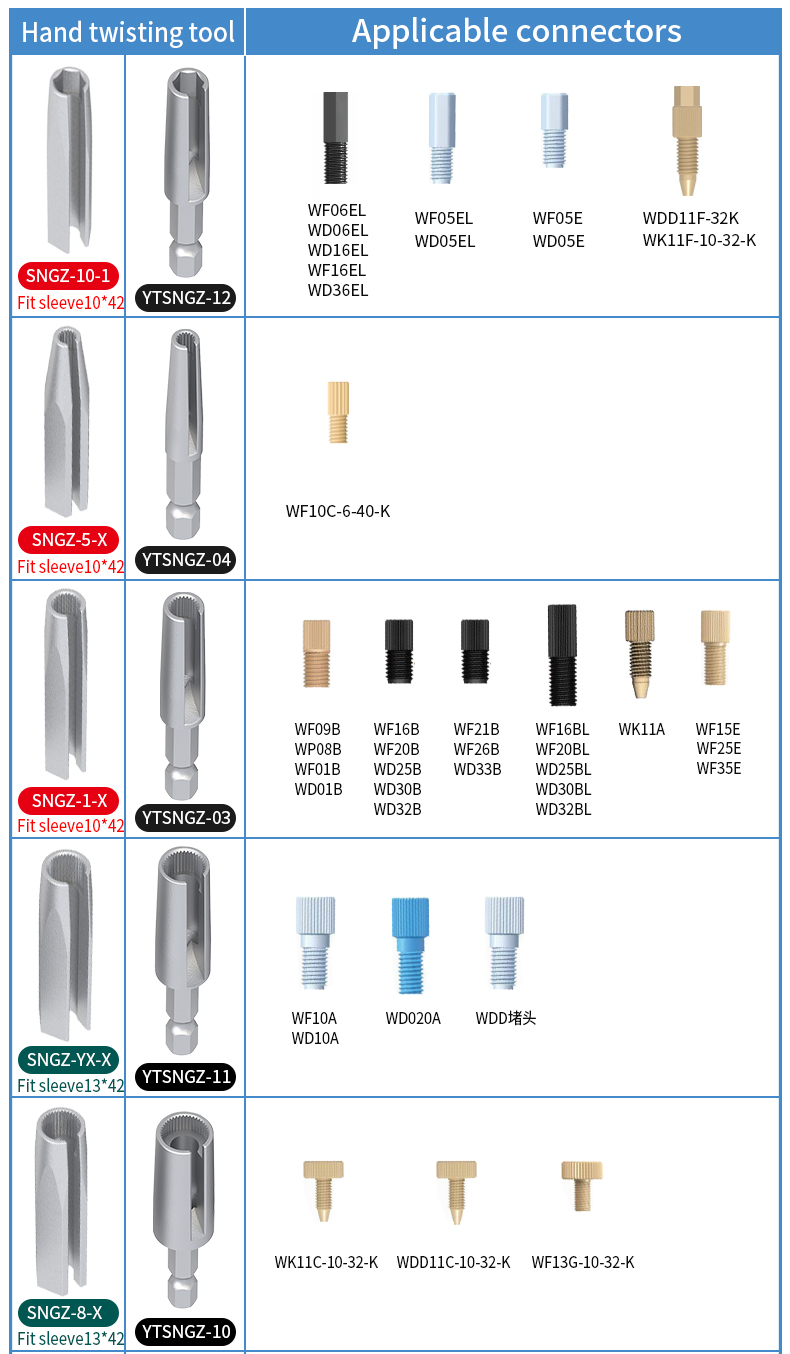

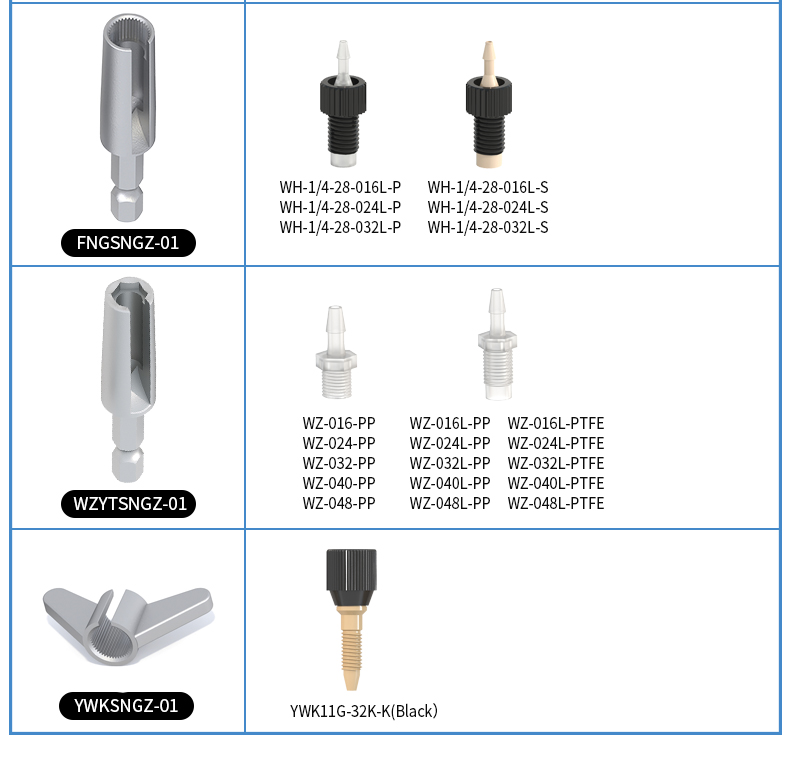

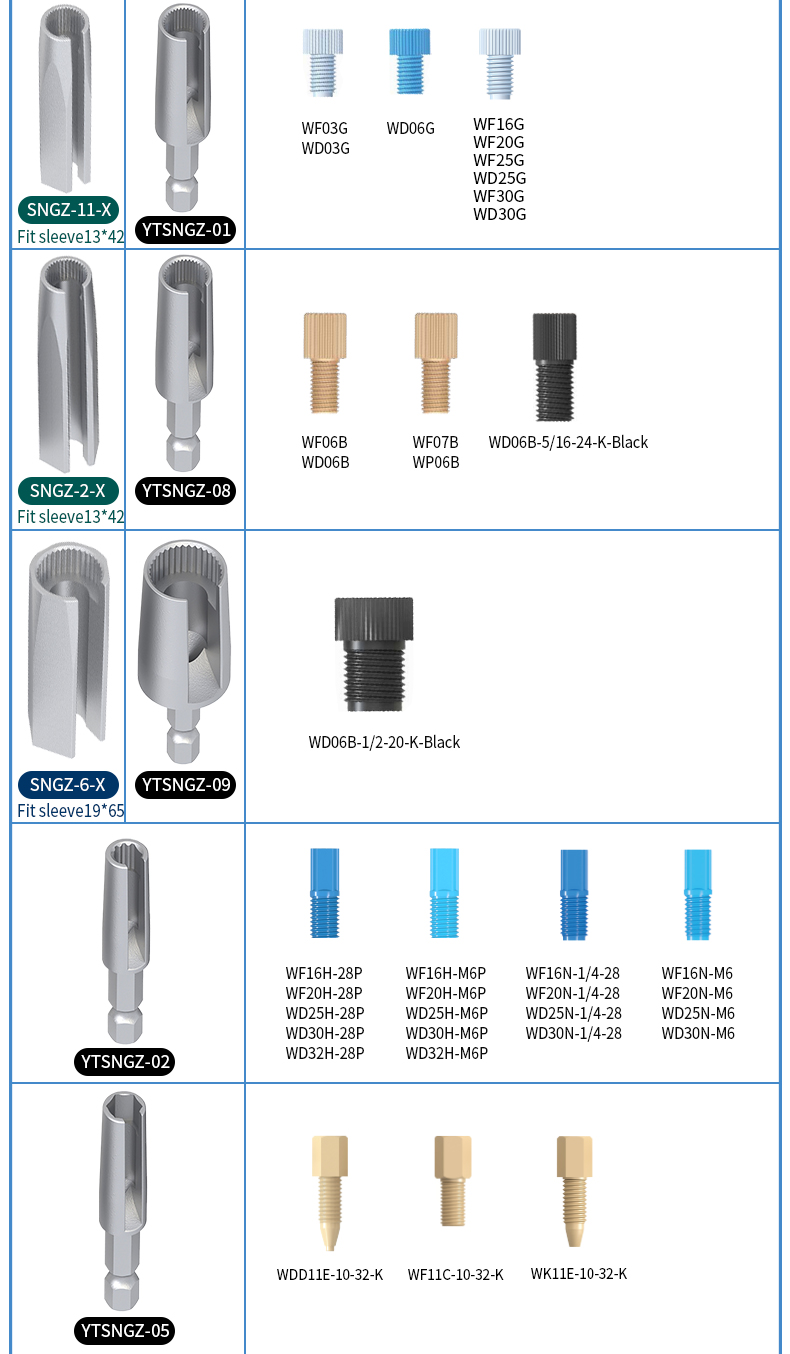

SNGZ-11-X、SNGZ-1-X、SNGZ-2-X、SNGZ-5-X、SNGZ-8-X、SNGZ-6-X、SNGZ-YX-X、SNGZ-10-1、YTSNGZ-03、YTSNGZ-02、YWKSNGZ-01

Hand  tighten tooling

For anti-twist flangeless fitting two-piece set

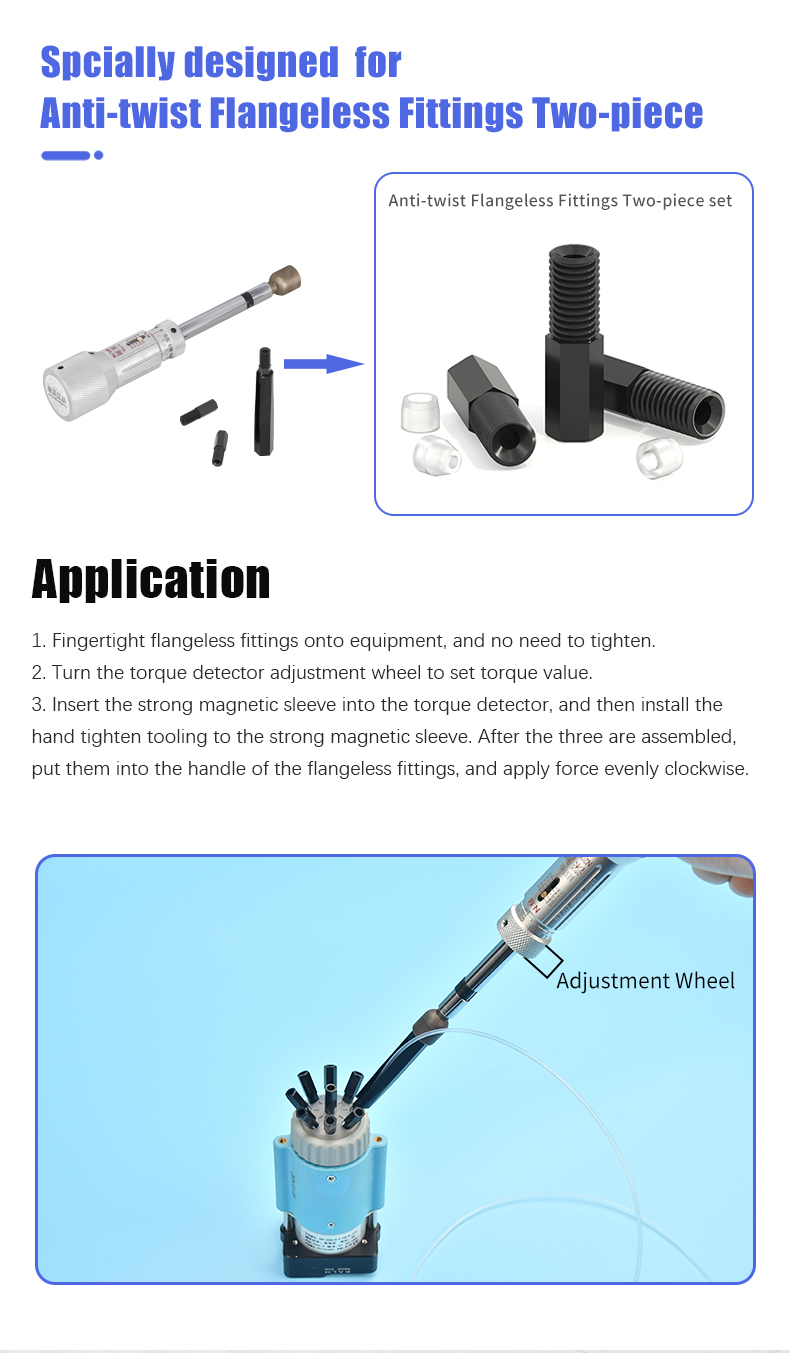

Application of Torque Tooling Three-Piece Union

  • Fingertight flangeless fittings onto equipment, and no need to tighten.

  • Turn the torque detector adjustment wheel to set torque value.

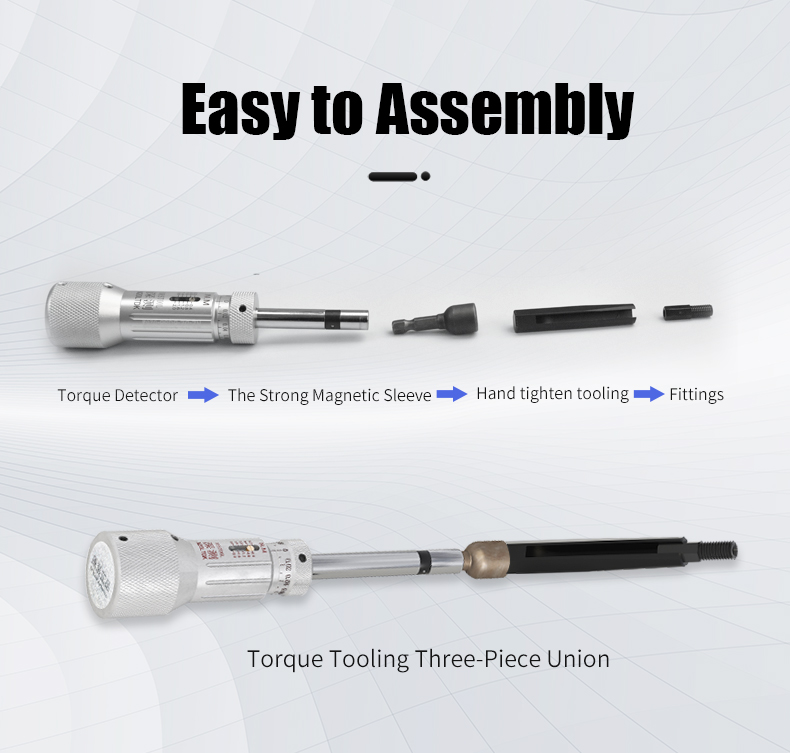

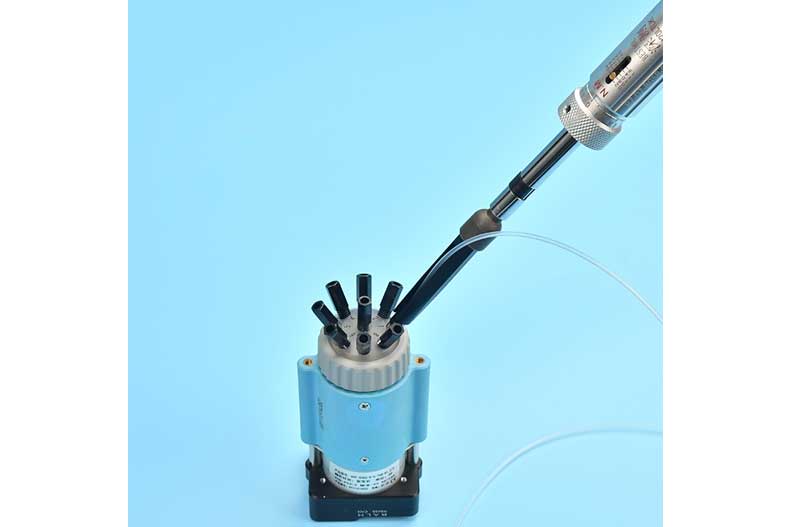

  • Insert the strong magnetic sleeve into the torque detector, and then install the hand tighten tooling to the strong magnetic sleeve. After the three are assembled, put them into the handle of the flangeless fittings, and apply force evenly clockwise.


Details of Torque Tooling Three-Piece Union
