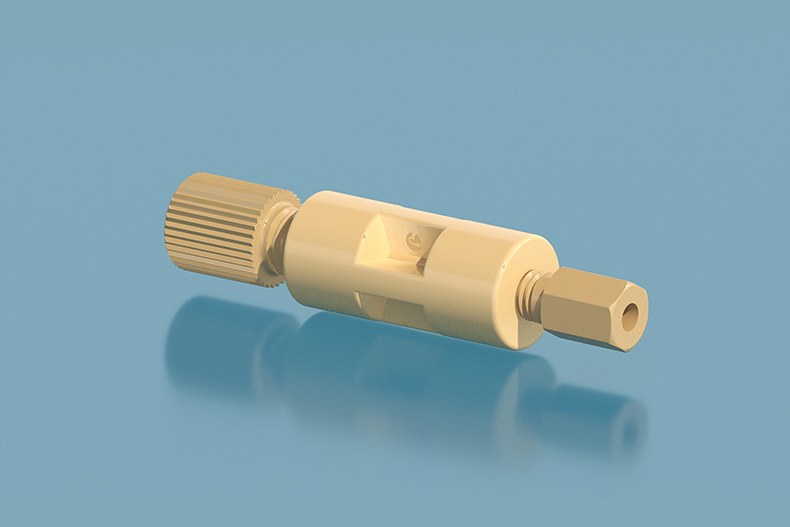

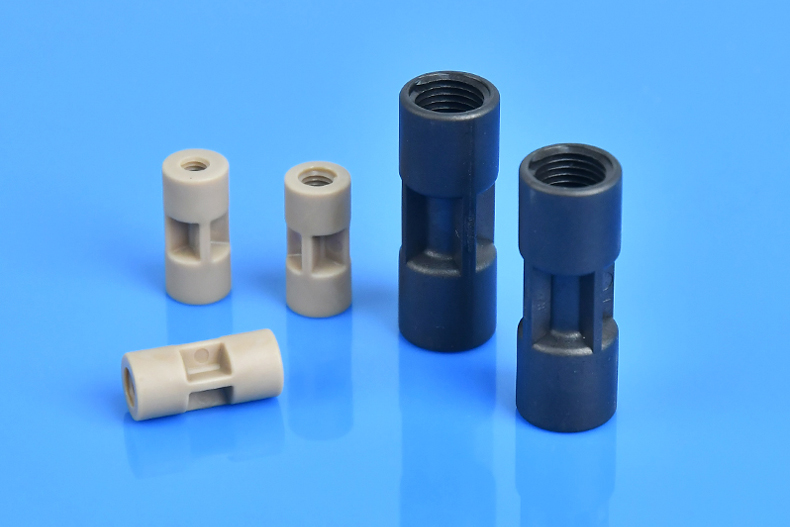

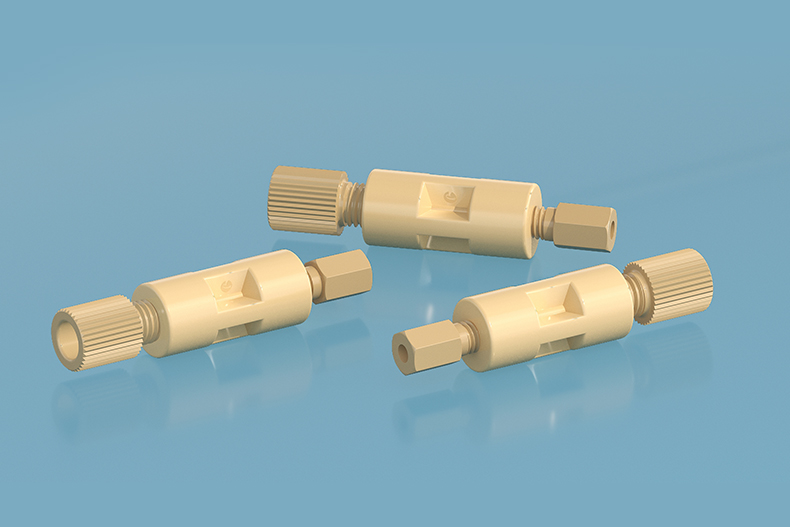

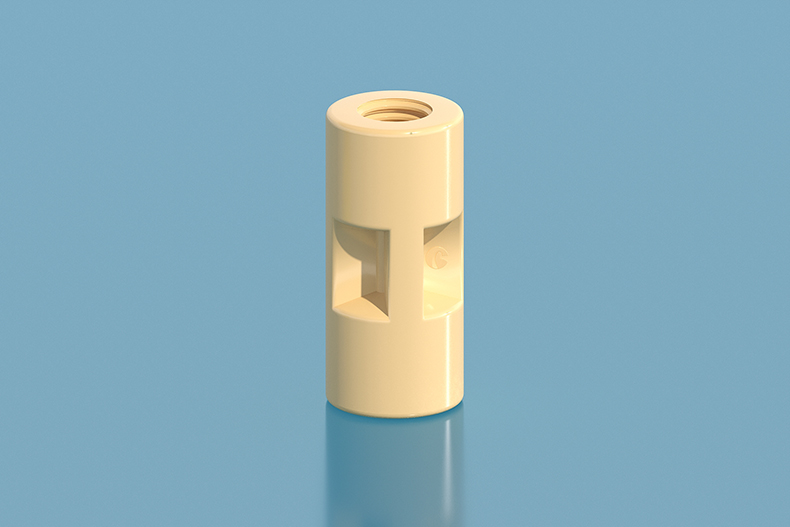

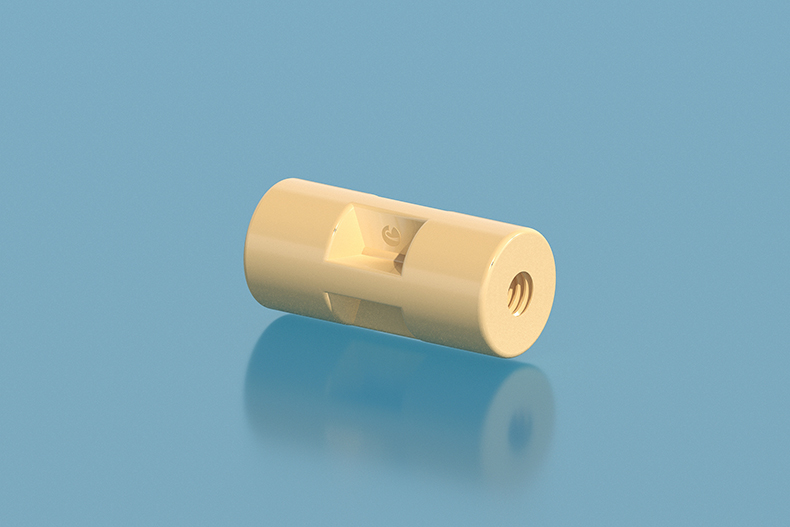

PEEK Female Thread Straight Adapter

Peek female thread straight adapter, one of RUNZE newest peek fitting, which can be used for tubing OD1.6mm. PEEK is a type of material with high mechanical strength, it is suitable for hydraulic systems that require repeated disassembly and relative high pressure in liquid chromatography and biological analysis instruments.

  • PEEK Female Thread Straight Adapter
  • PEEK Female Thread Straight Adapter
  • PEEK Female Thread Straight Adapter
  • PEEK Female Thread Straight Adapter
  • PEEK Female Thread Straight Adapter
  • PEEK Female Thread Straight Adapter
  • PEEK Female Thread Straight Adapter
  • PEEK Female Thread Straight Adapter
  • PEEK Female Thread Straight Adapter
  • PEEK Female Thread Straight Adapter
  • PEEK Female Thread Straight Adapter
  • PEEK Female Thread Straight Adapter

Video of PEEK Female Thread Straight Adapter




Features of PEEK Female Thread Straight Adapter

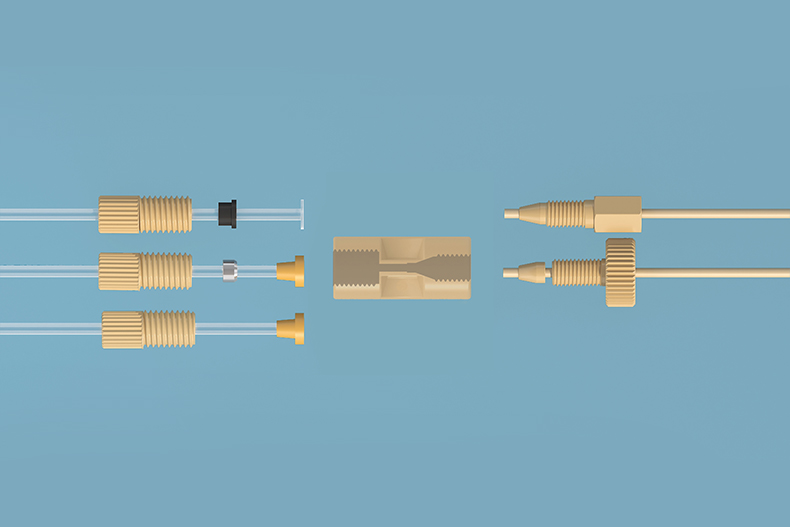

  • Connecting fittings with the same or different threads together with rigid tube connection system, connection without leakage can be achieved

  • Long-term working temperature range -100℃~+250℃

  • Suitable for standard 10-32UNF conical fittings or 1/4-28UNF flat bottom threaded fittings

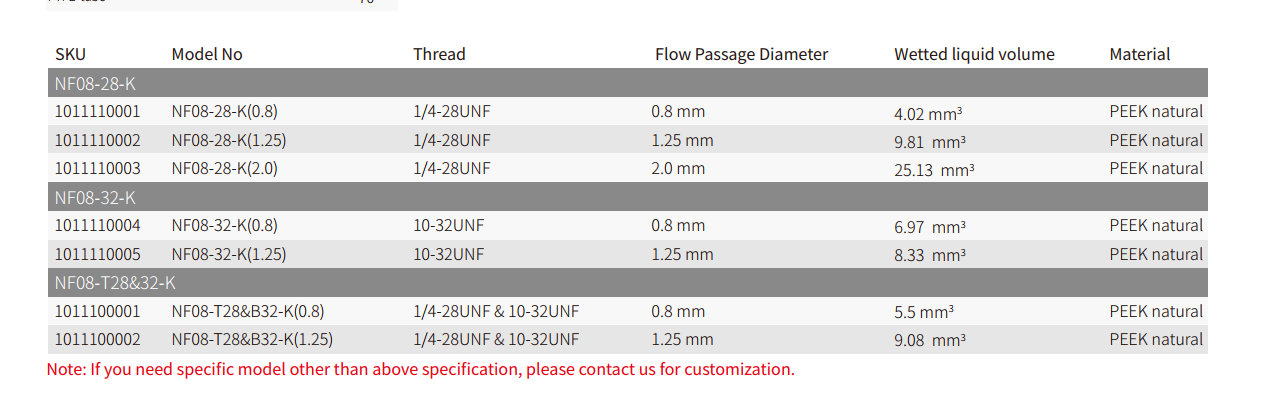

Specifications of PEEK Female Thread Straight Adapter


SKU

Model

Thread

Flow Passage Diameter

Pressure Rating

Material

1011010005

WK11A-10-32-K

10-32UNF Coned

1.6mm

8.64Mpa

PEEK natural

1011010006

WK11E-10-32-K

10-32UNF Coned

1.6mm

8.64Mpa

PEEK natural

1011010007

WK11C-10-32-K

10-32UNF Coned

1.6mm

8.64Mpa

PEEK natural

1011010008

WK11G-10-32-K

10-32UNF Coned

1.6mm

8.64Mpa

PEEK natural


Related Products


It is recommended to be used with peek fittings and tubes. Please refer to https://www.runzefluid.com/products/peek-fittings/ and https://www.runzefluid.com/products/fluid-tubing/



PEEK flanged fittings- two pieces

1/4-28UNF thread

PEEK flangeless fittings- two pieces

1/4-28UNF thread

PEEK flangeless fittings- three pieces

1/4-28UNF thread

PEEK one-piece hand tightening fittings

1/4-32UNF thread

PEEK hand tightening fittings - two pieces

1/4-32UNF thread

PEEK capillary tube


FEP tube


PTFE tube

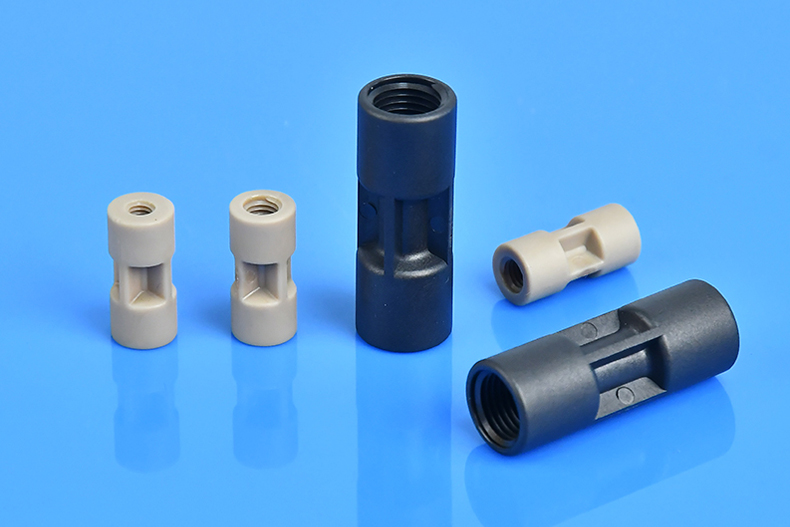

Application of PEEK Female Thread Straight Adapter


PEEK Female Thread Straight Adapter


PEEK Female Thread Straight Adapter


PEEK Female Thread Straight Adapter

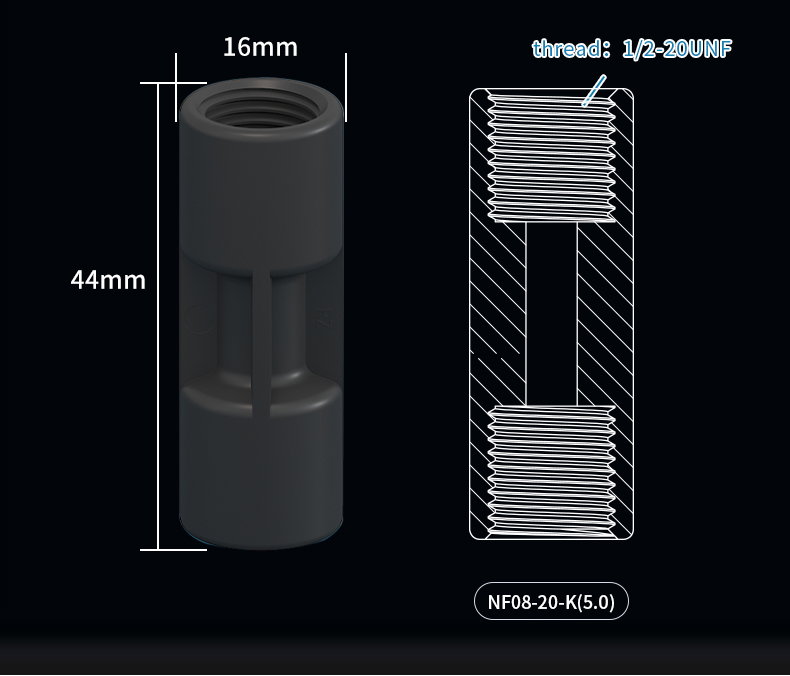

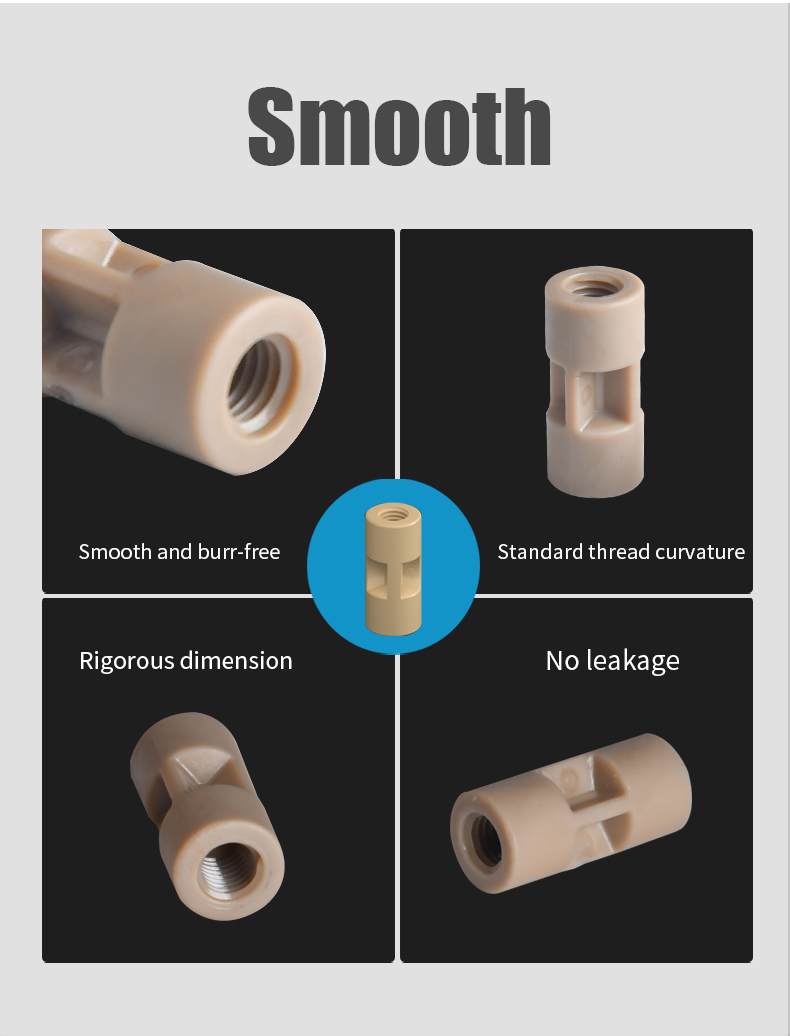

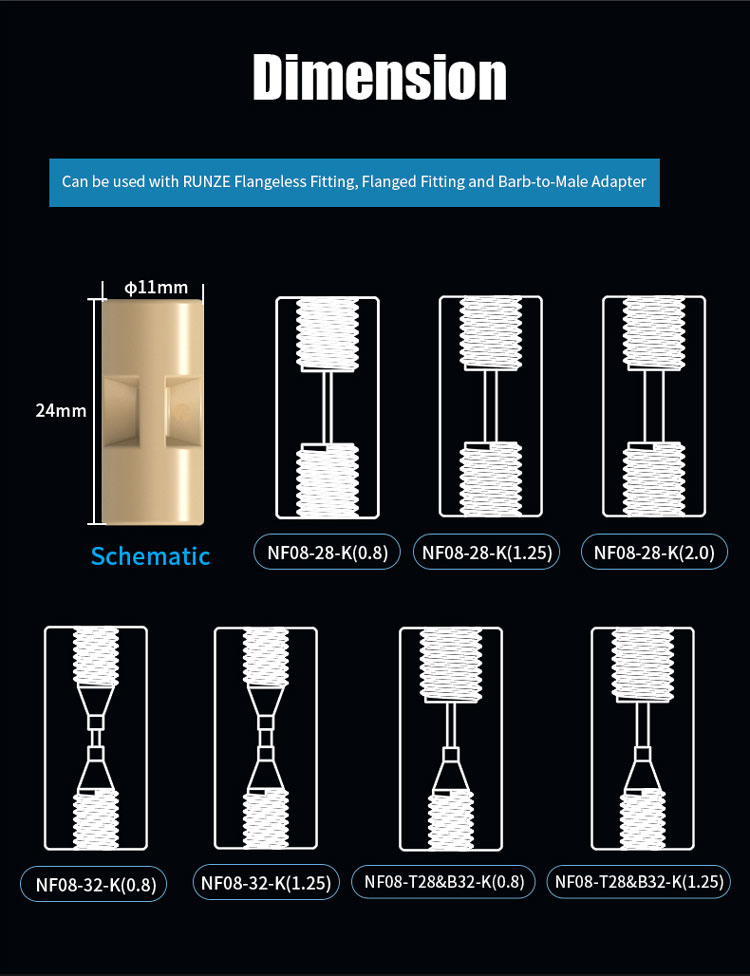

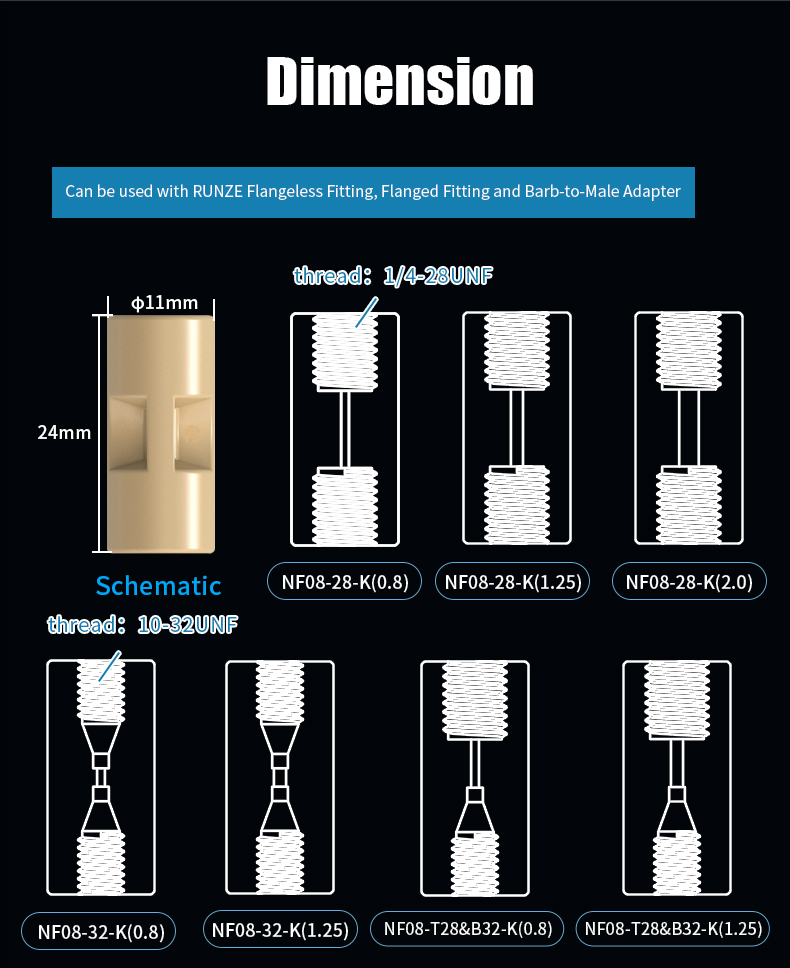

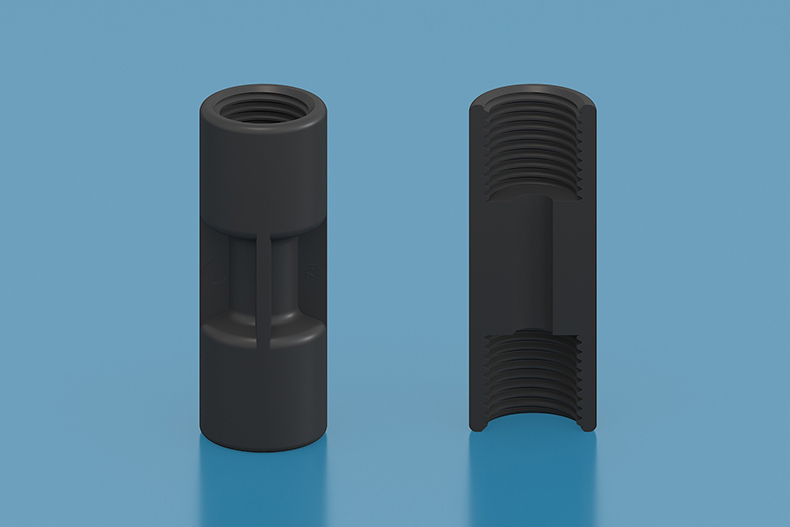

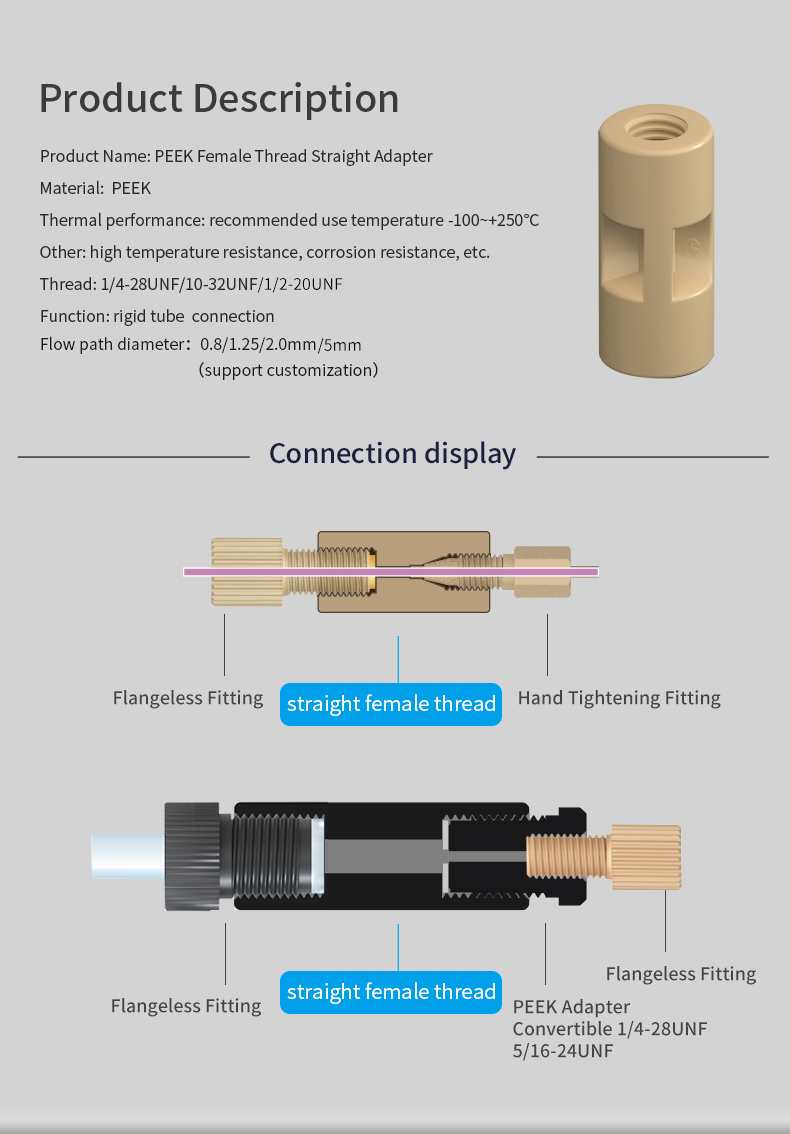

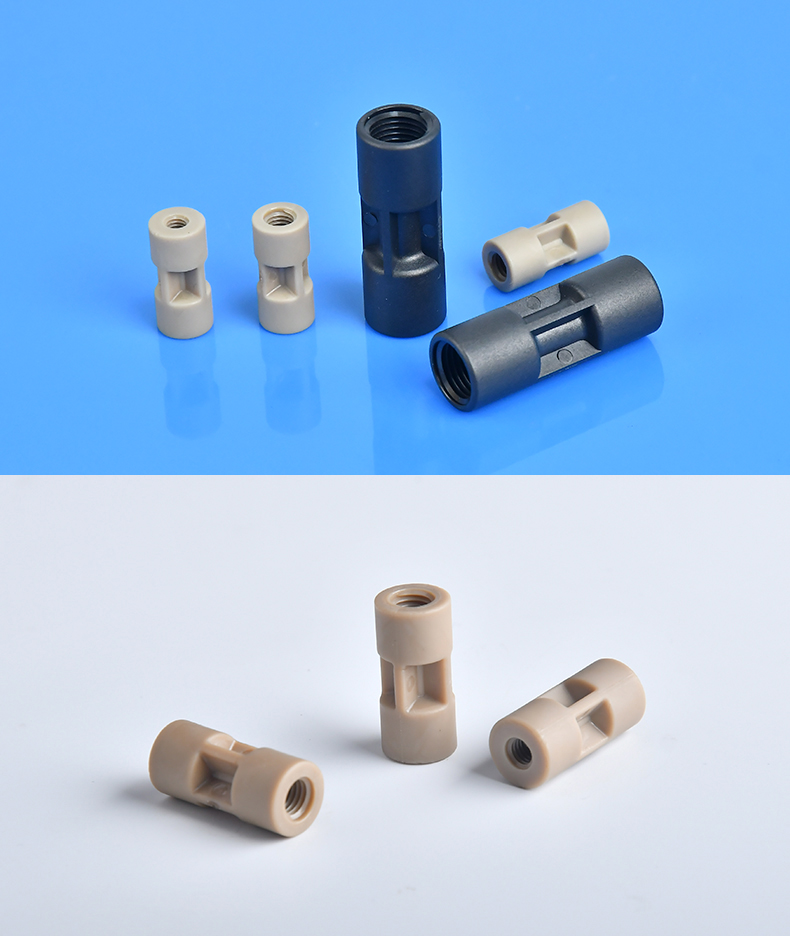

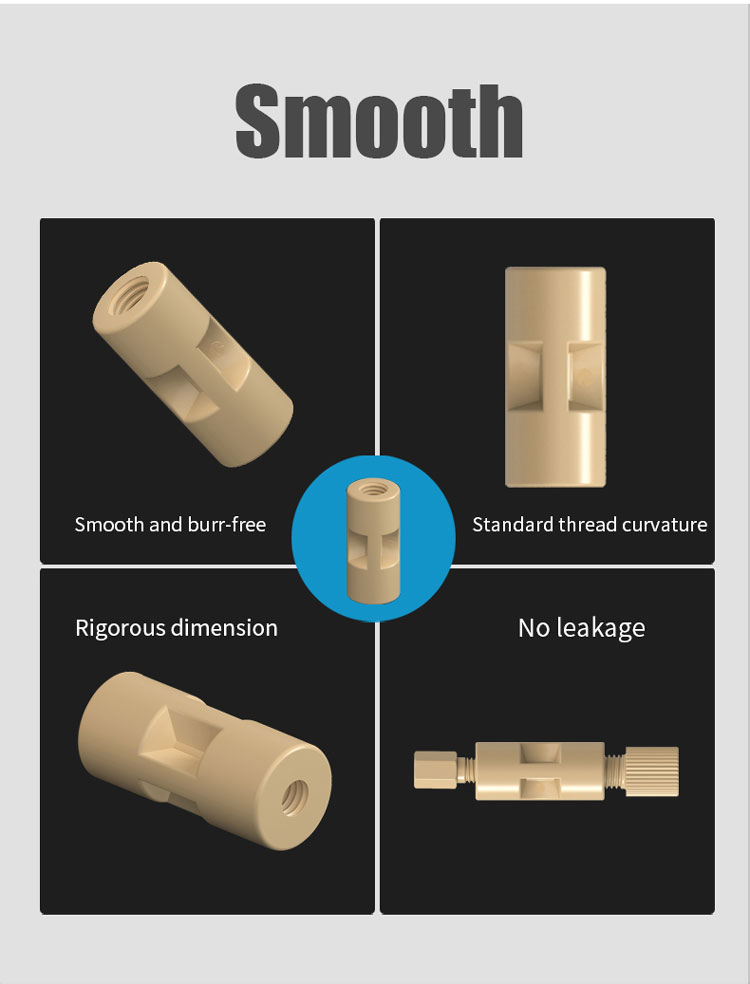

Details of PEEK Female Thread Straight Adapter


Details of PEEK Female Thread Straight Adapter
