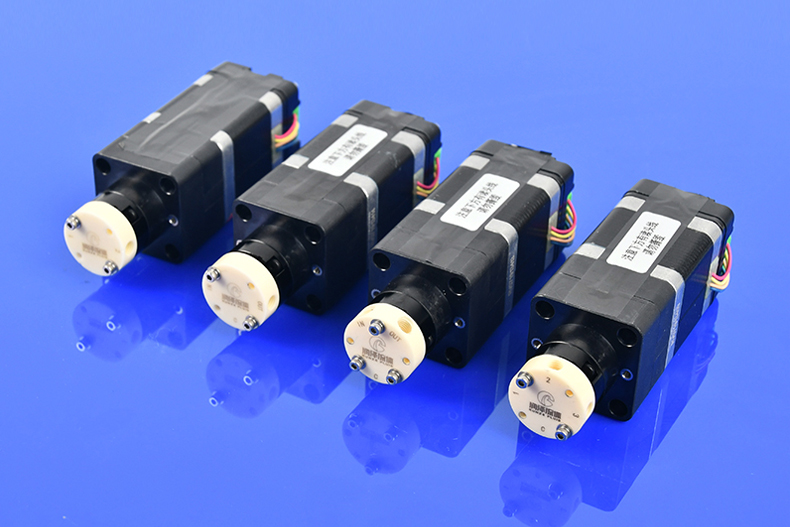

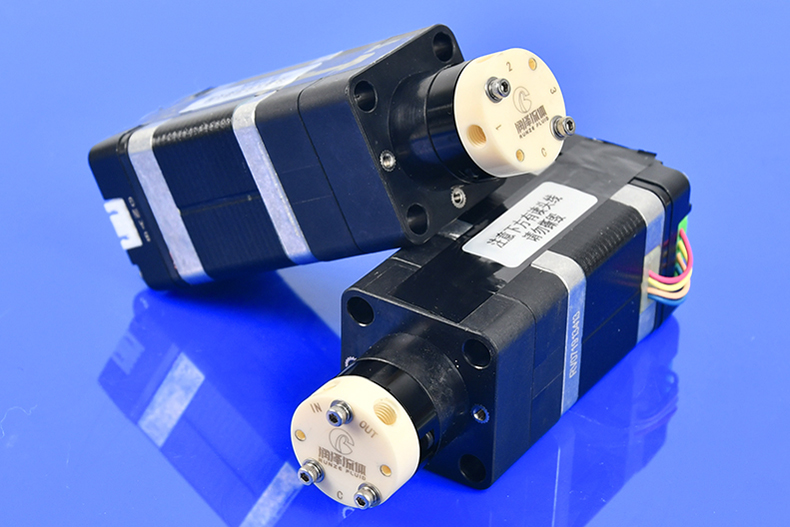

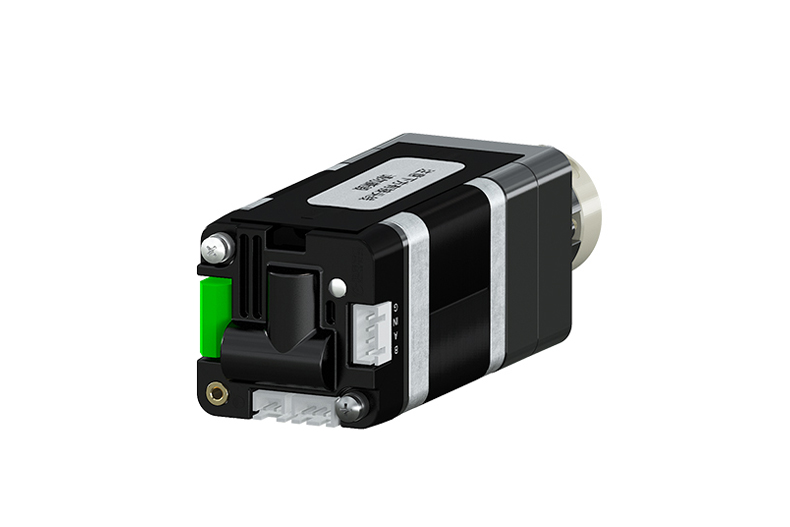

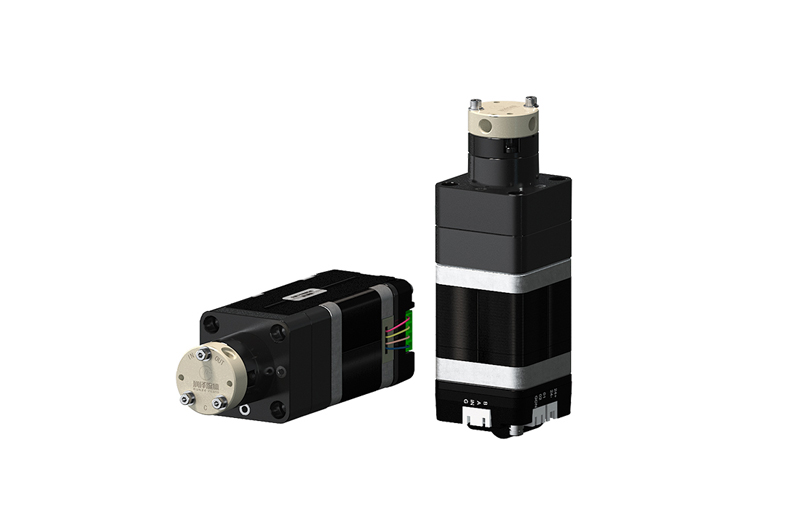

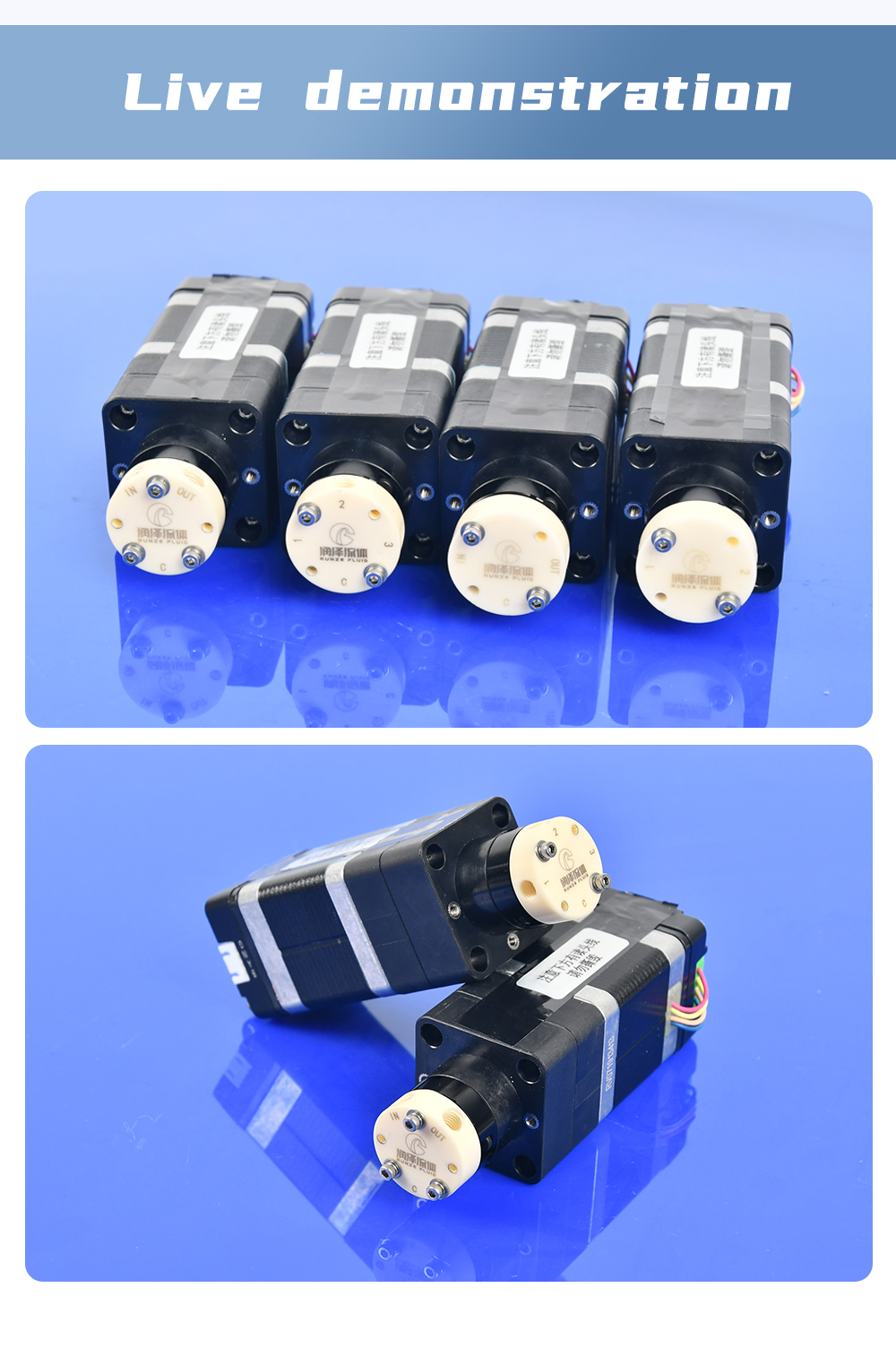

Mrv-01BM High Pressure Valve

Name: Mrv-01BM High Pressure Valve
Brand: Nanjing Runze Fluid Control Equipment Co., LTD.

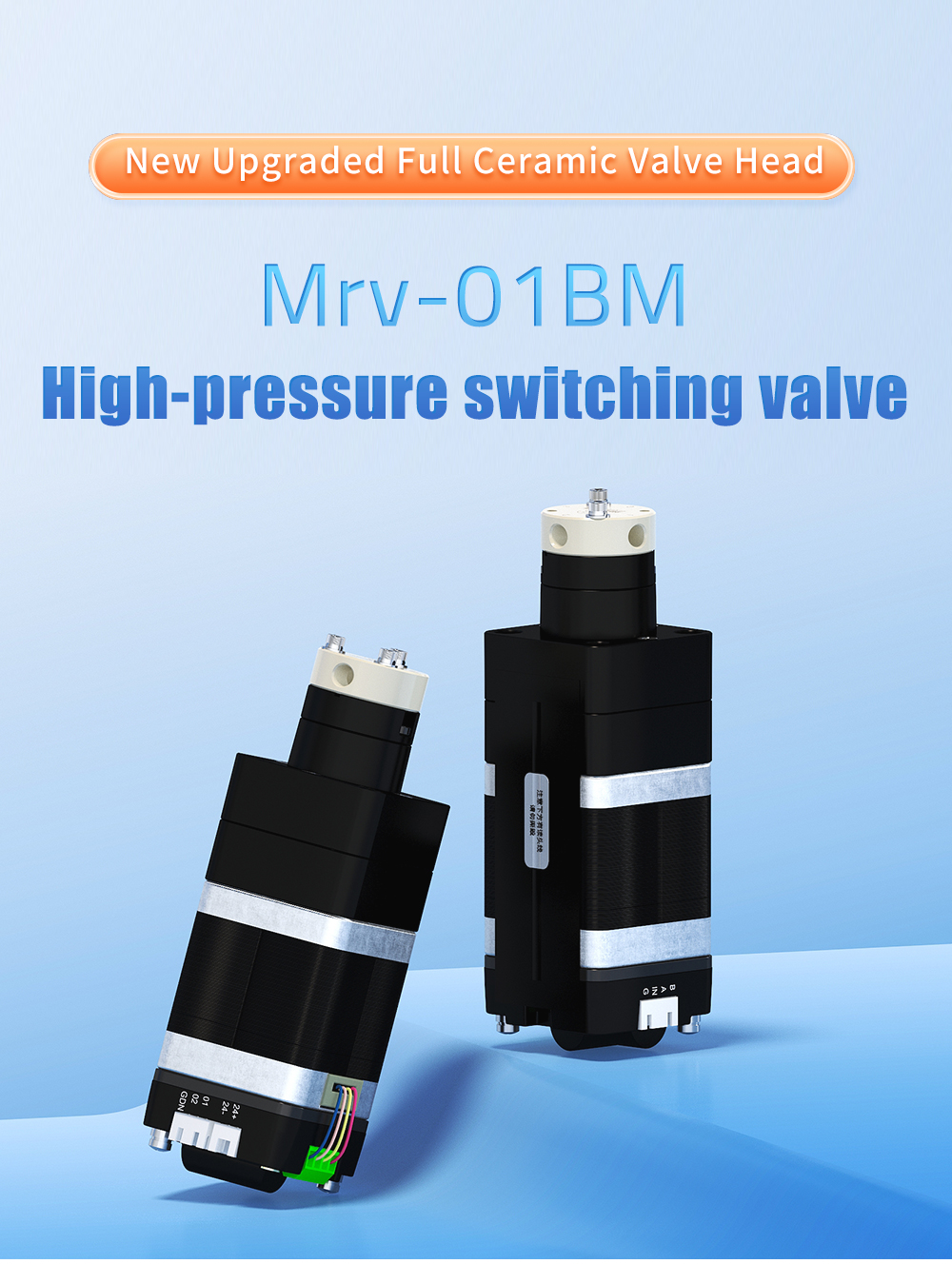

Full ceramic valve head, made of liquid contact material alumina ceramic, corrosion-resistant, hightemperature and high pressure resistant, ultra-high wear resistance, suitable for various special media

Send Mail

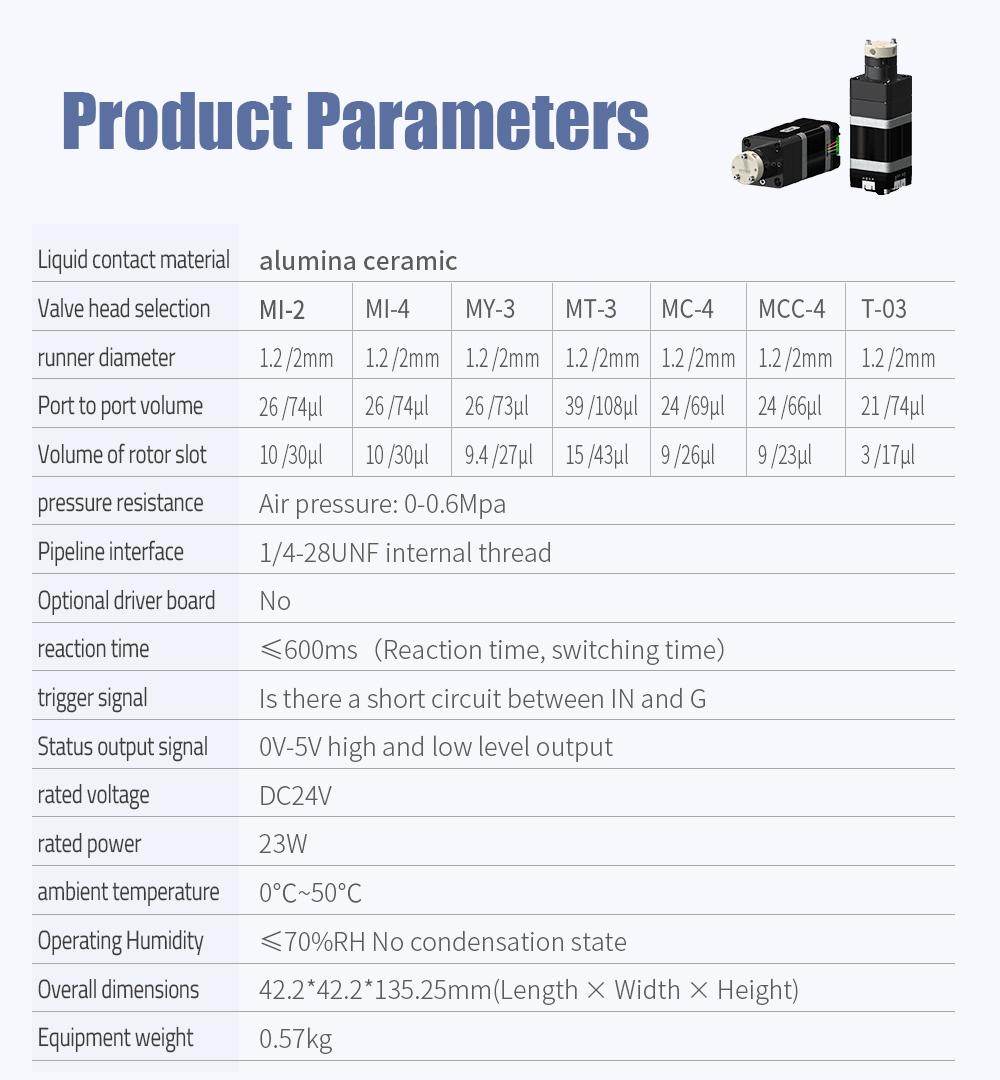

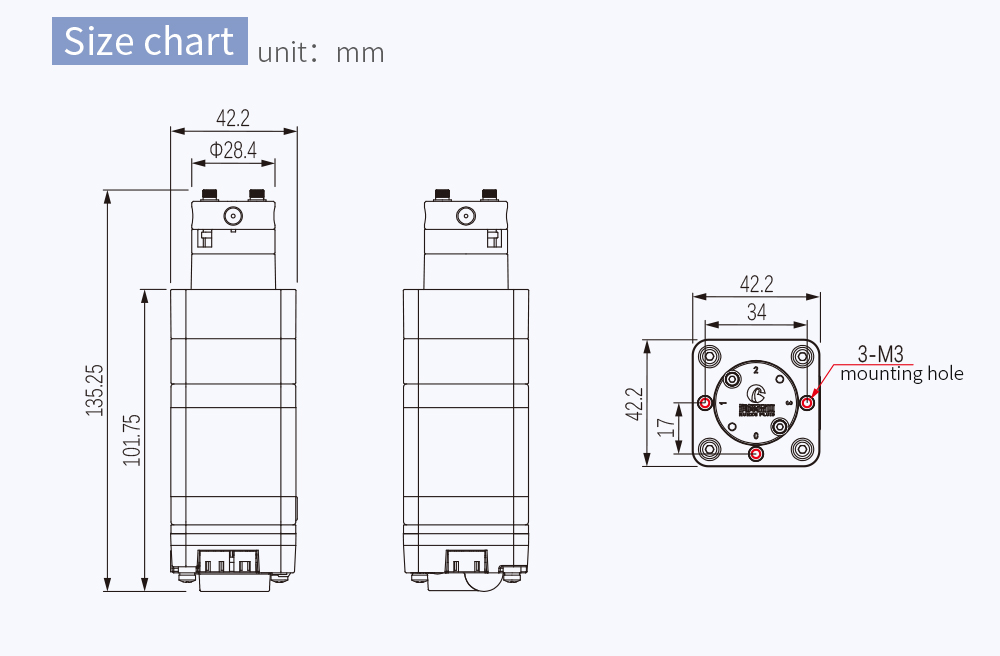

Specification of Mrv-01BM High Pressure Valve

◆ When switching flow paths, there is no liquid pulsation and no dripping at the outlet, ensuring smooth and controllable flow

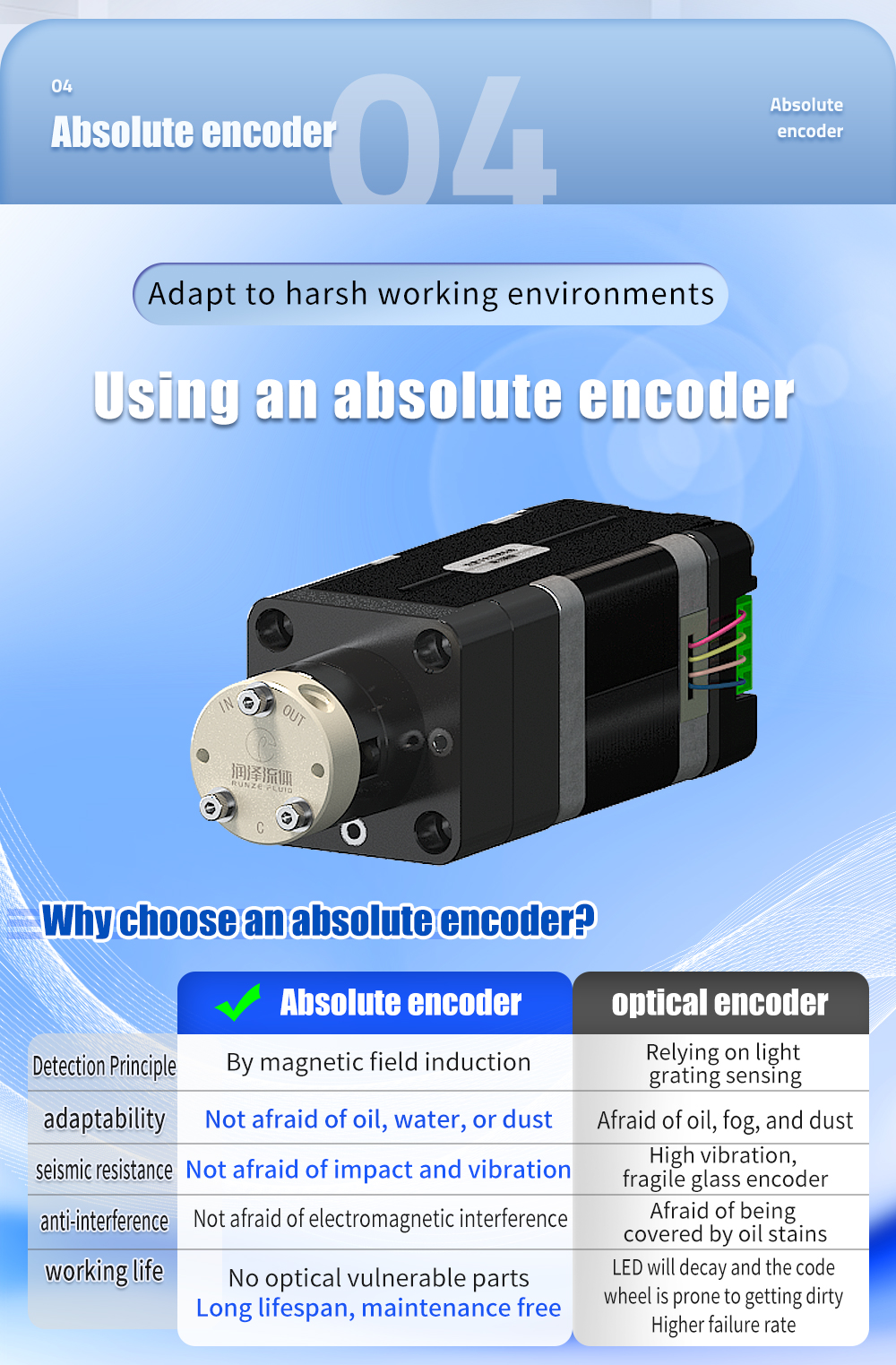

◆ Equipped with status feedback signal output, the upper computer can accurately recognize the opening and closing status of the valve body, effectively avoiding flow path failures caused by valve abnormalities
◆ Adopting a planar shear switching structure, even liquid crystallization does not affect flow path switching, significantly improving equipment stability
◆ Equipped with dual-mode control, balancing flexibility and precision:

① Communication control mode
② Trigger mode
◆ By identifying the short circuit and open circuit states between IN and G, the operation of the stepper motor can be controlled in real time, achieving fast and stable switching of the fluid path and meeting diverse scene requirements

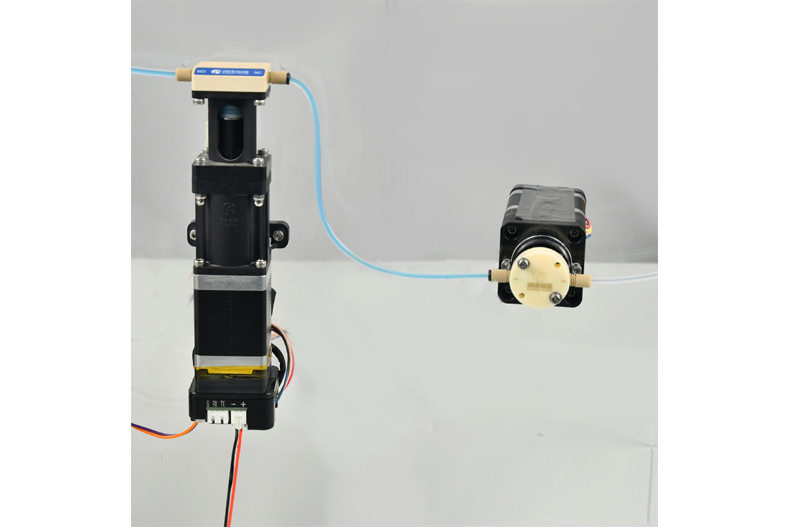

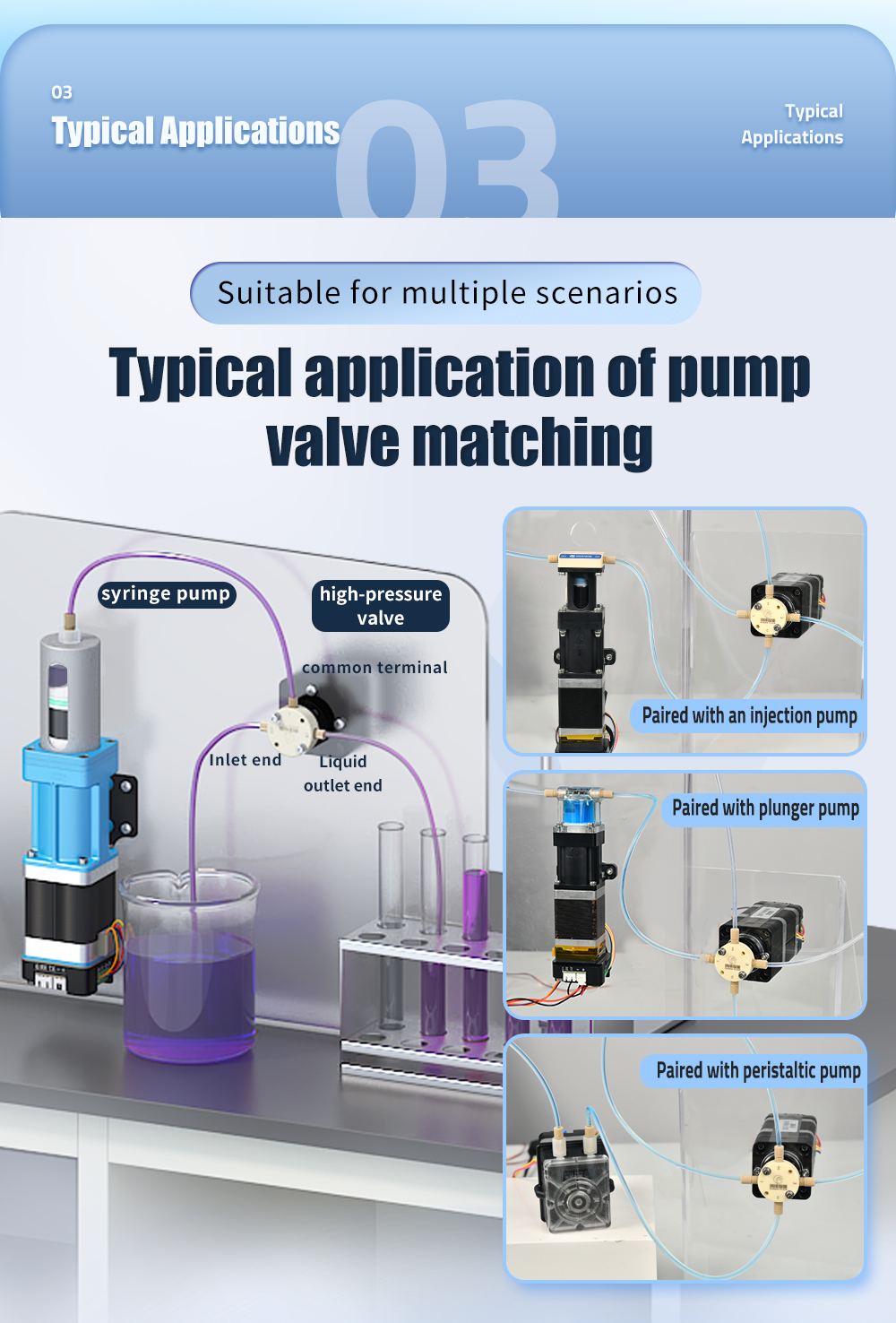

◆ It is an electric on-off displacement valve independently developed by Runze, widely used in the collection and distribution of fluid samples, suitable for environmental detection instruments, experimental analysis instruments, medical analysis instruments, chromatography instruments and other equipment
