Flangeless Fittings

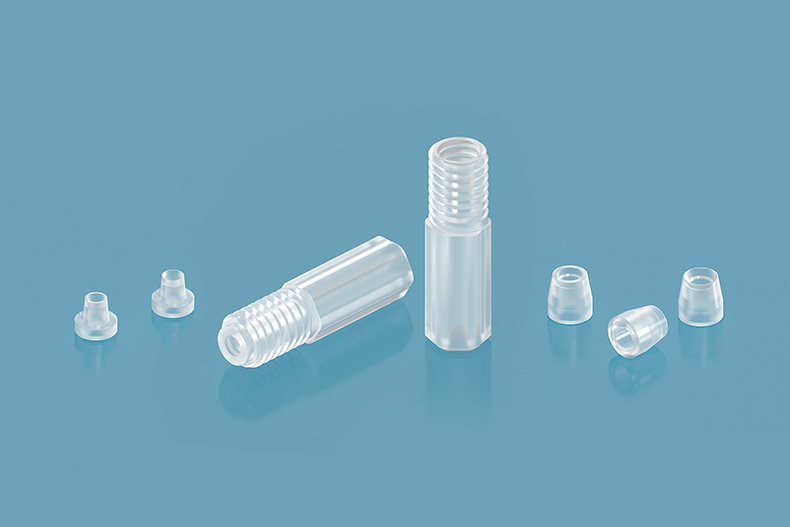

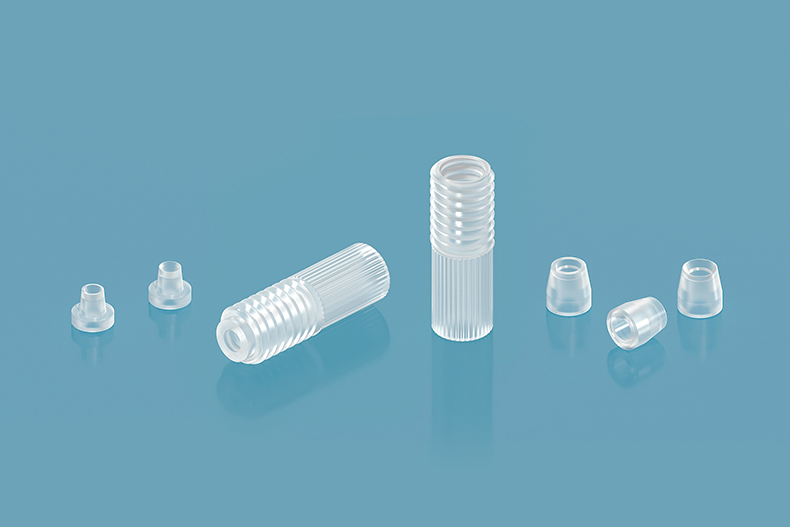

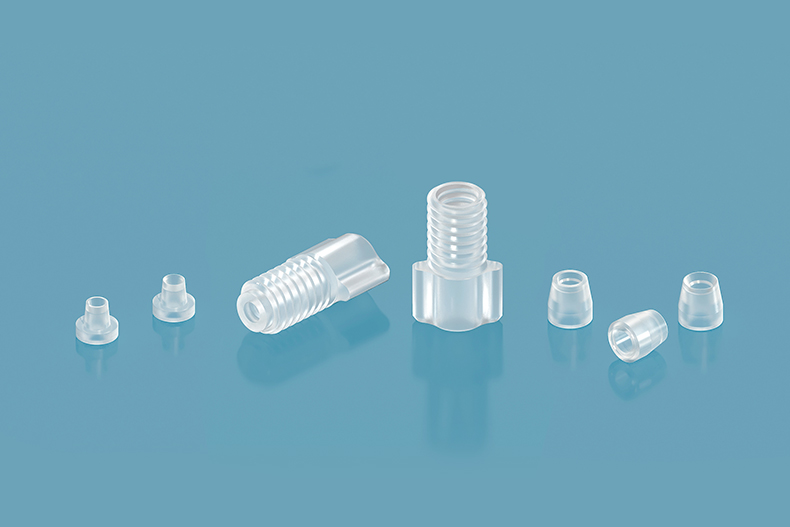

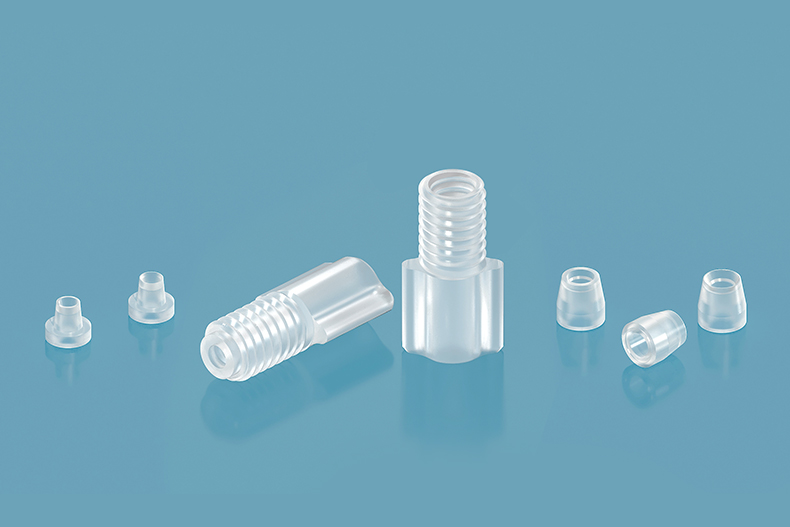

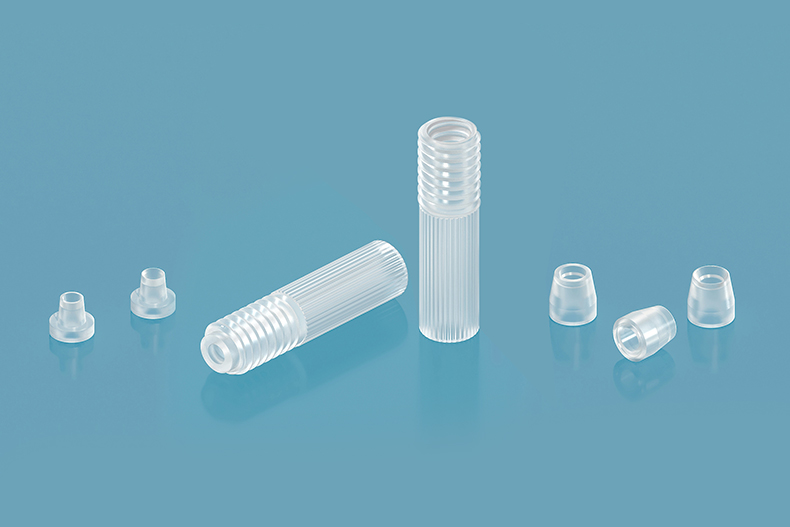

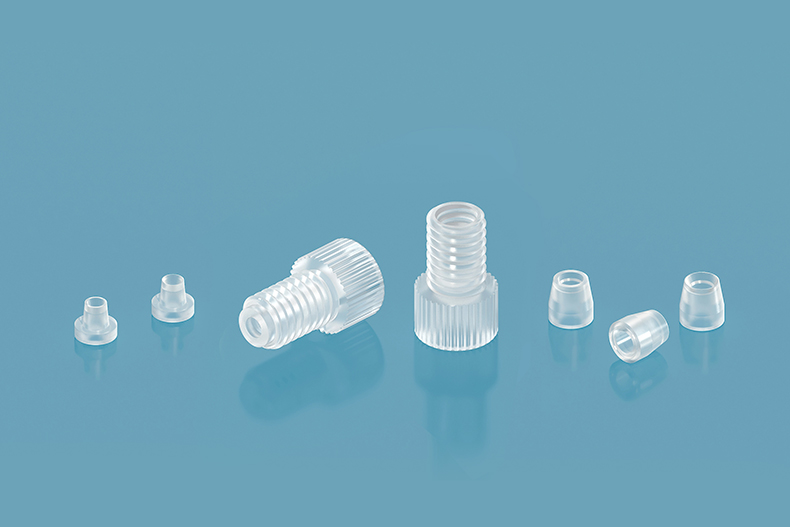

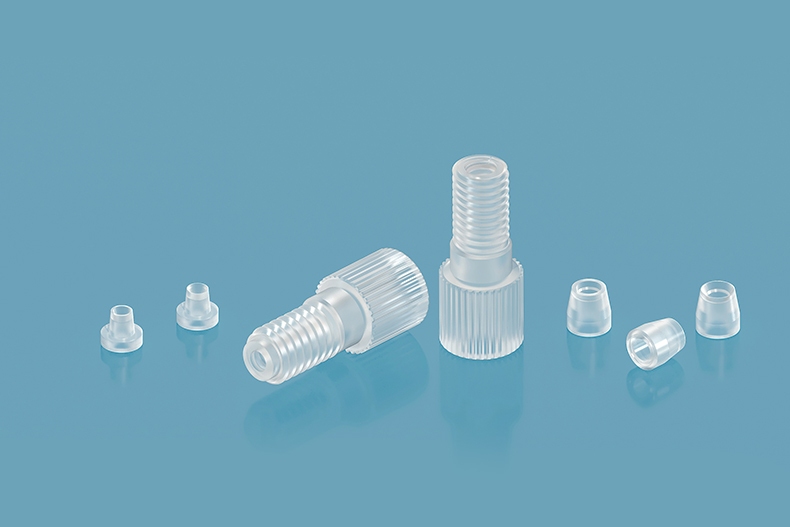

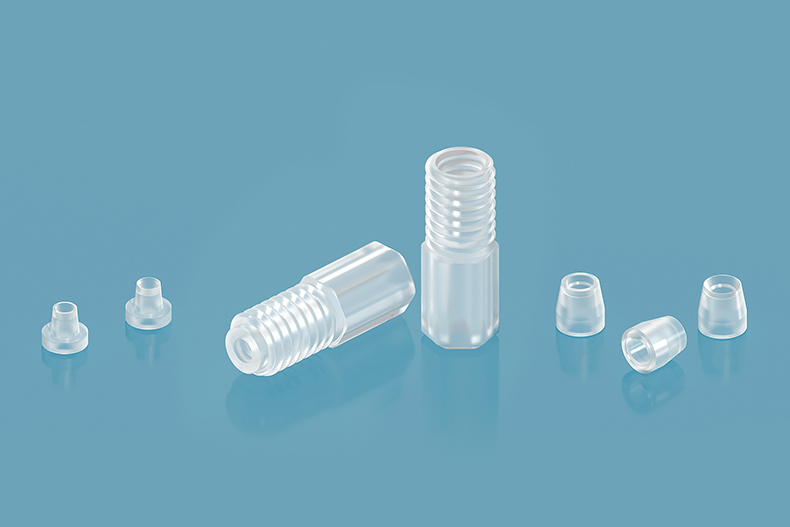

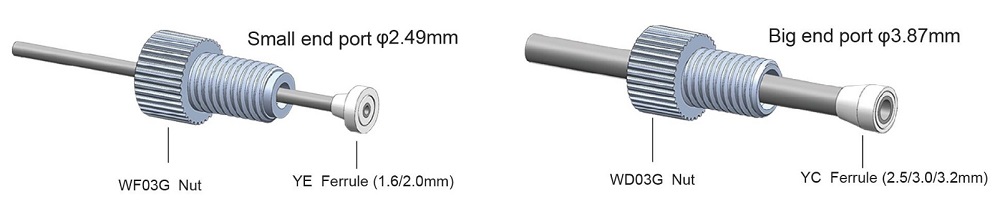

Flangeless Fittings benefits a lot for low pressure and gastight removable systems which comes with a nut and a ferrule as a unit set to connect rigid tubing of outer diameter 1.6/2.0/2.5/3.0/3.175/3.2mm into a same thread receiving port, it is very convenient to use by hand tightened without any tools and easy to mounting into fluid systems.

  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
  • Flangeless Fittings
Send Mail
Share this product:

Video of Flangeless Fittings

Specification of Flangeless Fittings



Flangeless Fittings


Model No.

Flangeless Nut

Ferrule Size

Tubing OD (mm)

B-611

WF10A

YE-020 / YE-016

2.0

1.6(1/16")

B-612

WF03G

YE-020 / YE-016

B-613

WF08BL

YE-020 / YE-016

B-614

WF08B

YE-020 / YE-016

B-615

WF05EL

YE-020 / YE-016

B-616

WF05E

YE-020 / YE-016

B-617

WF06CL

YE-020 / YE-016

B-618

WF06C

YE-020 / YE-016


Model No.

Flangeless Nut

Ferrule Size

Tubing OD (mm)

B-619

WD10A

YC-032 / YC-030 / YC-025

3.2 (1/8")

3.0

2.5

B-620

WD03G

YC-032 / YC-030 / YC-025

B-621

WD08BL

YC-032 / YC-030 / YC-025

B-622

WD08B

YC-032 / YC-030 / YC-025

B-623

WD05EL

YC-032 / YC-030 / YC-025

B-624

WD05E

YC-032 / YC-030 / YC-025

B-625

WD06CL

YC-032 / YC-030 / YC-025

B-626

WD06C

YC-032 / YC-030 / YC-025




Dimension (unit: mm)

Flangeless Fittings

Application Note of Flangeless Fittings


1. Choose 1/4-28 nut when receiving port is 1/4-28; Choose M6 nut when receiving port is M6.

2. Before connecting fittings, ensure the end of the tubing has a clean, square, burr-free cut. This is very important, as the square cut helps the tubing make full contact with the bottom of the mating port. Neglecting to properly cut the tubing could lead to dead volume, resulting in peak distortion such as fronting, tailing or broadening.

3. Two-Piece Fittings Installation Steps:

a. Slide the nut, followed by the ferrule, at least 3/16” (4.7625mm) from the end of the clean cut tubing

b. Insert the assembly into the receiving port, pushing the tubing into the port until it bottoms out.

c. Finger tighten the nut into the port until snug.

d. After several uses (especially at high pressure) the ferrule should be replaced.
