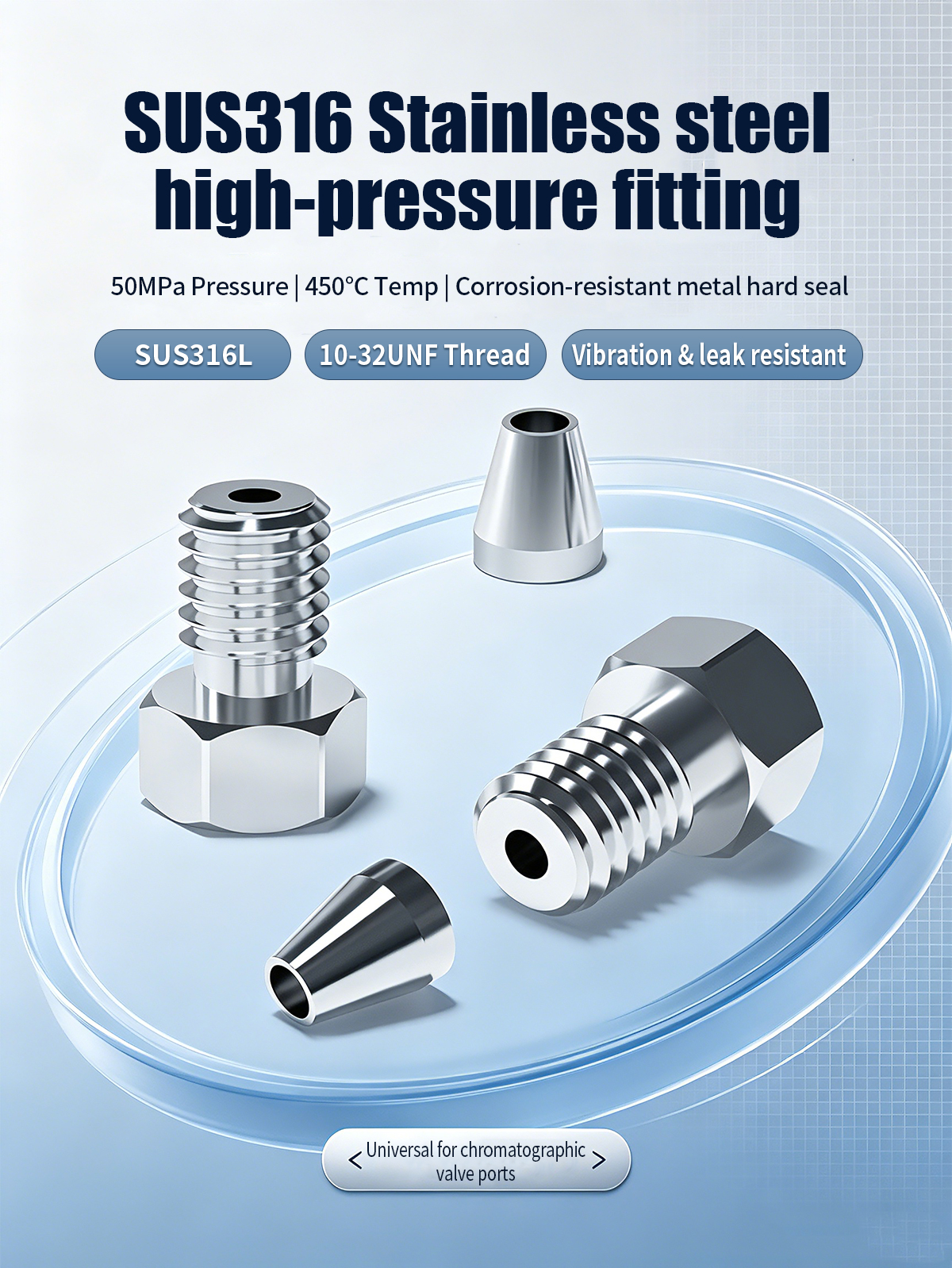

10-32 UNF Stainless Steel HPLC Ferrule Fitting

Runze SUS316L stainless steel HPLC ferrule fitting is designed for precision fluidic connections in chromatography and laboratory instruments.

Featuring a standard 10-32 UNF thread, this fitting is compatible with commonly used HPLC ports and 1/16" OD tubing systems.

The two-piece ferrule structure provides stable tube retention and reliable sealing performance for high-pressure analytical applications.

Manufactured from corrosion-resistant SUS316L stainless steel, it is suitable for demanding laboratory environments including HPLC, GC, IC, syringe pumps and fluid handling systems.

Key Features:

1. SUS316L Stainless Steel Construction

- Excellent corrosion resistance

- High mechanical strength

- Suitable for chemical laboratory applications

2. 10-32 UNF Thread Standard

- Compatible with chromatography components

- Suitable for HPLC valve ports and fluidic interfaces

- Stable mechanical connection

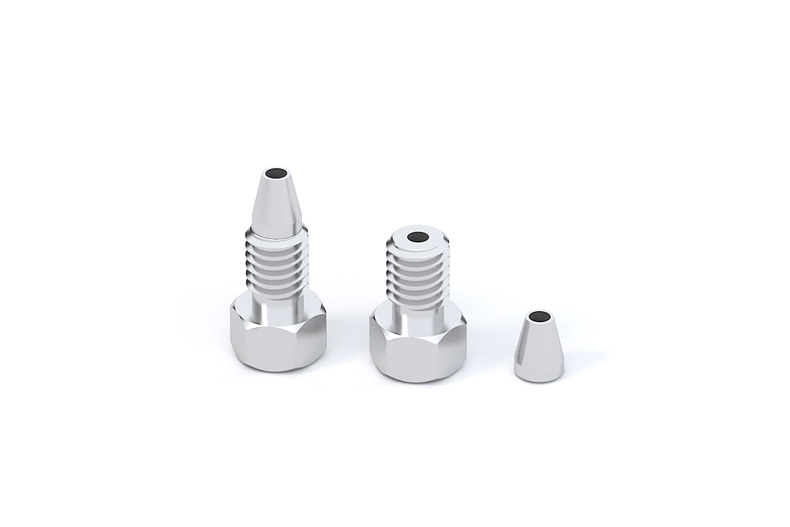

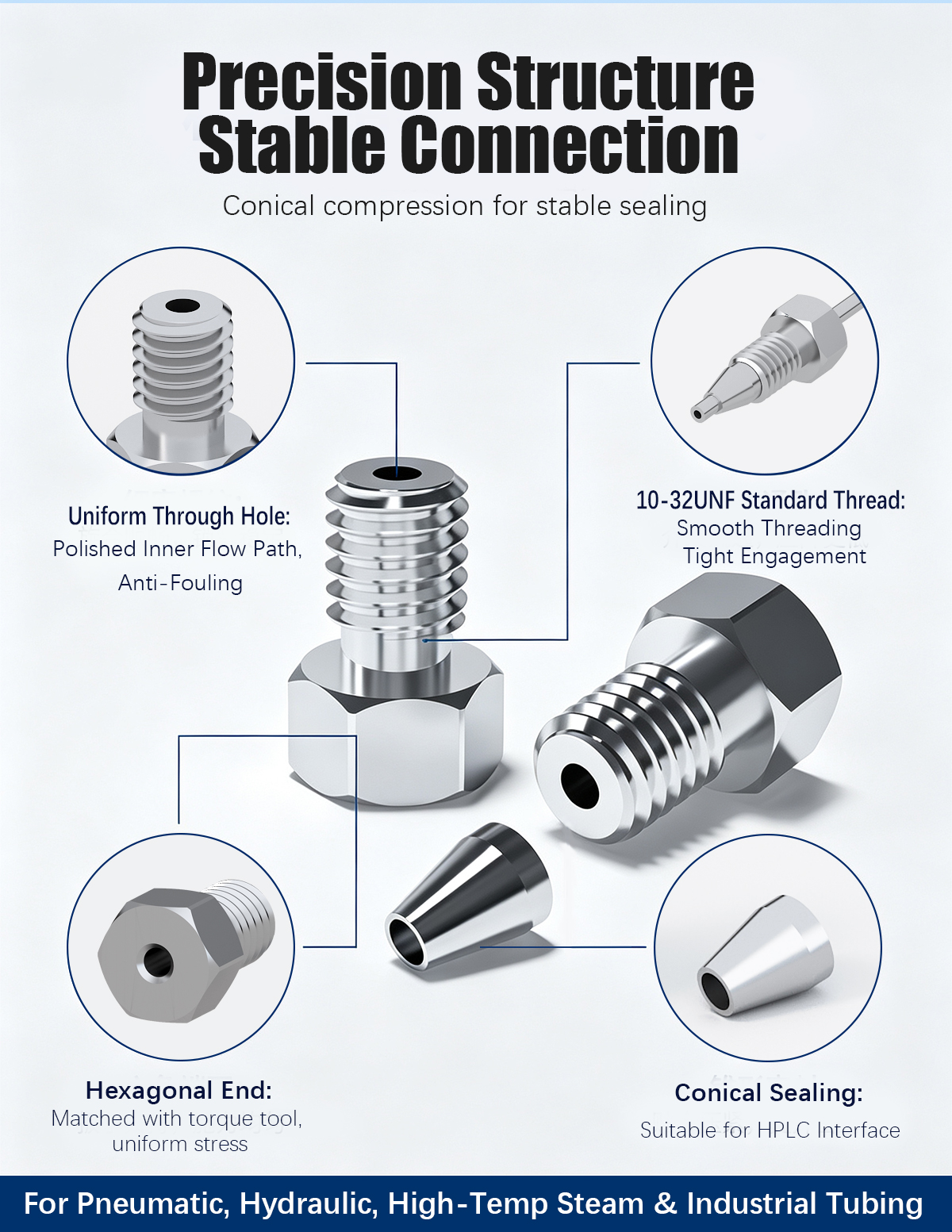

3. Two-Piece Ferrule Structure

- Front ferrule and back ferrule design

- Secure tubing grip

- Reliable sealing under pressure

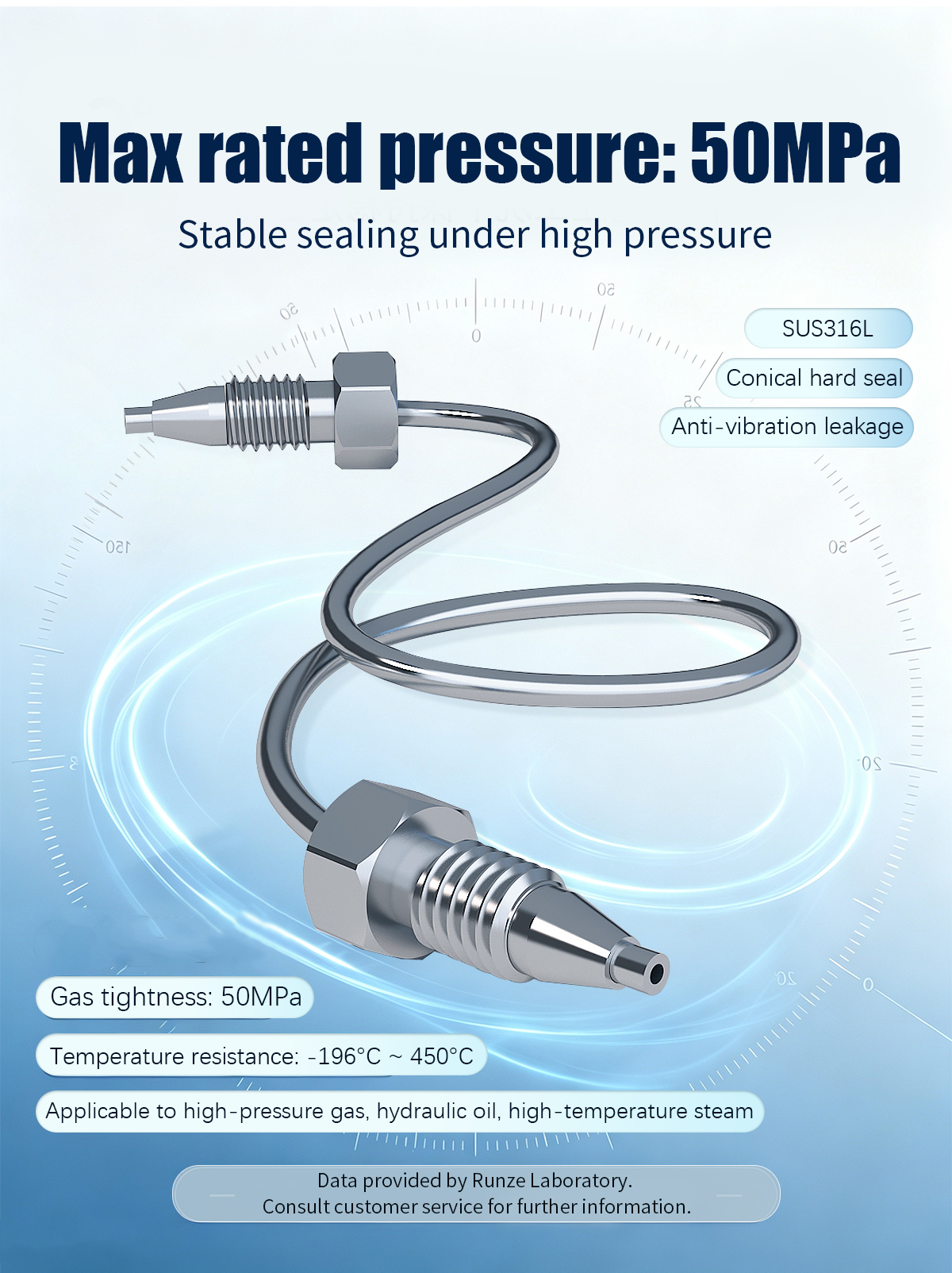

4. High Pressure Performance

- Maximum pressure rating: 50 MPa

- Suitable for high-pressure analytical systems

5. Wide Temperature Range

- Operating temperature: -196°C to 450°C

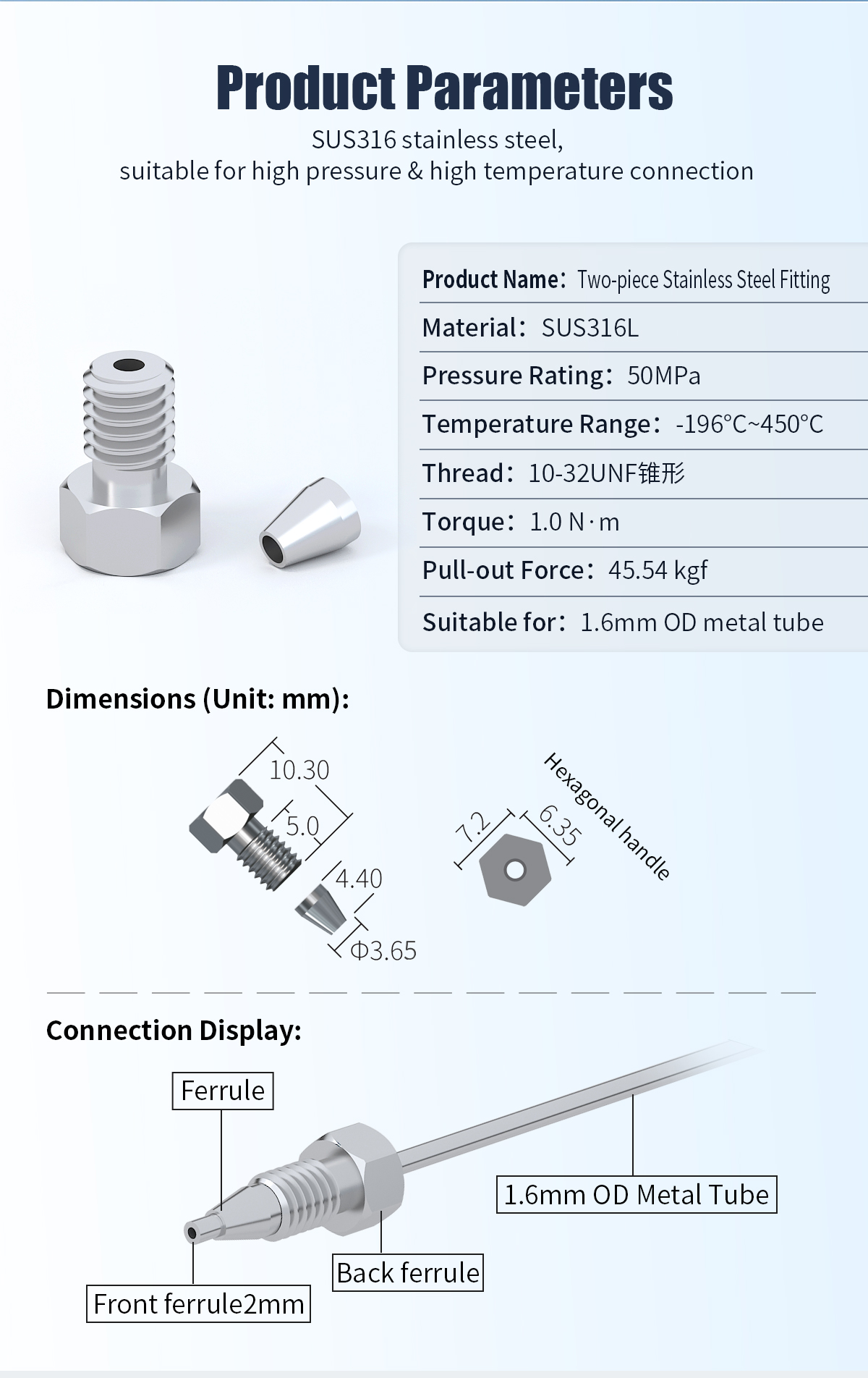

Technical Specifications:

Product Type: HPLC Stainless Steel Ferrule Fitting

Material: SUS316L Stainless Steel

Thread: 10-32 UNF

Tubing Size: 1/16" OD

Pressure Rating: 50 MPa

Temperature Range: -196°C ~ 450°C

Sealing Method: Conical Metal Seal

Ferrule Type: Two-piece Ferrule

Applications:

- HPLC Systems

- Ion Chromatography Systems

- Gas Chromatography Systems

- Injection Valves

- Column Connections

- Micro Syringe Pumps

- High Pressure Fluidic Systems

- Laboratory Automation Equipment

FAQ:

Q: What thread type does this HPLC fitting use?

A: This fitting uses a standard 10-32 UNF thread commonly used in chromatography fluidic systems.

Q: What tubing size is compatible?

A: The fitting is designed for 1/16" OD tubing connections.

Q: What material is the fitting made from?

A: The fitting is manufactured from SUS316L stainless steel for corrosion resistance and mechanical strength.

Q: What is the maximum pressure rating?

A: The maximum rated pressure is 50 MPa under suitable installation conditions.
