Peristaltic Pump Price

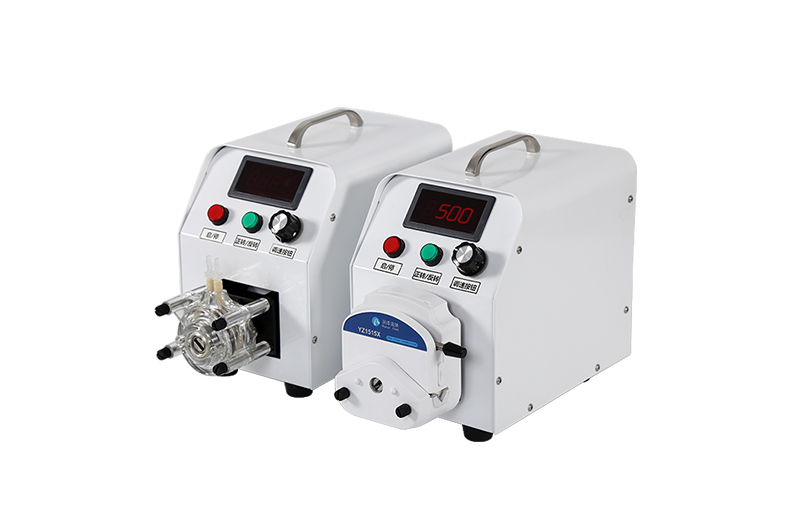

Peristaltic pump SR400 it is available with SN series and YZ series pump heads in high flow rate, LCD screen shows the current pumping speed to help users control speed flexibly, foot pedal is optional when used the pump as infiltration liposuction pump, it is a high cost performance pump for liquid transfer in many fields.

  • peristaltic pump price
  • lab peristaltic pump
  • laboratory peristaltic pump
  • oem peristaltic pump
  • peristaltic pump price
  • lab peristaltic pump
  • laboratory peristaltic pump
  • oem peristaltic pump
Send Mail
Share this product:

Video of Peristaltic Pump Price

Specification of Peristaltic Pump Price


Model No.

SR400-YZ1515X/YZ2515X/SN15/SN25

Pump Roller

SST 3/6 rollers

Pump Head

ABS engineering plastic (YZ)

PC engineering plastic (SN)

Fast Tubing

YES

Pump Color

White/Black (YZ)

Transparent (SN)

Motor Type

Stepper motor

Motor Speed

0-400rpm

Flow Range

0-1700ml/min

Tubing Size

ID1.6-8.0mm  WT1.6-2.5mm  OD≤11.4mm

Tubing Life

Silicone≥200H  BPT Rubber≥1000H

Pressure Rating

Up to 2 bar(30psi)

Working Environment

0-40℃,<80% non-condensing

Max DB

65db

Suction

5m

Head

8m

Dimension (L*W*H)

301*151.5*233mm

Net Weight

5508g(3 roller)/5608g(6 roller)


Fitting Peristaltic Tubing of Peristaltic Pump Price




Material

Features

Service Life

Peristaltic Pump Price

Silicone

Food grade, High flexibility         Temp. range -4℃ - +180℃       For non-corrosive liquid

≥200h

Peristaltic Pump Price

Pharmed BPT

Saint-Gobain, FDA standard     Temp. range -51℃- +132℃           Anti weak acid and alkali

≥1000h

Peristaltic Pump Price

Viton

MasterFlex, FDA Standard       Temp. range -20℃- +260℃      Anti strong acid and alkali

≥1000h



1. Tubing life measured by pumping pure water under continuous working at the room temperature 20℃ and no extra pressure until it cracks.

2. Tubing life vary from different medium, motor speed, working environment, the lower motor speed helps to extend the service life of tubing.

3. Please replace new pump tube regularly to achieve higher precision liquid transfer.


Flow Rate Instruction (YZ1515X)

Tubing

Speed       (rpm)

Tubing size

(ID*WT: mm)

3 Roller Flow rate (ml/min)

6 Roller Flow rate (ml/min)

Rubber tube

0-400rpm

1.6*1.6

0-113

0-88

3.2*1.6

0-462

0-347

4.8*1.6

0-966

0-612

6.4*1.6

0-1447

0-804

8.0*1.6

0-1887

0-1332

Silicon tube

1.6*1.6

0-117

0-92

3.2*1.6

0-491

0-375

4.8*1.6

0-1020

0-652

6.4*1.6

0-1494

0-848

8.0*1.6

0-1700

0-1400


Function of Foot Pedal

Step 1 Connect the plug into power supply AC110-240V

Step 2. Connect the foot pedal into the interface at back of the pump

Step 3. Press the power (main) switch at back of the pump

Step 4. Press the red ON/OFF button at front of the pump to start the pump, at this time you can see shaft of pump is turning

Step 5. You can gently turn the SPEED button at front of the pump to adjust the speed


Remark 1: The pump must be started working under lower speed,so SPEED button must stay at nearly middle (or less at CCW direction) position before start working

Remark 2: Foot pedal only works when the red button at front of the pump staying ON (Foot pedal will NOT works when the red button at front of the pump staying OFF)

Remark 3: Foot pedal must be connected with the pump, or the buttons on the pump will lose its functions

Remark 4: SPEED adjustment only works when pump is working (shaft of pump is turning)(SPEED will not be adjustable when pump is stopping)

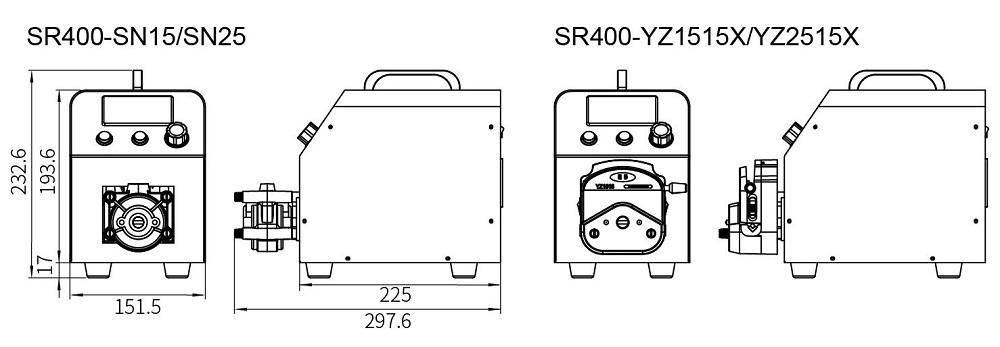

Dimension (unit: mm)


Peristaltic Pump Price
